Product Item:

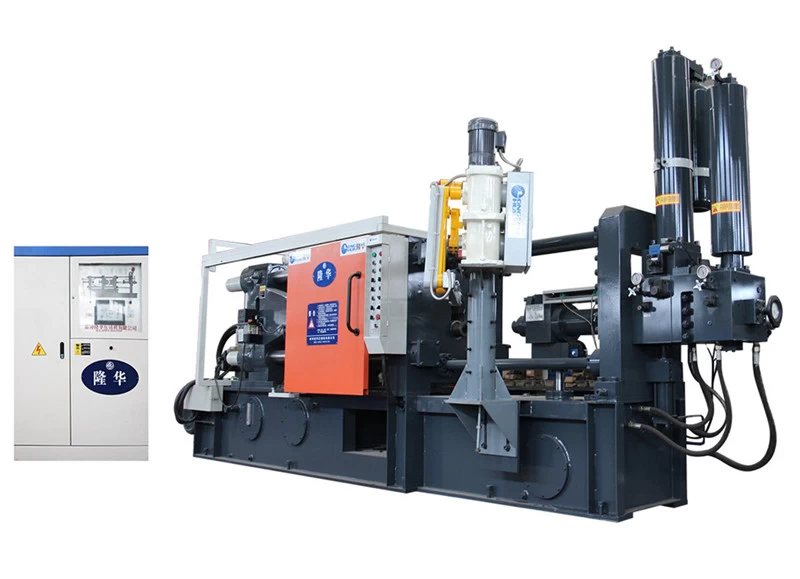

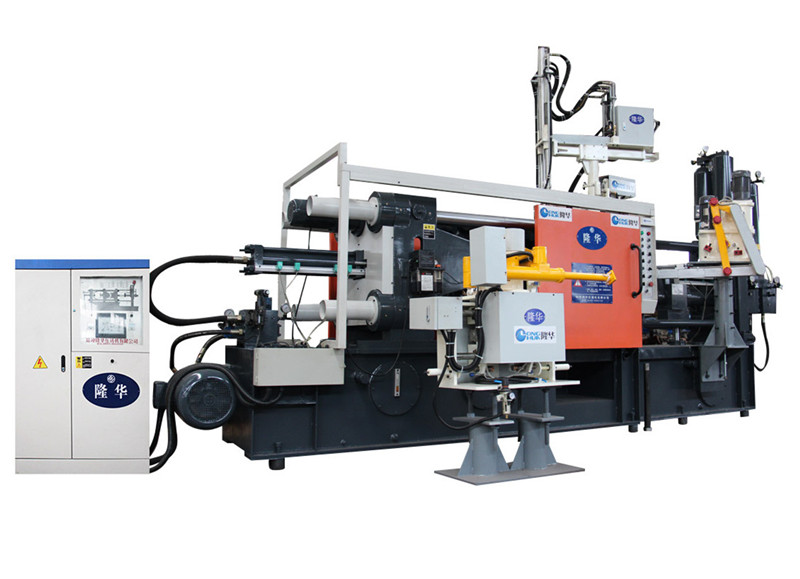

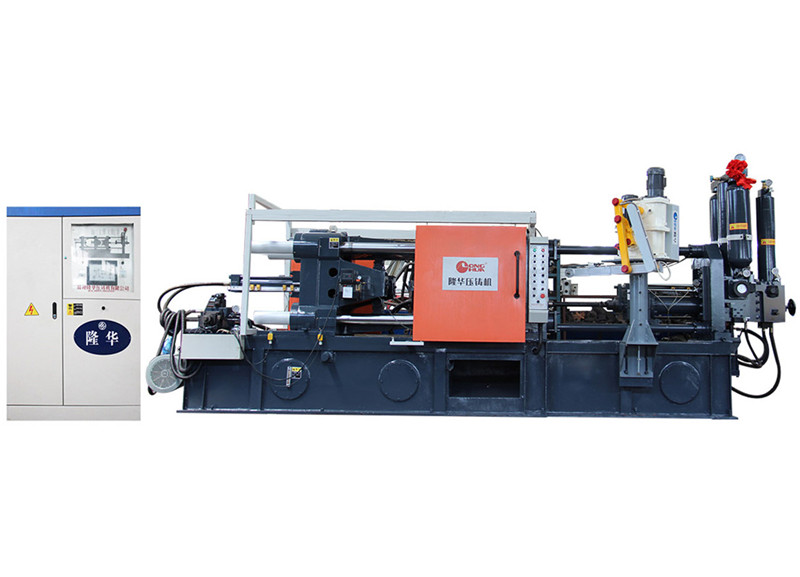

Vacuum die casting machines price cheap machines(LH-280T)
LH SERIES OF STANDARD PARAMETER TABLE (LH-280 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
14
|
|
CLAMPING FORCE
|
KN
|
2800
|
|
SPACE BETWEEN TIE BARS
|
MM
|
560*560
|
|
TIE BAR DIAMETER
|
MM
|
￠110
|
|
DIE OPENING STROKE
|
MM
|
400
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
240
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
140
|
|
INJECTION POSITION
|
MM
|
0 -- 160
|
|
PLUNGER DIAMETER
|
MM
|
￠50----￠70
|
|
INJECTION STROKE
|
MM
|
400
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
143/99/73
|
|
CASTING FIANGE PROTRUSION
|
MM
|
12
|
|
CASTING FIANGE DIAMETER
|
MM
|
110
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
700
|
|
LNJECTION WEIGHT(AL)
|
KG
|
3.2
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
250～650
|
|
EJECTOR FORCE
|
KN
|
140
|
|
EJECTOR STROKE
|
MM
|
120
|
|
MOTOR CAPACITY
|
KW
|
15
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
6.4*1.7*2.8
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
12
|
|
OIL TANK CAPACITY
|
L
|
750
|
PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE

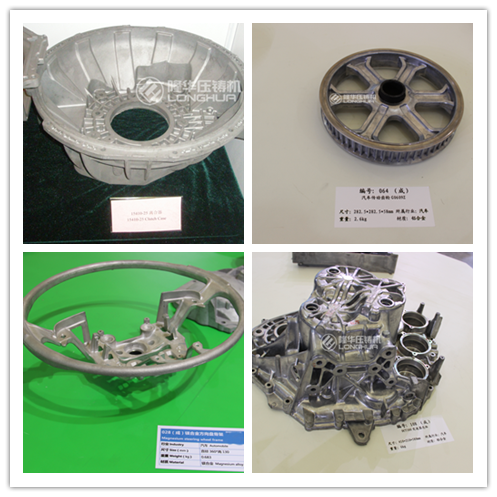

Die casting product display
This die casting machine is suitable for aviation, ships, automobiles, electrical appliances, instrumentation, petrochemical, daily hardware and other industrial departments, mass production of aluminum, zinc, copper and other small non-ferrous alloy die casting.
