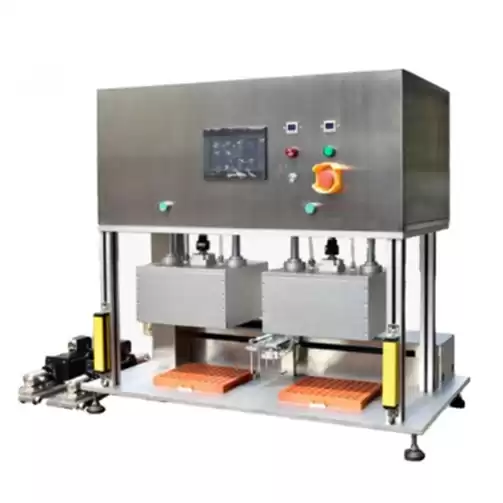

Vacuum Filling System Electrolyte Filling Machine for Battery Electrolyte Injection
1 TMAX-JK-ZYJ-02 Vacuum linear filling machine is used for lithium battery electrolyte injection with high precision and simple operation.
2 This vacuum filling machine can be used for various cylindrical cell cases including CR123,18650 26650, 32650 and AA with changing clamps.
SPECIFICATIONS:
|
Model
|
Vacuum Filling Machine TMAX-JK-ZYJ-02
|
|
Source voltage
|
110V-220V AC, 50/60Hz Single Phase
|
|
Power
|
1500W
|
|
Warranty
|
One year limited and lifetime support
|
|
Suitable battery model
|
18650 / 26650 / 32650, For all kinds of cylindrical battery
|
|
Advantages
|
1 Customized die for all kinds of cylindrical cell types is available according to request
2 Adopt PLC and man-machine interface centralized control, easy operation.
3 Filling speed and times can be set
4 All the parameters such as vacuum time, air input time,
filling quantity and battery distance can be adjusted freely.
5 Vacuum box for static control independently
|
|
Vacuum filling accuracy
|
±0.02g
|
|
Vacuum filing time
|
1-10times adjustable
|
|
Vacuum filling quantity
|
0-7g
|
|
Vacuum degree
|
-0.1Mpa
|
|
Air supply
|
0.3-0.6MPa
|
|
Working clamps
|
18650 clamps battery tray 10 rows 8 columns (It can be customized)
|
