Item
|
Parameter
|
|

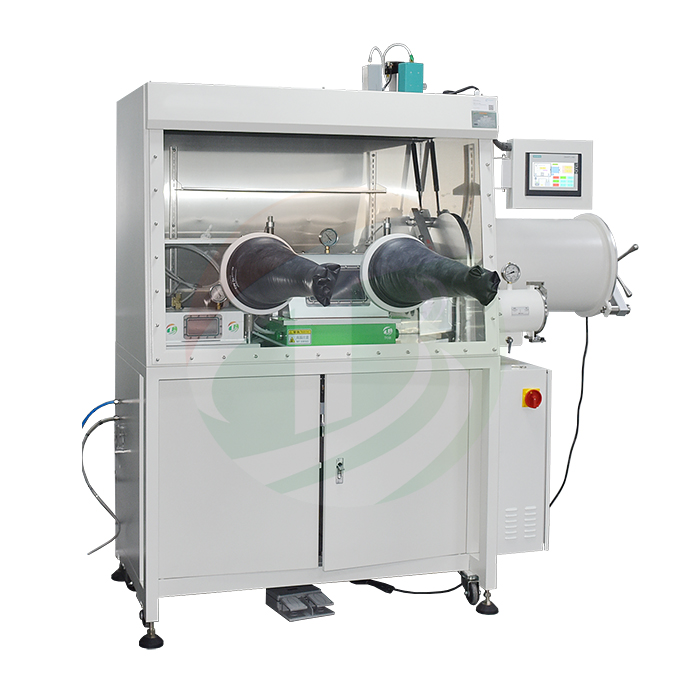

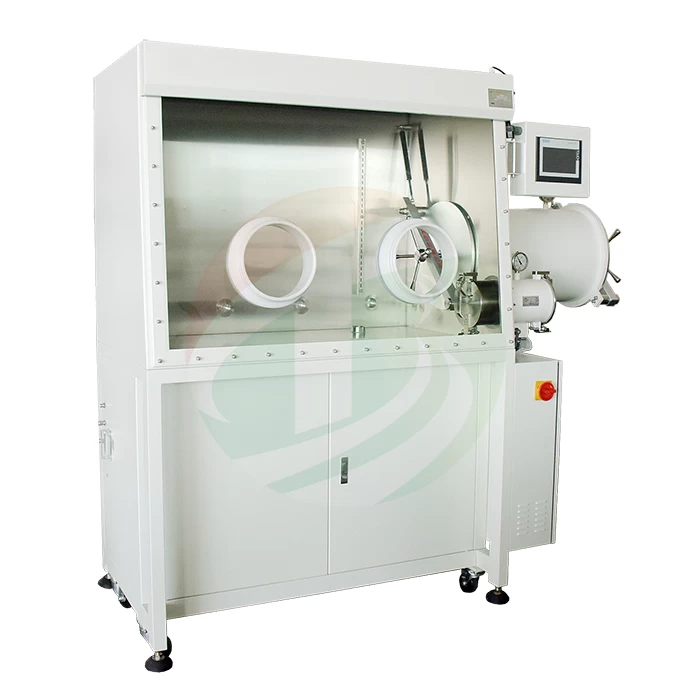

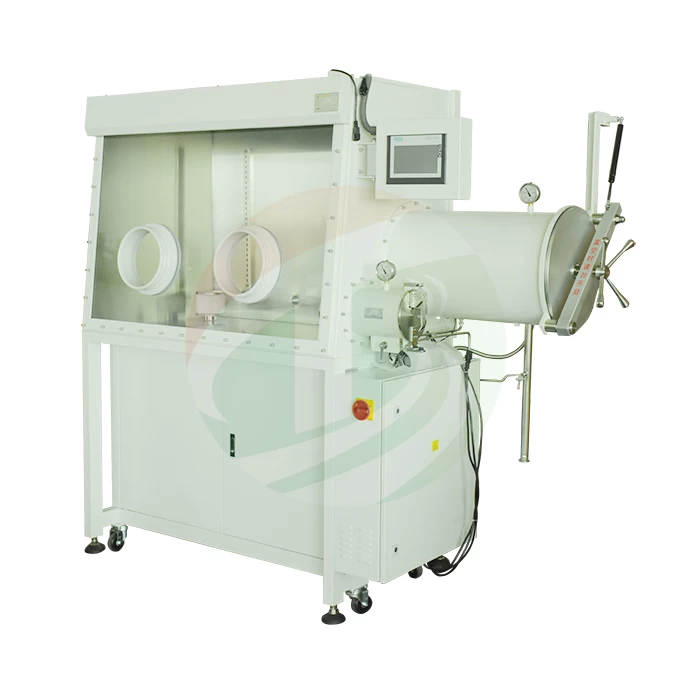

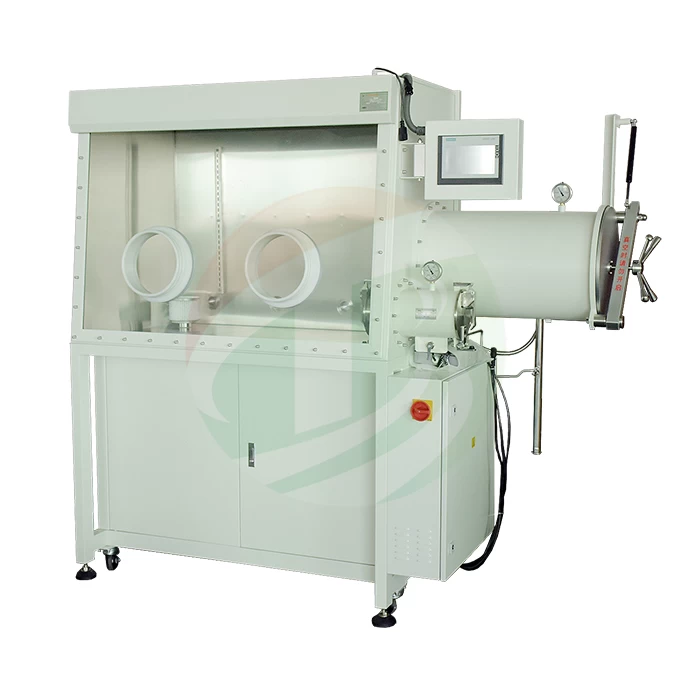

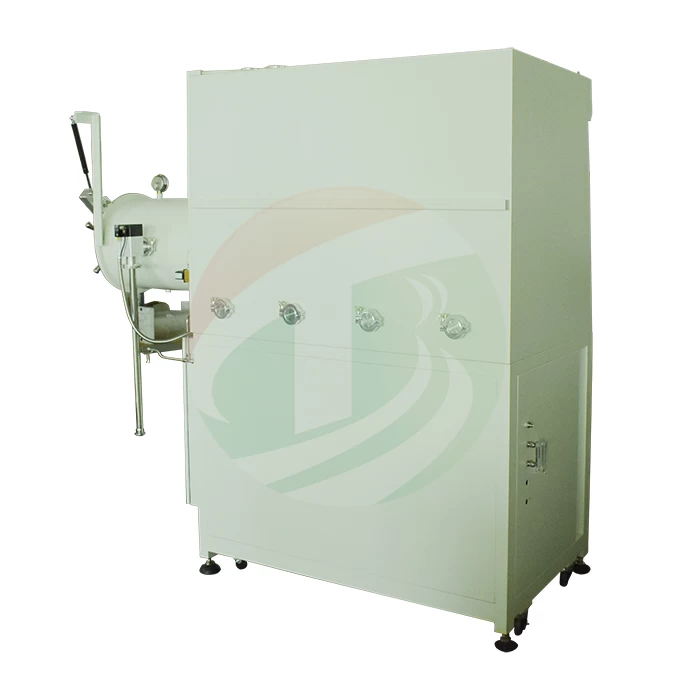

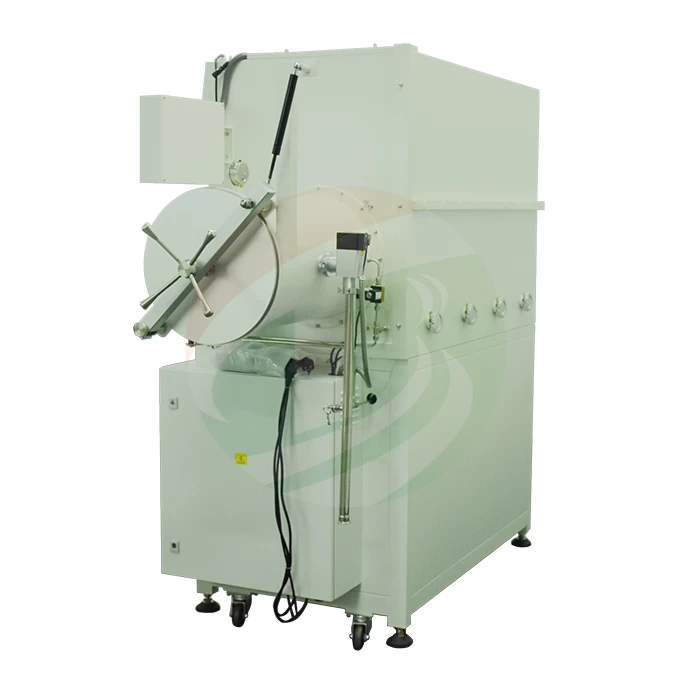

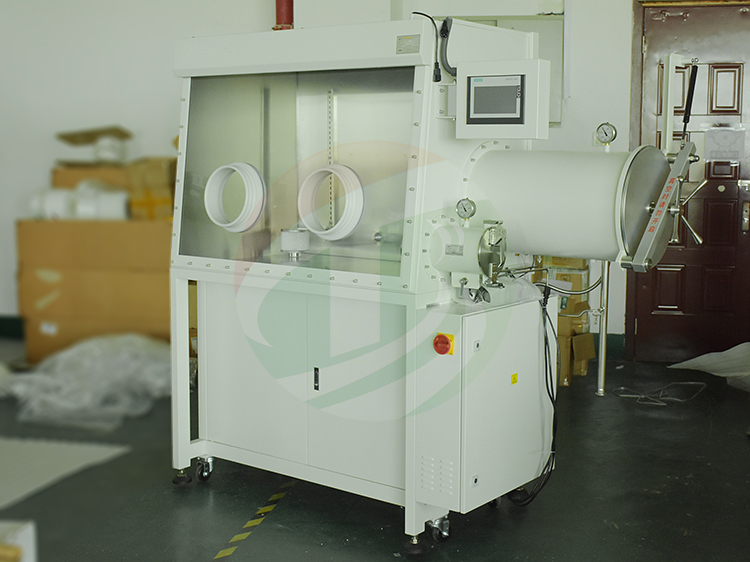

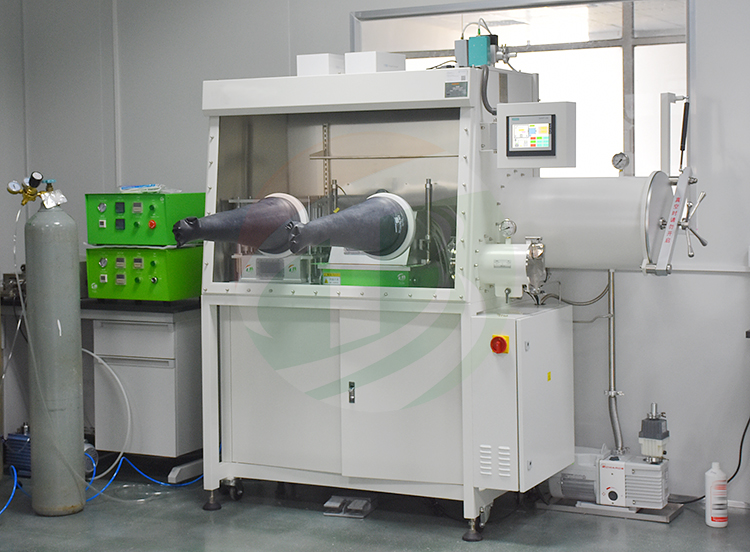

Glove box
|
Box
|
Box size: (L*W*H)=1220×750×900mm
Box material: stainless steel 304, thickness 3mm
Inner surface: stainless steel wire drawing treatment
Outside surface: paint, white
|
|
Front window
|
Tilt windows, transparent tempered safety glass, thickness 8 mm
|
|
Glove ports
|
The material is polyoxymethylene, O-ring seal, self-lubricating performance, easy to maintain, and good sealing performance
|
|
Gloves
|
Butyl rubber, diameter 8", length 32"
|
|
Filter:
|
0.3 microns, a gas inlet and a gas outlet
|
|
Shelf
|
Stainless steel, 2 layers
|
|
Lighting
|
LED lights, installed in front of each glass window
|
|
Connector
|
Standby interface 3pcs, DN 40 KF, Power interface 1pc (220V)
|
|
Bigger transitive cabin
|
Chamber
|
Size: diameter 360mm, length 600mm
Material: 304 stainless steel
Surface: inner surface wire drawing process, outer surface painting (white)
|
|
Accessary
|
Sliding tray: 304 stainless steel
Door: double door, anodized aluminum material, thickness 10mm, vertical operation, with lifting mechanism
Pressure gauge: Analog display
|
|
Control
|
Solenoid valve touch screen automatic operation
|
|
Smaller transitive cabin
|
Chamber
|
Size: diameter 150mm, length 300mm (100mm length into the glove box)
Material: 304 stainless steel
Surface: inner: wire drawing process, outer: painting (white)
|
|
Accessary
|
Standard configuration: small cabin tray
Door: double door, thread lock
Pressure gauge: Analog display
|
|
Control
|
Manual valve manual operation
|
|
Gas purification circulation system
|
Purification column
|
Function: gas sealed, remove water, remove oxygen
Container material: 304 stainless steel
Purification materials: copper catalyst: 5kg, molecular sieve: 5 kg
Purification capacity: oxygen: 60L, water: 2Kg
Water and oxygen indicators: less than 1ppm
|
|
Circulatory system
|
Working gas: nitrogen, argon
Recycling capacity: integrated fan flow 90m³ / h, install frequency conversion
|
|
Regeneration
|
Operation: PLC automatically controls the regeneration process
Regeneration gas: working gas mixed with hydrogen gas, (hydrogen 5-10%)
|
|
Vacuum pump
|
8m³ / h, rotary vane pump, with oil mist filter, air vibration control
|
|
Valves
|
Main valve: DN 40 KF, electrically operated angle valve
Control valve: electromagnetic integrated valve (stainless steel integrated valve base, single column for the six valve integration)
|
|
Control System
|
Function
|
Including self-diagnosis, power-off self-starting characteristics, with pressure control and adaptive function
Automatic control, cycle control, password protection
|
|
Pressure control
|
Control box, transition chamber pressure, cabinet working pressure +/- 10mbar can be set freely, beyond +/- 12mbar system automatic protection
|
|
Pedal
|
Control the box pressure, easy to operate boost and buck
|
|
Display system
|
Using Siemens PLC touch screen, display running status, box pressure, system records etc
|
|
Vacuum system control
|
Vacuum pump, can be manually or through the PLC to start, flow 8m³/h, vacuum of the transition chamber, and keep the box pressure balance, vacuum pump limit vacuum ≤ 2x10-1pa
|
|
Optional components
|
Water analyzer
|
Measuring range: 0 ~ 500ppm
A wide range of applications, especially for lithium manufacturing and metal organic and other users, the water probe can be cleaned by the regeneration process to restore the initial state, can be reused
|
|
Oxygen analyzer
|
Measuring range: 0 ~ 1000ppm
The use of ZrO2 sensor, to avoid the fuel cell life is short, and avoid the problem of it can not be exposed in the air
|
|
Organic solvent Adsorber
|
Size: diameter 136mm, height 256mm, filled with 2kg activated carbon, placed inside the box, can quickly replace the material, and does not destroy the high purity atmosphere
|
