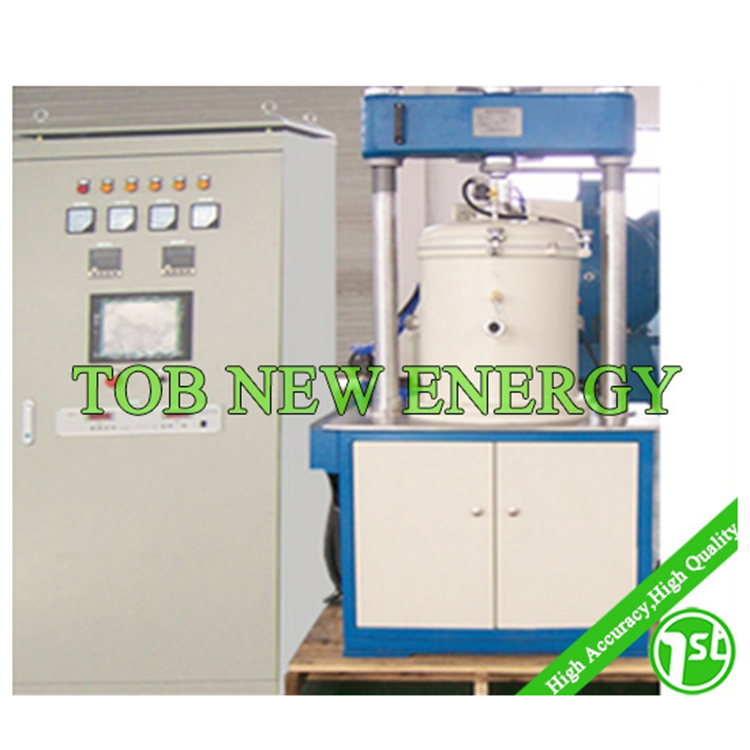

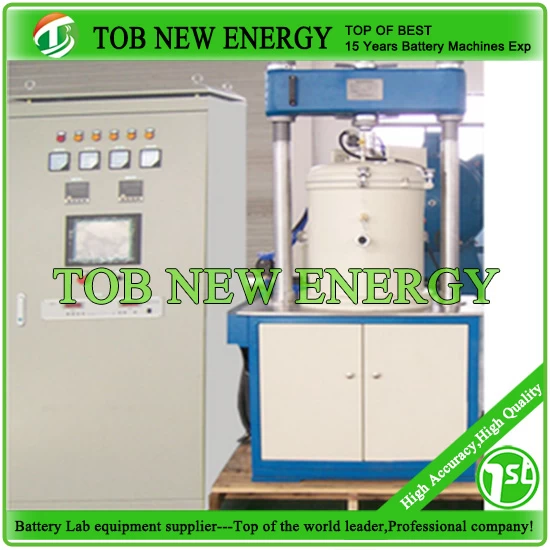

High Temperature Vacuum Furnace For Materials Hot Pressing Sintering Process Under Vacuum Condition
SPECIFICATIONS
This Vacuum Furnace is cycle operation type, widely used in functional ceramics, optical material, composite material, hard alloy, powder metallurgy material Hot Pressing Sintering Process under high temperature condition, it can also be used in hot forming sinter with charging protection situation.
|
Model
|
Vacuum Hot Pressing Furnace TOB-VHPF-LAB
|
|
Limited cold vacuum degree
|
5×10﹣3Pa
|
|
Heating temperature
|
2000℃, with control precision±1℃
|
|
Temperature control mode
|
Tungsten lai thermocouple + infrared instrument
|
|
Power
|
25KW
|
|
Working voltage
|
0-30V
|
|
Pressure
|
10T
|
|
Pressure head diameter
|
85mm
|
|
Head displacement accuracy
|
0.02mm
|
|
Pressure head stroke
|
100mm
|
|
Tube dimension
|
Ф80×120mm
|
|
Rate of pressure rise
|
≤2Pa/h
|
|
Inflation pressure
|
<0.05Mpa (N2 or Ar)
|
|
Warranty
|
One year limited warranty with lifetime support
|
