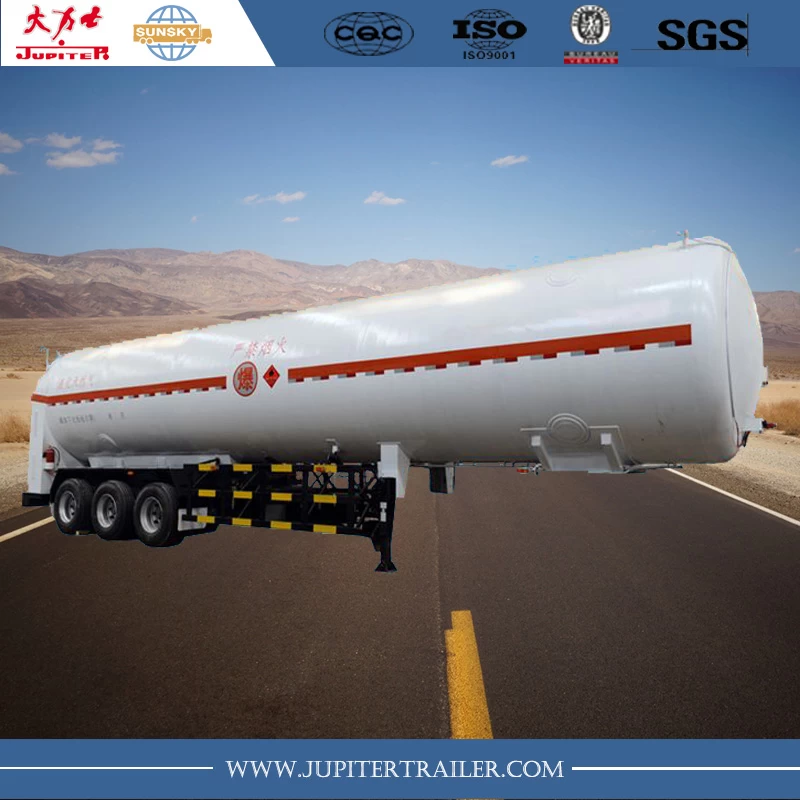

Tri-Axle LNG Tank Semi-Trailer with Vacuum Insulation
Features:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.
3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.
Specification:
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
|
Tri-Axle LNG Tank Semi-Trailer
|
|
|
Feature:
|
|
Carry Liquid Natural Gas
|
|
|
Dimension(L*W*H):
|
|
13200*2500*4150mm
|
|
|
Model
|
|
SS9403GDY
|
|
|
Overall Dimension(mm):
|
|
13000×2500×3900
|
|
|
Material:
|
|
Inner Tank：16MnDR(Q345R)
Outer Skin：16MnDR(Q345R)
|
|
|
Heat Insulation Type:
|
|
Vacuum Insulation
|
|
|
Curb Weight:
|
|
15,200kgs
|
|
|
Capacity(kgs):
|
|
27,000Kg(26CBM)
|
|
|
Tare weight(kgs):
|
|
42,200kgs
|
|
|
Kingpin
|
|
The world-famous JOST brand bolt-inwelded type 3.5”2”
|
|
|
Landing gear
|
|
JOST brand two-speed manual operation 19”
|
|
|
Tire size
|
|
11.00R20、11R22.5、12R22.5、31580R22.5、38565R22.5
|
|
|
Rim size
|
|
8.25*22.5、9.00*22.5、11.75*22.5
|
|
|
Axle
|
|
Original BPW-12T FUWA-13T
|
|
|
Leafs spring
|
|
Germany type with 12pcs of leafs spring Fuwa brand with 10 pcs of leafs spring Airbag suspension
|
|
|
Brake system
|
|
One unit WABCO RE 4 relay valve; four units T3030 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
|
|
|
Design Pressure:
|
|
2.28MPa
|
|
|
Pneumatic Test Pressure:
|
|
2.63MPa
|
|
|
Air Test Pressure:
|
|
2.28MPa
|
|
|
Design Temperature:
|
|
-167℃
|
|
|
Liquid-phase Inlet&Outlet:
|
|
DN50
|
|
|
Vapor-phase Inlet&Outlet:
|
|
DN40
|
|
|
Pipe of the main safety Valve:
|
|
2 x 2 safety valves set at 22.0 bar (319.0 PSI)
|
|
|
Pressure Gauge:
|
|
2 pressure gauges(front and rear),equipped with isolation valve
|
|
|
Pump System:
|
|
Difference Pressure: 3.5 bar
Flow rate: Ca 20,000 Kg h
Motor : 220 380 V 50 Hz + 60 Hz 5.5 kw
|
|
|
We can build the trailers according to customer’s design and requirement
|
|
