5L Electric Vacuum Mixing Machine with Single Axis Helical Blade and Water Cold Tank
SPECIFICATIONS
1 TOB-SFM-6Evacuum mixing machineis designed for making large batch of chemical compound via blending and mixing in single container under vacuum driven by electricity only.
2 Thevacuum mixing machineis programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.
3 The TOB-SFM-6Evacuum mixing machineis excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.
|
Model
|
Vacuum mixing machine TOB-SFM-6E
|
|
Features
|

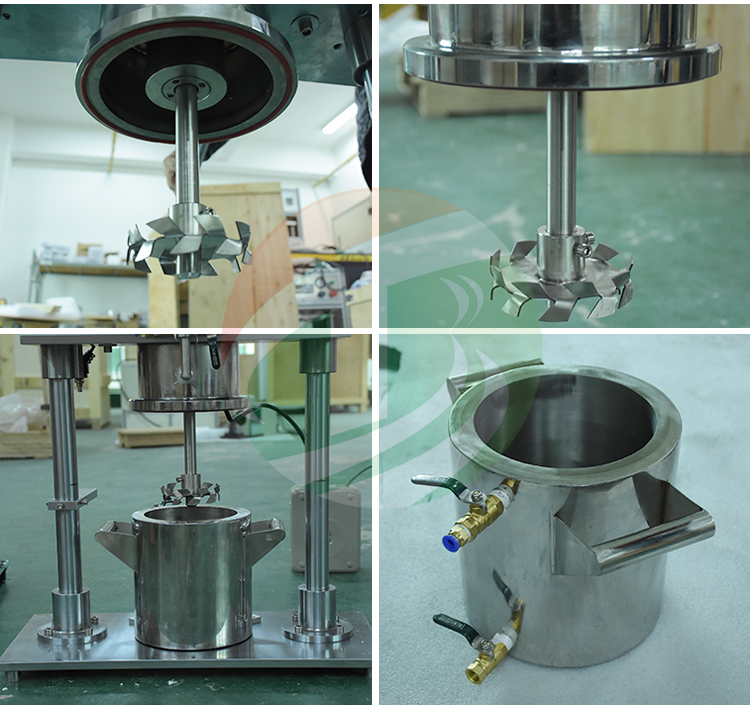

5 liter 304 stainless steel container with double layer water cooling jacket.
Advanced T type sealing to keep vacuum pressure up to 12 hours.
Double Step Rotary Vane Vacuum Pump, is included for immediate operation
Container is opened or closed by electric motor (no air pump is required any more)

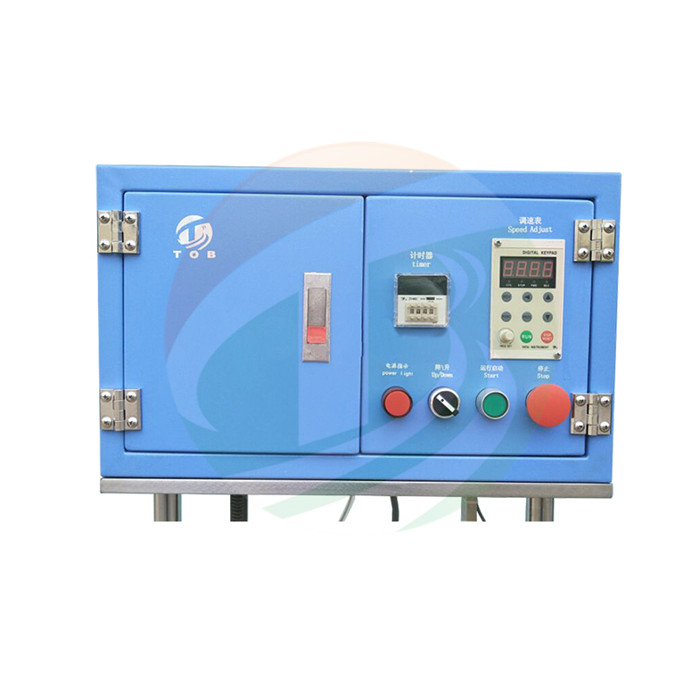

Programmable controller to set time, speed, rotation direction.
|
|
Voltage
|
110-240V AC single Phase, 50/60Hz
(build-in frequency converter to ensure the mixer can be used under 50 or 60 Hz)
|
|
Rate Power
|
750 W
|
|
Rotor Rod Speed
|
0 -1400 RPM variable
|
|
Lifting
|
Electric motor ( no compress are pump required any more )
|
|
Water Requirement
|
16 L/min water flow required to cool mixing tank
Cooling water 1/4'' Inlet and outlet on the back of the mixing tank (with build-in cooling jacket)
Suggest you order recirculating water chiller by click picture picture left to save water
（water chiller is not included)
|
|
Vacuum Pump
|
Double Step Rotary Vane Vacuum Pump, is included
Vacuum gauge is built in with minimum vacuum level -0.1 MPa
|
|
304SS Container Size
|
270mm O.D. x 210mm I.D. x 230mm H
|
|
Dimensions
|
580mm(L) x 320mm(W) x 1340mm(H)
|
|
Net Weight
|
119 kg (262 lbs)
|
|
Warranty
|
One year limited warranty with lifetime support
|

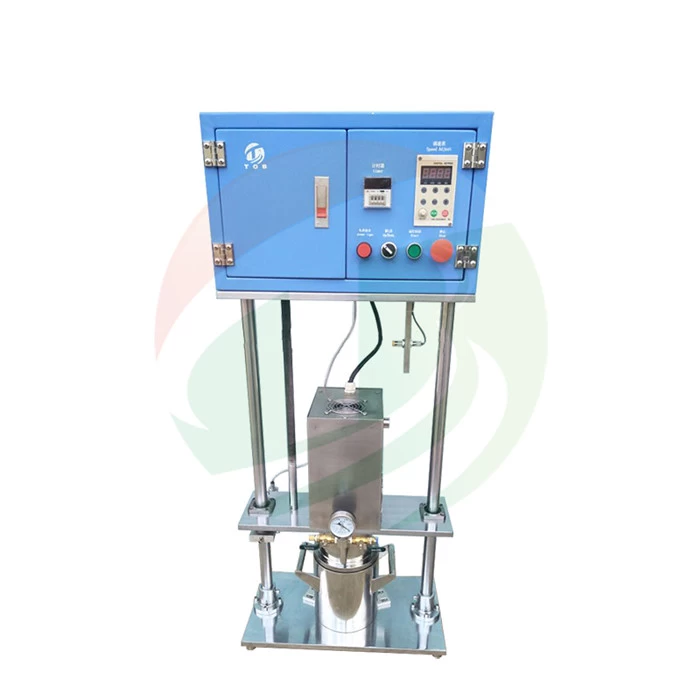

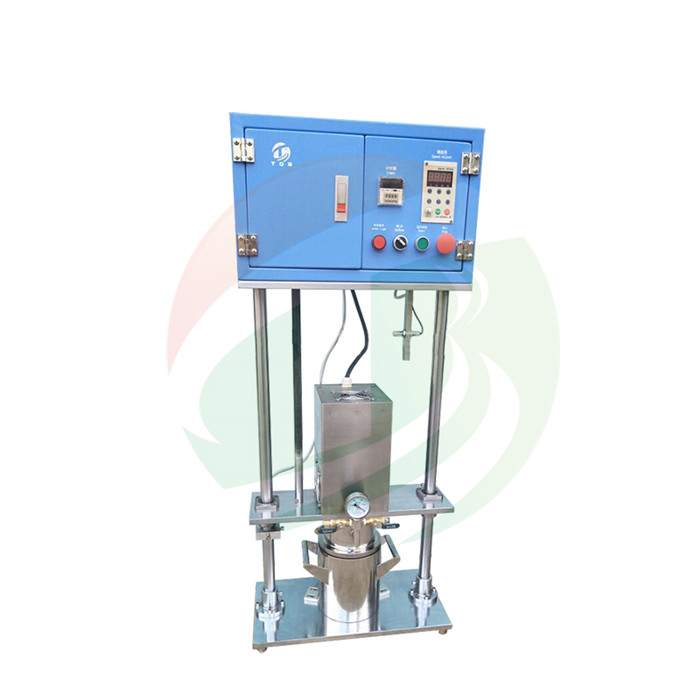

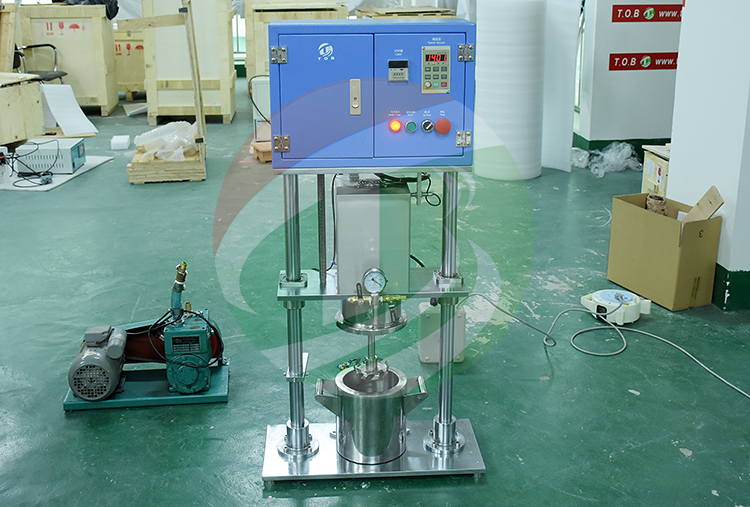

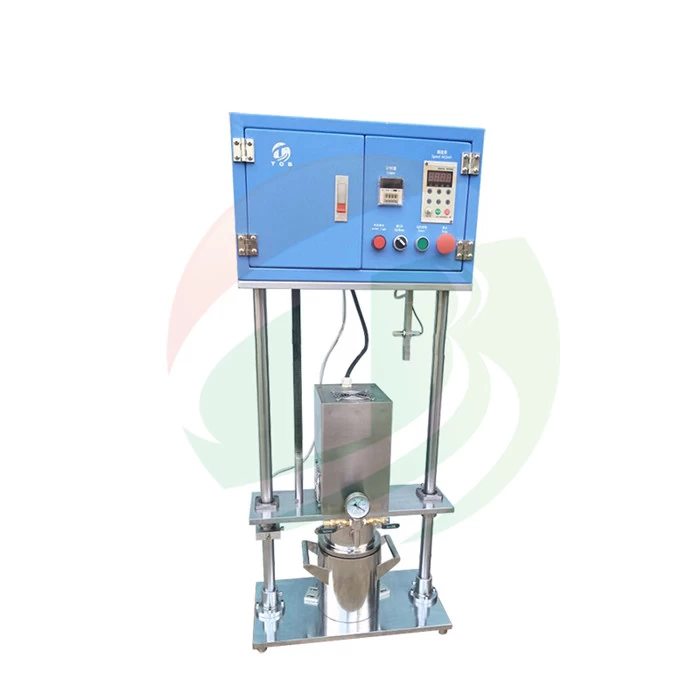

PRODUCT DISPLAY
PACKAGE
