30 liters Tri-Shaft Planetary Vacuum Mixer Used For Lithium Battery Pilot Scale Line
SPECIFICATIONS
1 TOB-XFZH30Vacuum Planetary Mixeris a vacuum mixing machine with 30 liter containers and complete accessories for immediate use.
2 The TOB-XFZH adoptsLow-speed stirrer scattered and installed on the high-speed shaft of zigzag dispersion plate with both rotation and revolution;At the same time combined with stirring Plasma low clearance design, low speed impeller make the material produces strong kneading movement interference and control/up and down and circular motion; High speed dispersion plate is strong shear break up material, So as to ultimately ensure that materials are fully dispersed and mixed evenly (mixed).
3 TOB-XFZH30Vacuum Planetary Mixeris excellent for preparing LiCoO3, LiFePO4, phosphors and ceramic slurry with excellent results in dispersion and uniformity.
|
Model
|
Vacuum Planetary Mixer TOB-XFZH30
|
|
Source voltage
|
AC 380 V, 3 Phase, 50 HZ
|
|
Power
|
8.5KW
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Design capacity
|
45 L
|
|
Working capacity
|
30 L
|
|
Basic structure
|
A, Electric lifting barrel.
B, Single direct material temperature measurement model;
C, Monodisperse shaft + double stirring shaft + belt wall
|
|
Barrel (stirring barrels)
|
Dia. 400mm×360mm
|
|
Barrel structure
|
A, Tank material: SUS304.
B, Bladder wall mirror polishing after turning processing, ensure good roundness;
C, Stirring barrels on the flange surface and on barrel through the sealing ring seal;
D, Bottom with G1 "(DN25) discharge valve;
E, Four roller at the bottom And the barrel body with a push handle.
|
|
Planets orbiting speed
|
0~50rpm, adjustable
|
|
Stirring shaft/stirrer speed
|
0~80rpm, adjustable
|
|
Dispersion speed
|
0~5000rpm, adjustable
|
|
vacuum degree
|
-0.098MPa
|
|
Temperature test mode
|
0-300 ℃, the temperature measuring probe located close to the bottom of the
barrel wall (or bottom), contact with the material and display the temperature
|
|
Weight
|
1300KG
|
|
Dimension (L*W*H)
|
1800*1100*2100mm
|

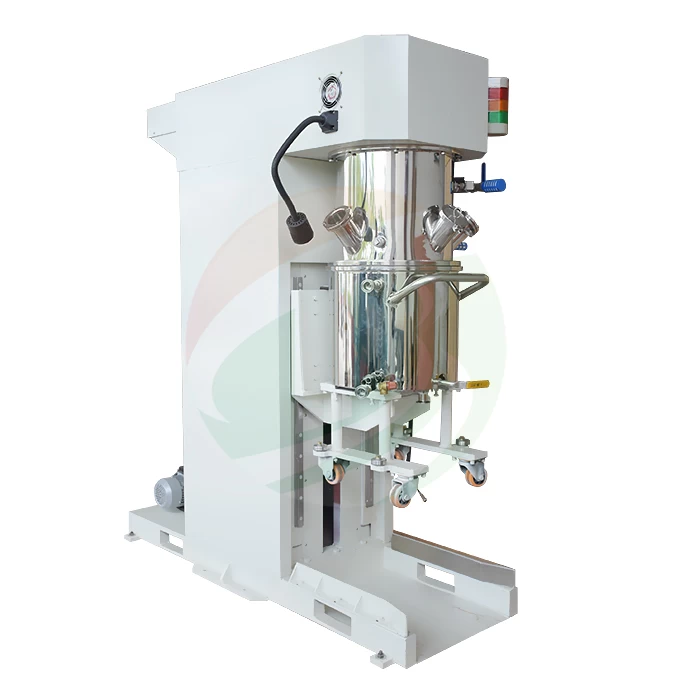

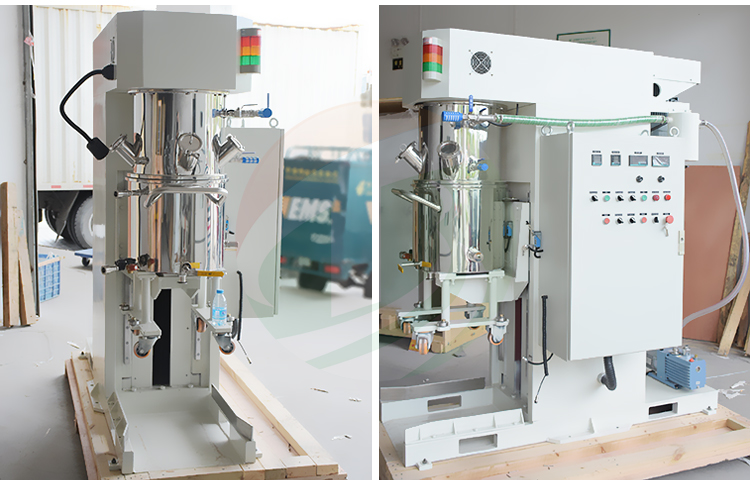

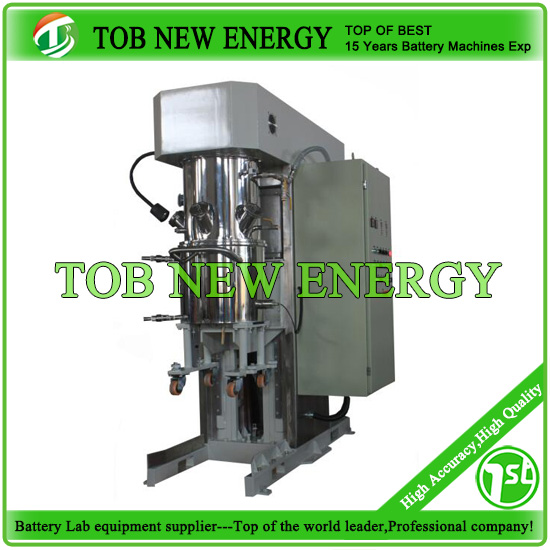

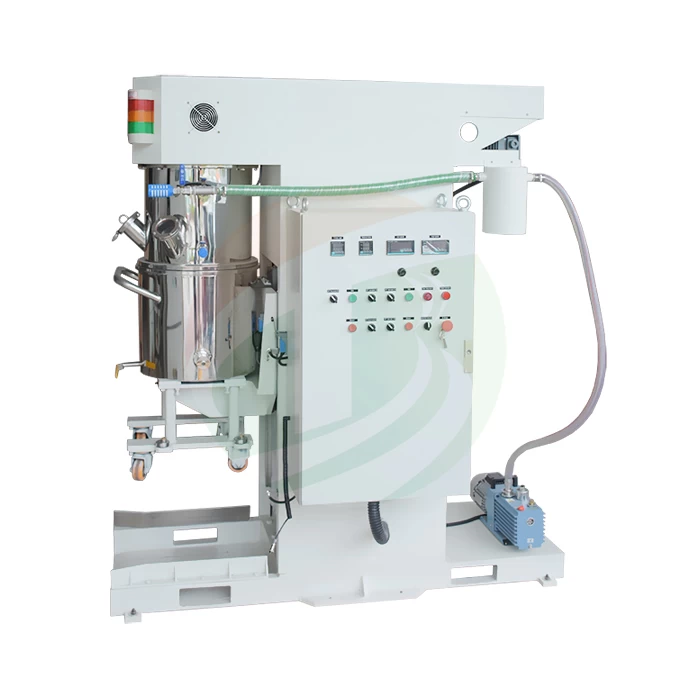

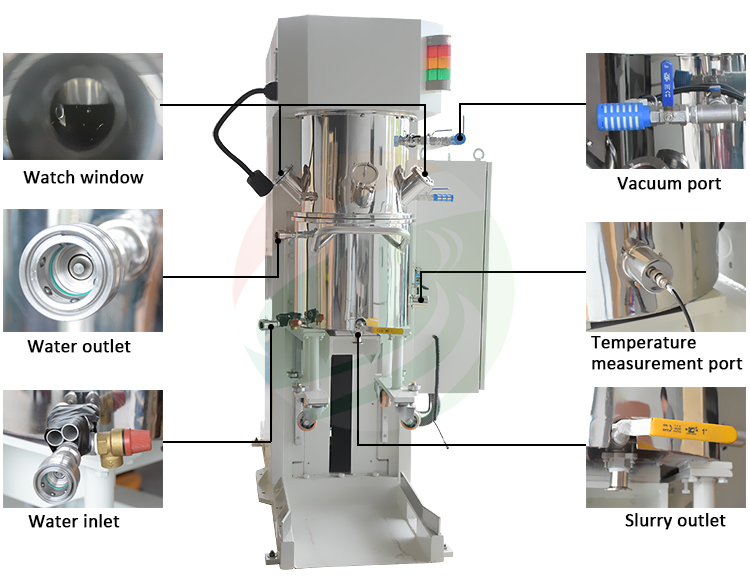

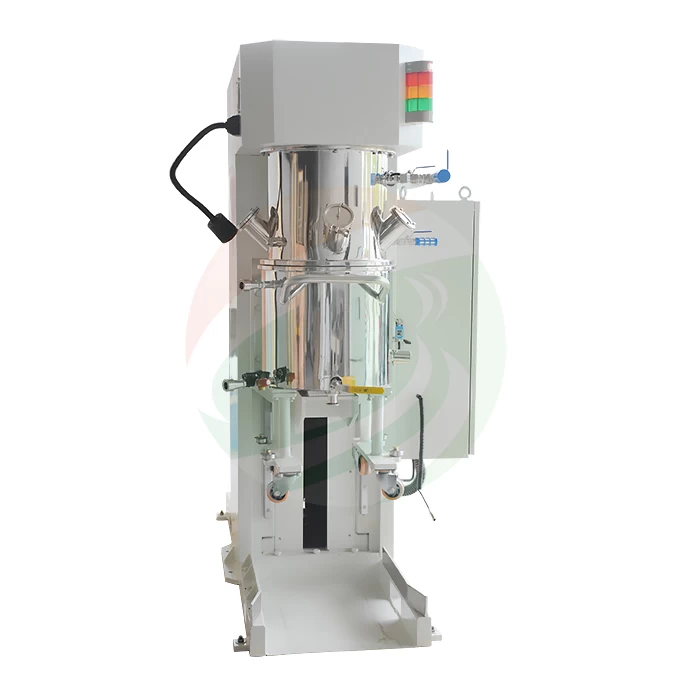

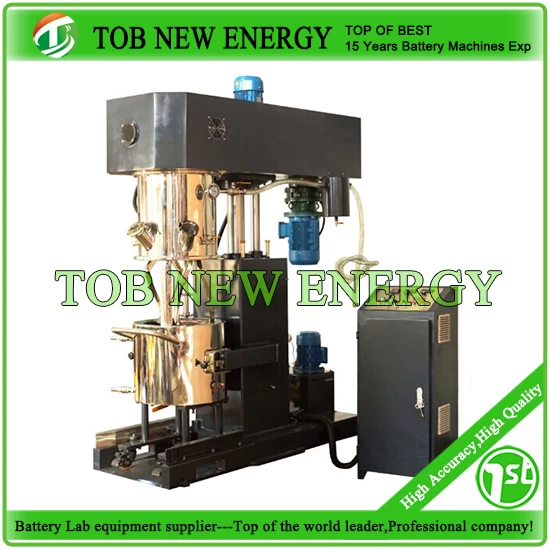

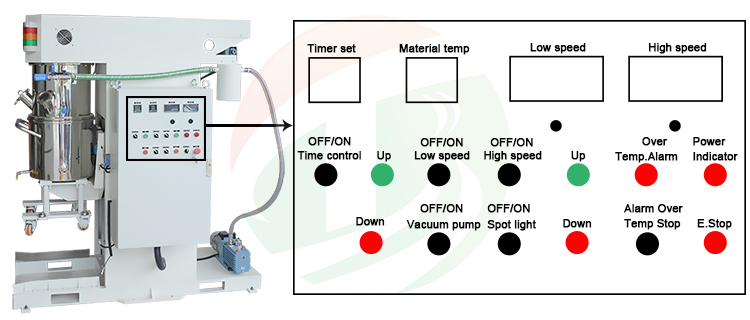

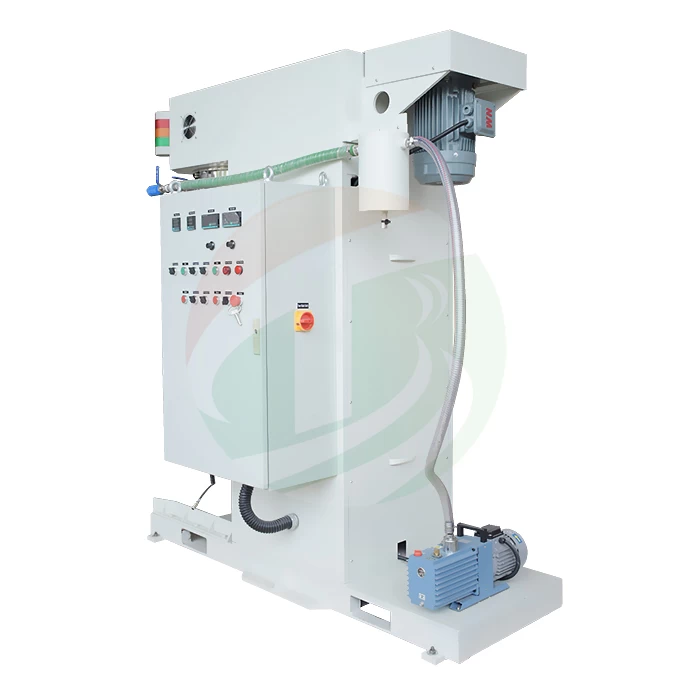

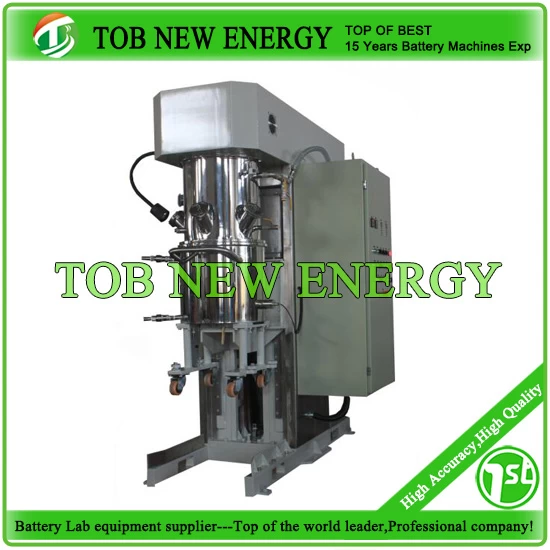

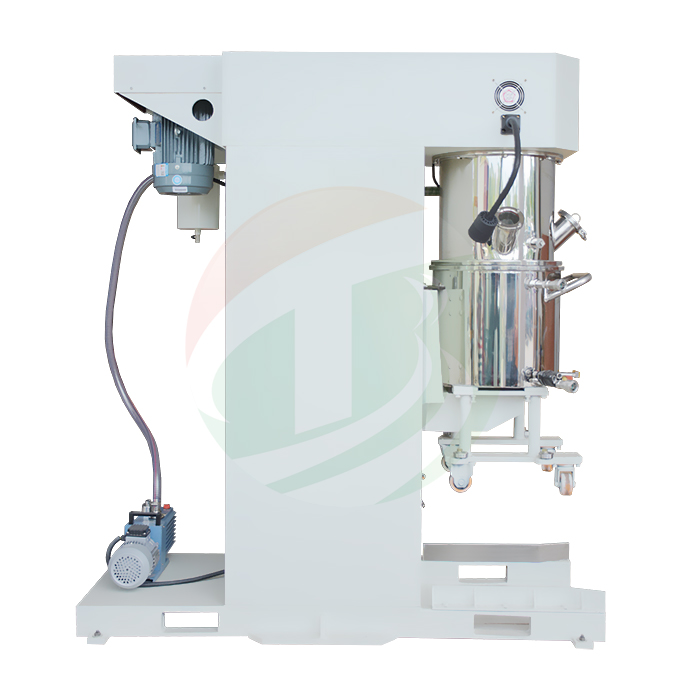

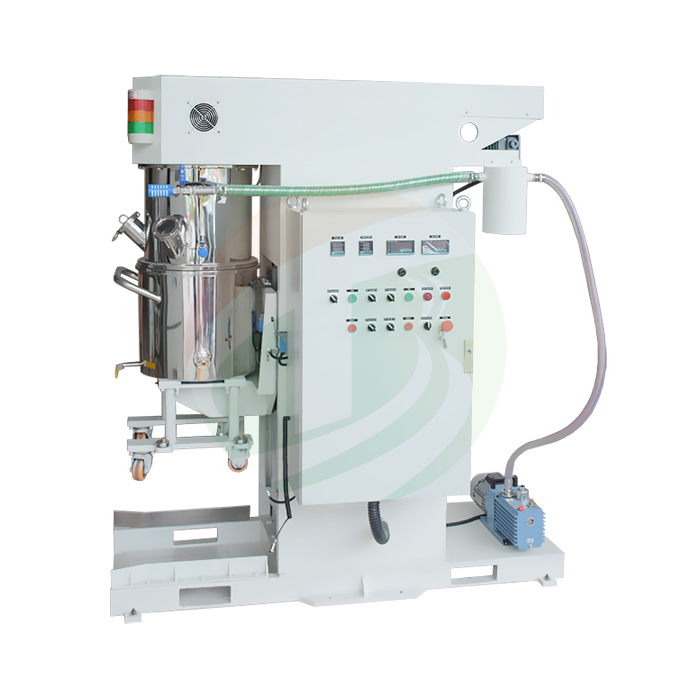

Product Display
Packing
