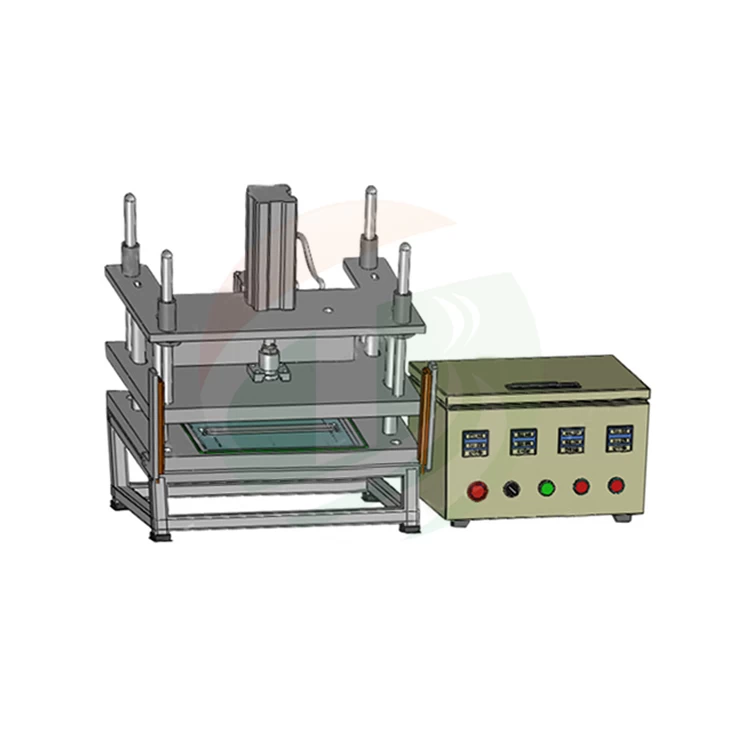

Vacuum pre-sealing machine
SPECIFICATIONS
The main technical features
1. This device is suitable for(small size)lithium batteries liquid injection,standing,previously evacuated and hot sealing operations.
2. The device is provided with a vacuum chamber,when working the chamber vacuum up to -90KPa,to ensure the air in batteries discharge clean;
3. Device copper head equipped with a thermocouple and temperature control module to ensure that the package temperature constant, good quality packaging;
4. The device is provided with safety grating protection to ensure the safety operation.
5.Process:Device has upper and lower cavity forming a closed working space,after battery in it,made the body vacuum state up to -90 ~ -60kpa,to ensure the air in batteries discharge clean,then sealing by head conduction effect .The equipment specifications.
|
Head length
|
350mm（Customized according to customer requirements）
|
|
Head width
|
2~10mm（Customized according to customer requirements)
|
|
Sealing edge thickness
|
0.19~ 0.3mm
|
|
Power configuration
|
AC220V / 50Hz, power 1.5KW
|
|
Compressed air
|
0.6MPa, 5L/min
|
|
The vacuum source
|
-0.095MPa, 50L / min
|
|
Weight
|
about 100kg
|
|
The device dimensions (LxWxH)
|
550 * 450 * 500mm
|
|
Production capacity
|
100 ~ 350EA/H (depending on the workers operating proficiency,
small battery simultaneously encapsulate multiple
|
PRODUCT DISPLAY
