Vacuum Road Cleaning Truck 5CBM Dongfeng

Dongfeng 5 CBM vacuum suction road sweeper, which use 95HP engine, euro3 emission for Africa countries, 5-shift manual gearbox, 5 CBM stainless steel material tank, with no brush device



Vacuum Road Sweeper Dongfeng 5CBM stainless steel tank



Dongfeng 5CBM vacuum road clean trucks



Road sweeper (also called street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.



The CEEC TRUCKS produced dongfeng 5CBM Vacuum Suction road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

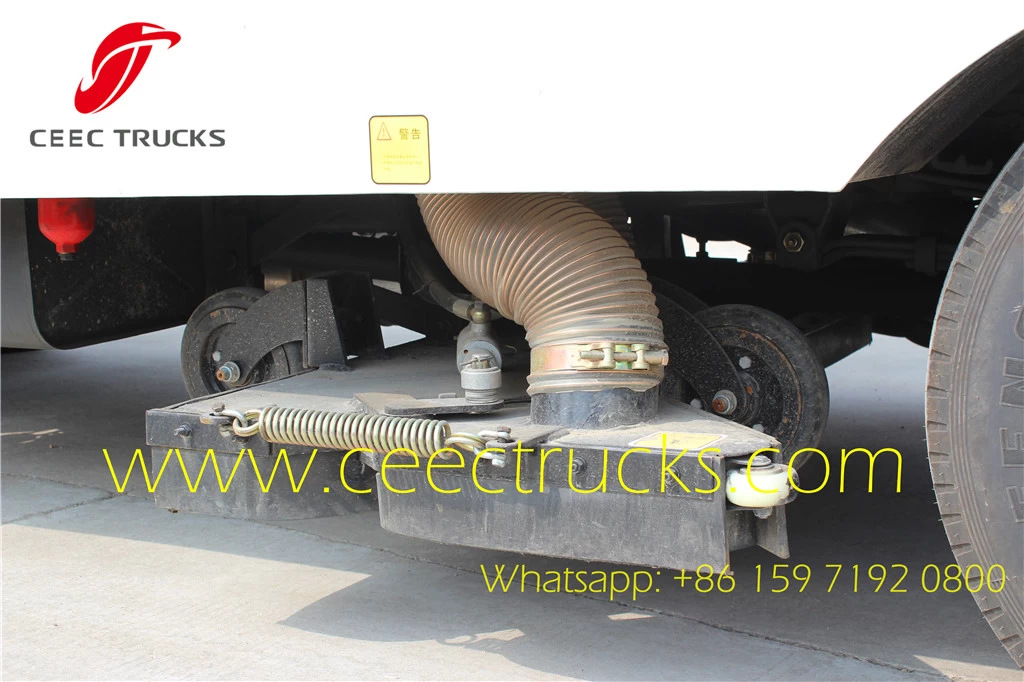

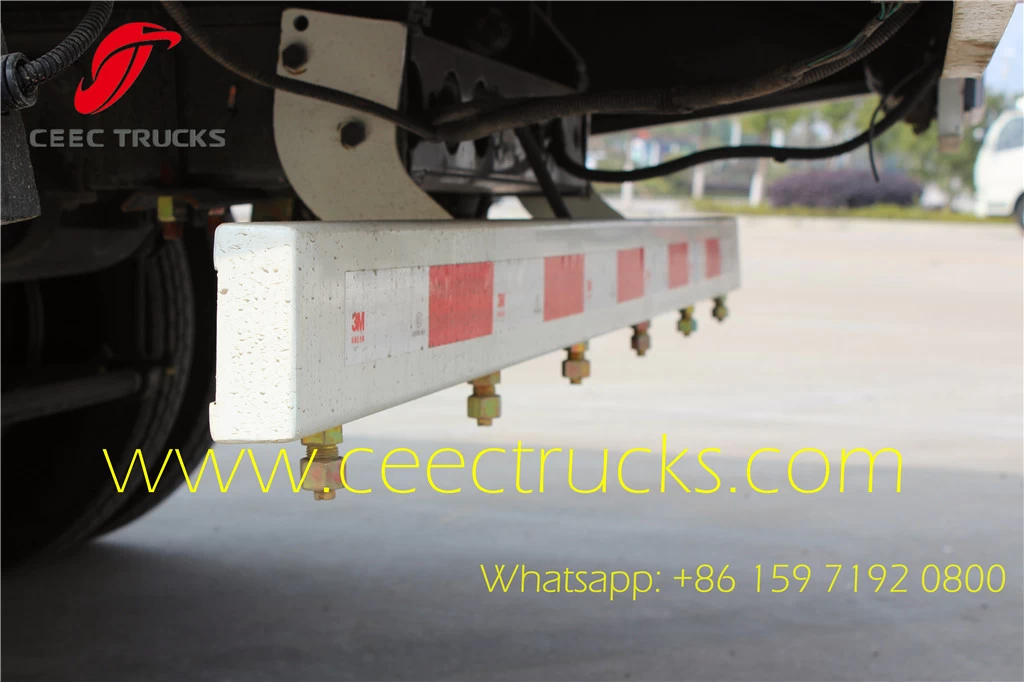

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.

Also for some snowing country, our road sweepers can also adding a device of snowplow, this road sweeper could also be used to clean snow on the road.

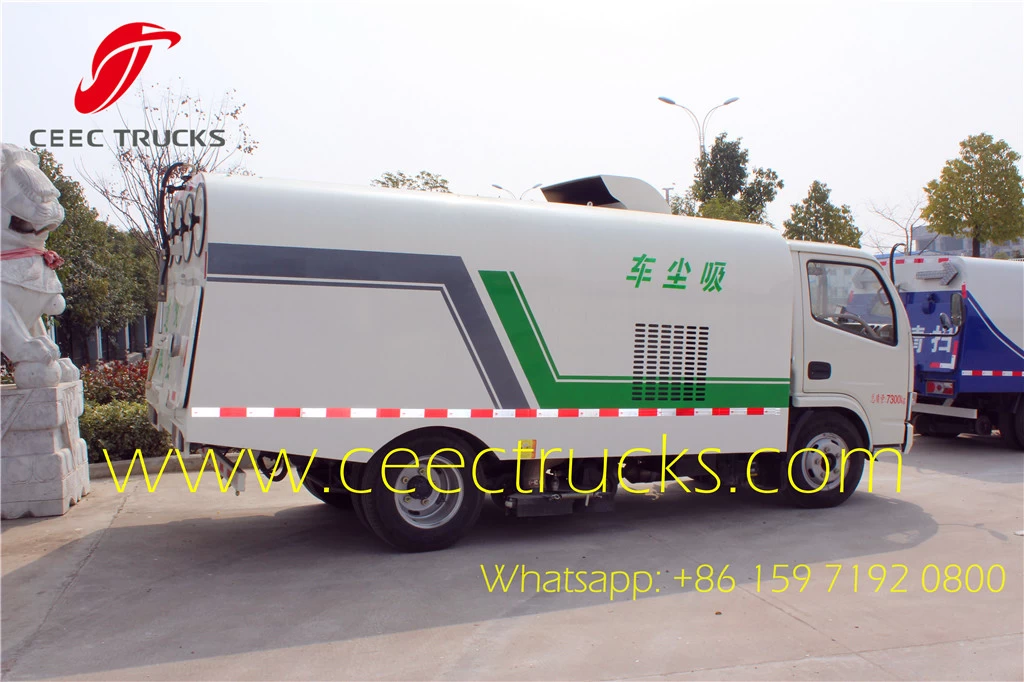

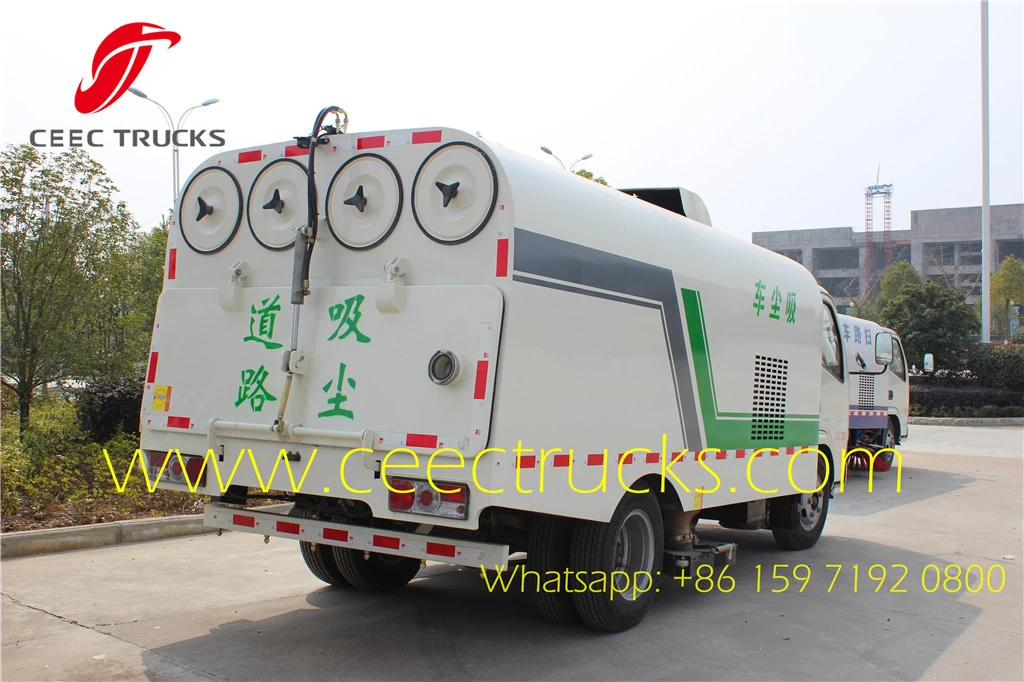

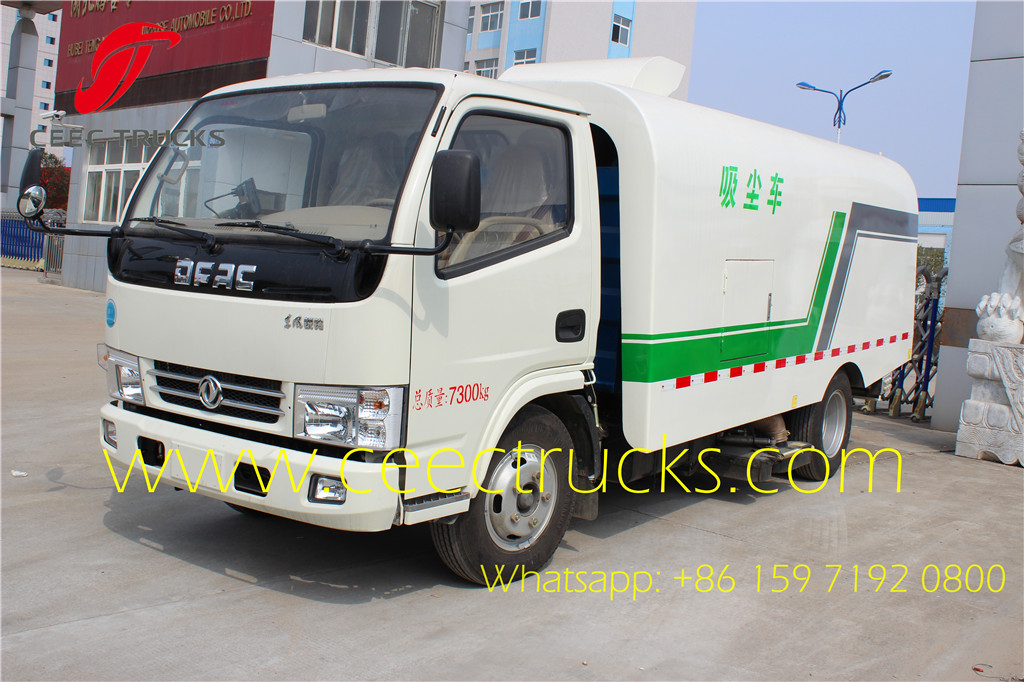

Dongfeng 5CBM vacuum road clean truck

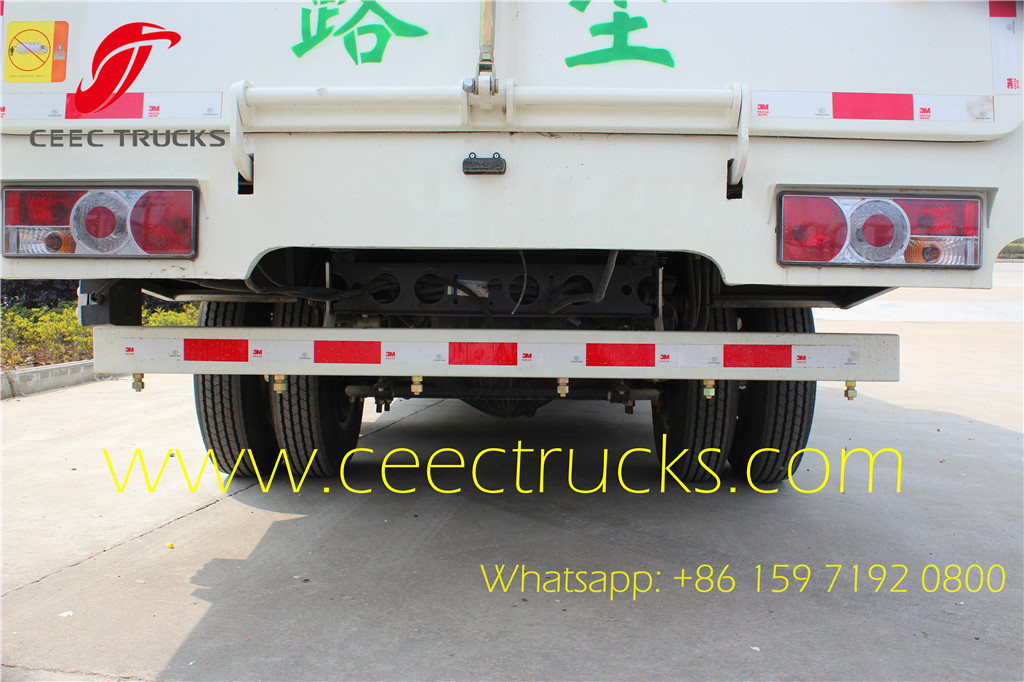

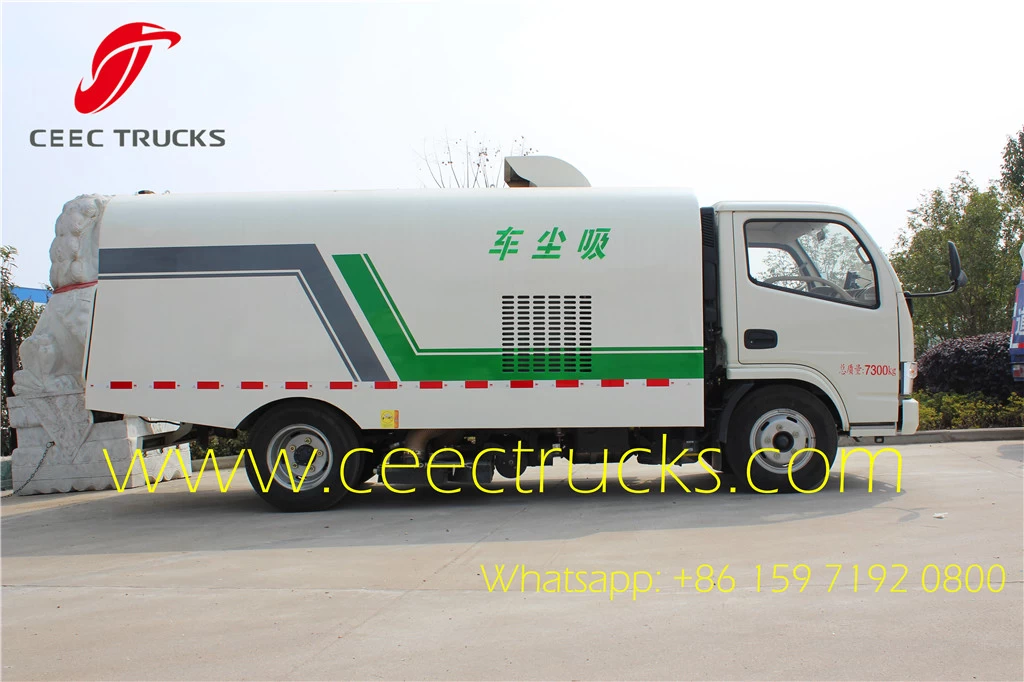

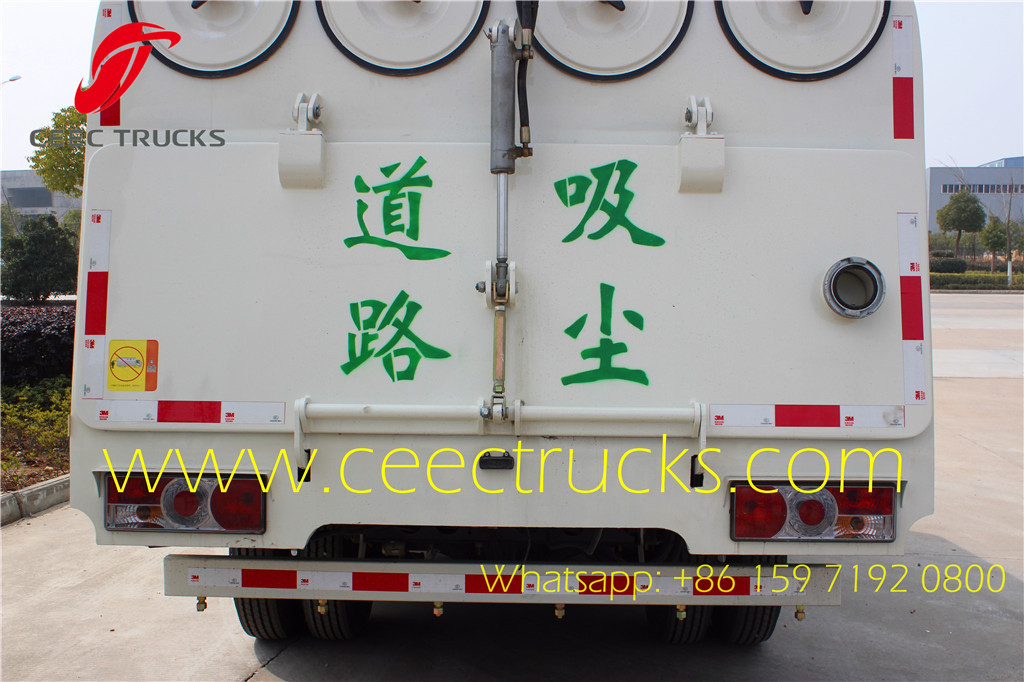

Dongfeng 5CBM vacuum road clean truck

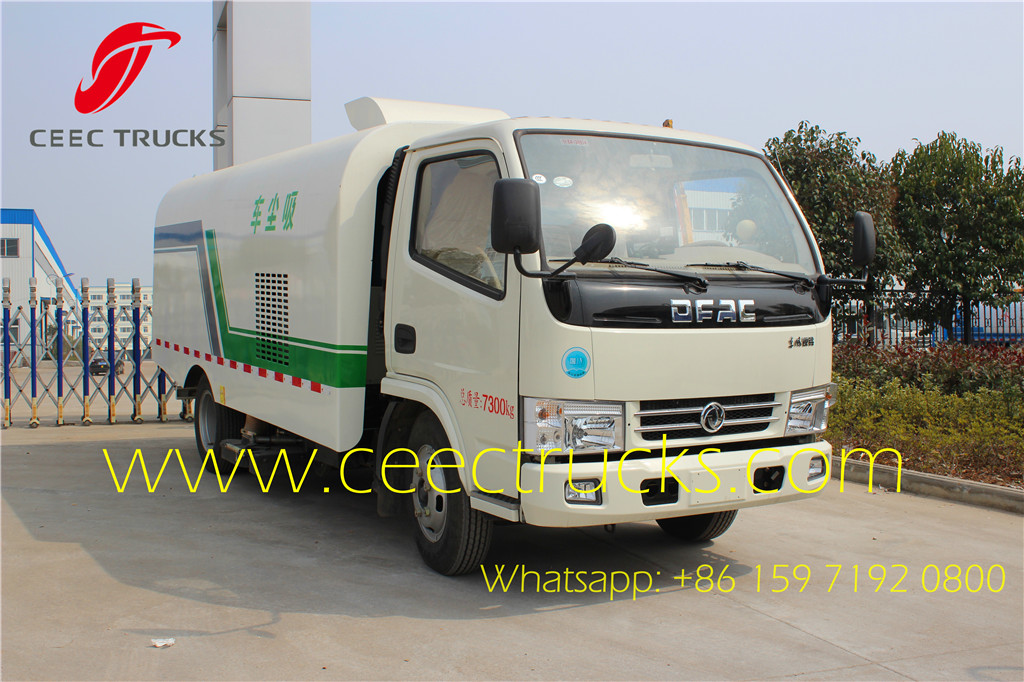

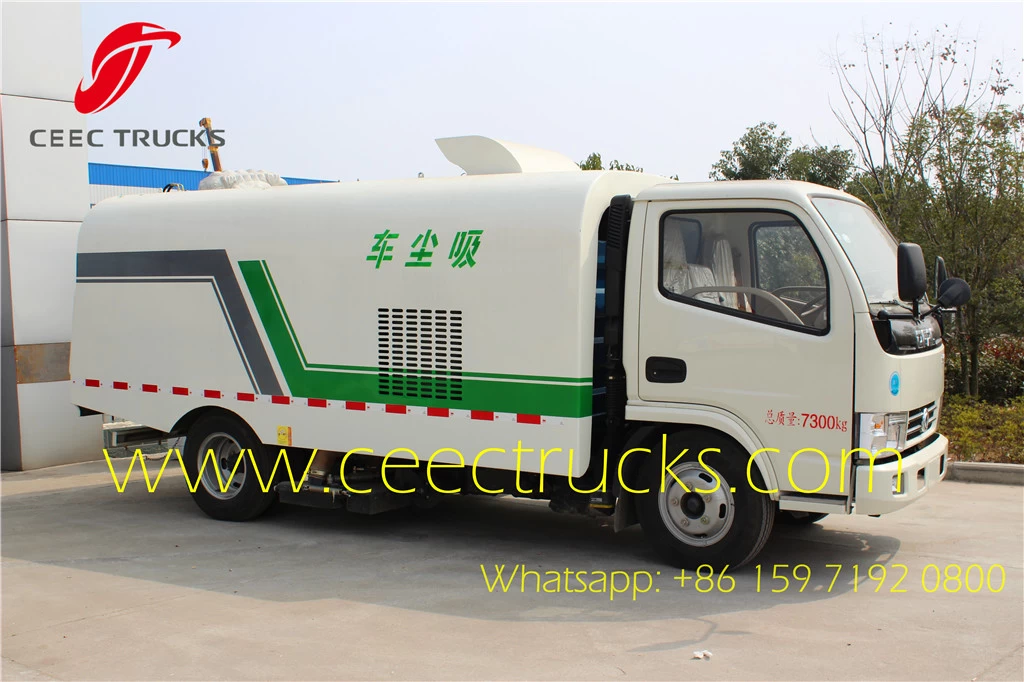

Dongfeng 5CBM vacuum road clean truck

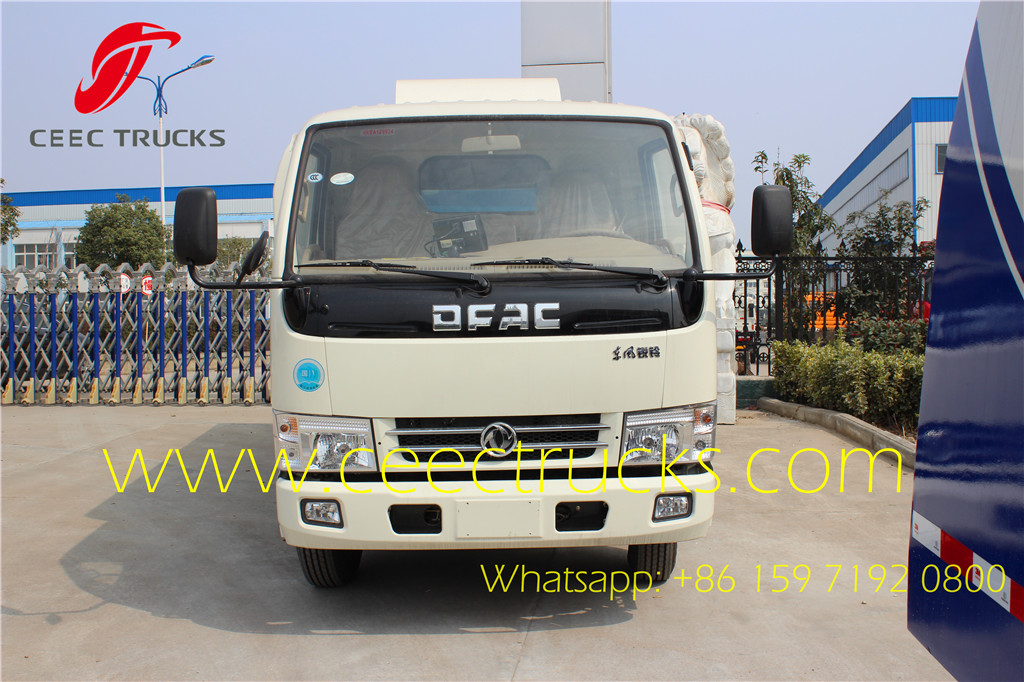

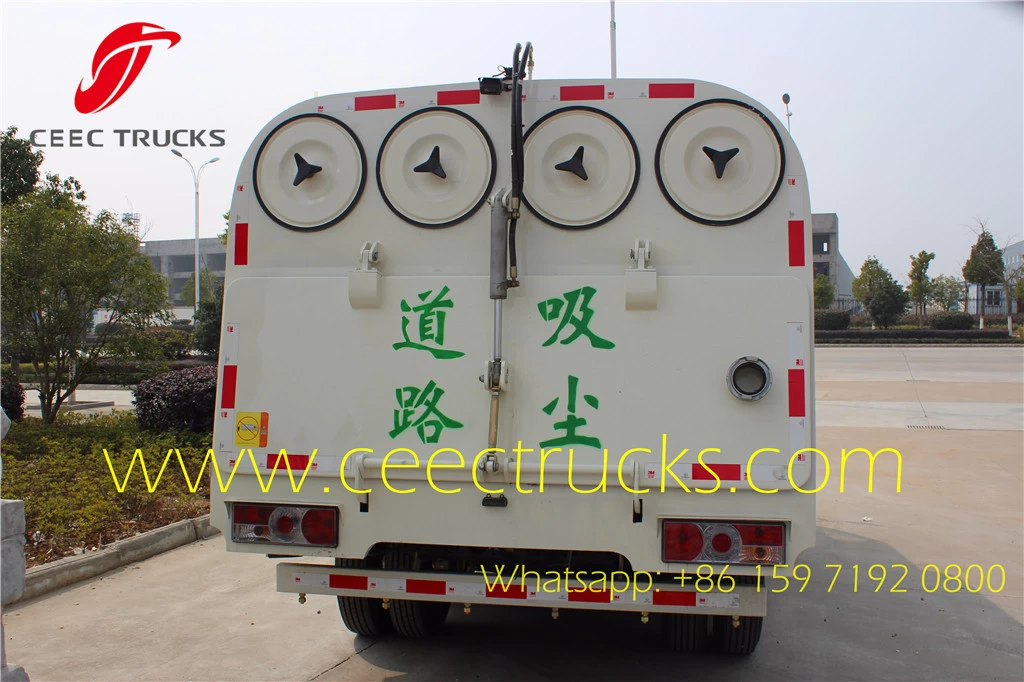

Dongfeng 5CBM vacuum road clean truck

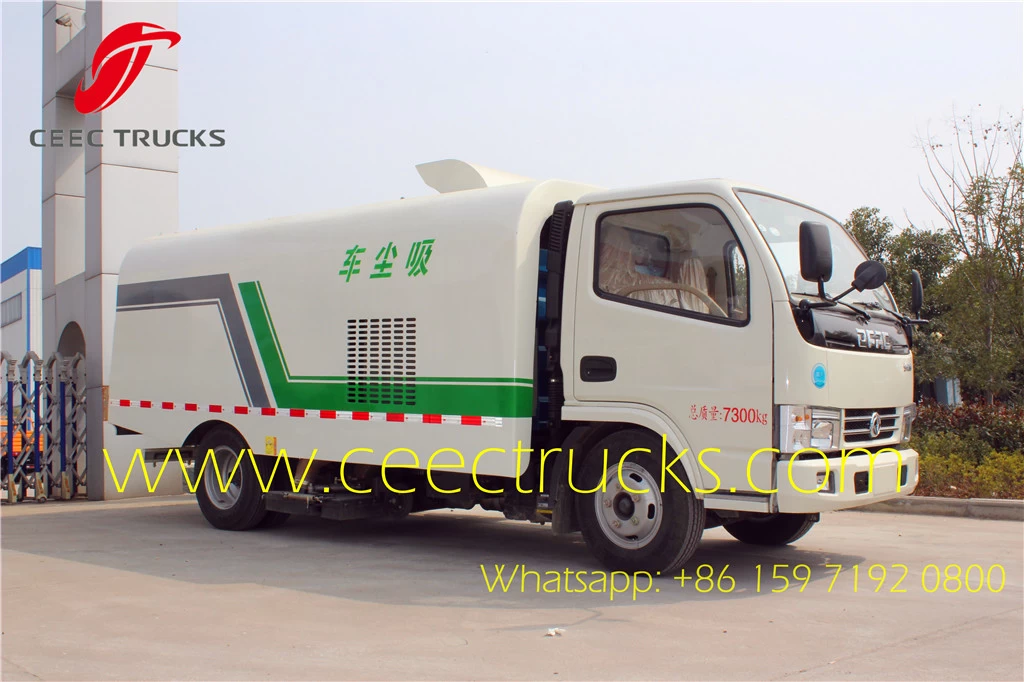

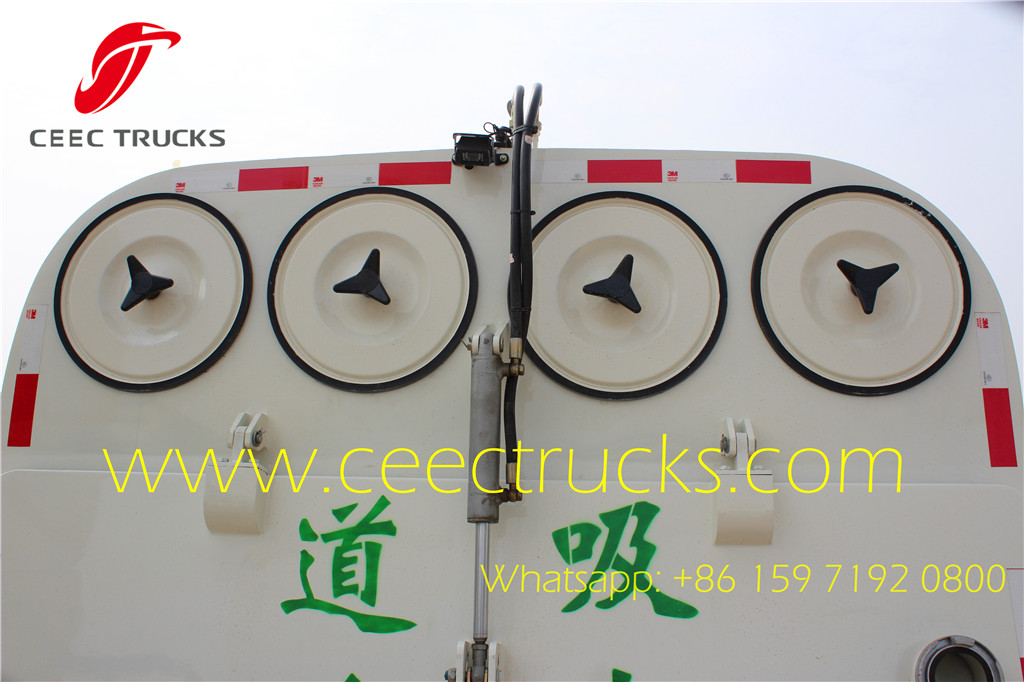

Dongfeng 5CBM vacuum road clean truck



Similar KeyWords: Dongfeng 4-5CBM vacuum road sweeper, DFAC 4-5CBM runway road cleaning truck, Mechanical road sweepermulti-function road sweeper, street cleaner, road sweeper, sweeper truck, Ecuador dongfeng mini street sweeping vehicle



Road Sweeper 4-5CBM Dongfeng

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

5995 * 2000 * 2400 mm

GVW / Kerb Weight

6,895kg / 4,565kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Air conditioner is optional

Engine

Fuel Type

Diesel

Engine Brand

Dongfeng

Power

95 Ps (70 KW)

Displacement

3856 ml

Emission Standard

Euro III

Chassis

Drive Type

4X2, left hand drive

Transmission

5-speed front, 1 reverse

Wheelbase/No. of axle

3300 mm / 2

Tyre Specification

7.00-16

Tyre Number

6 tyres and 1 spare tyre

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Water Tank

Stainless Steel

Dustbin Capacity

4 CBM

Dustbin Material

Stainless Steel

Water Tank Capacity

2,000 Litres (About 500 gallons)

Sweeping Capacity

42,000 m³/h

Sweeping Speed

3-15 km/h

Max Sweeping Width

2800mm

Brooms

2 sets at each side, at diameter 900 mm

Auxiliary Engine

JMC engine (ISUZU technology)
77 HP (57 KW), super powerful

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.

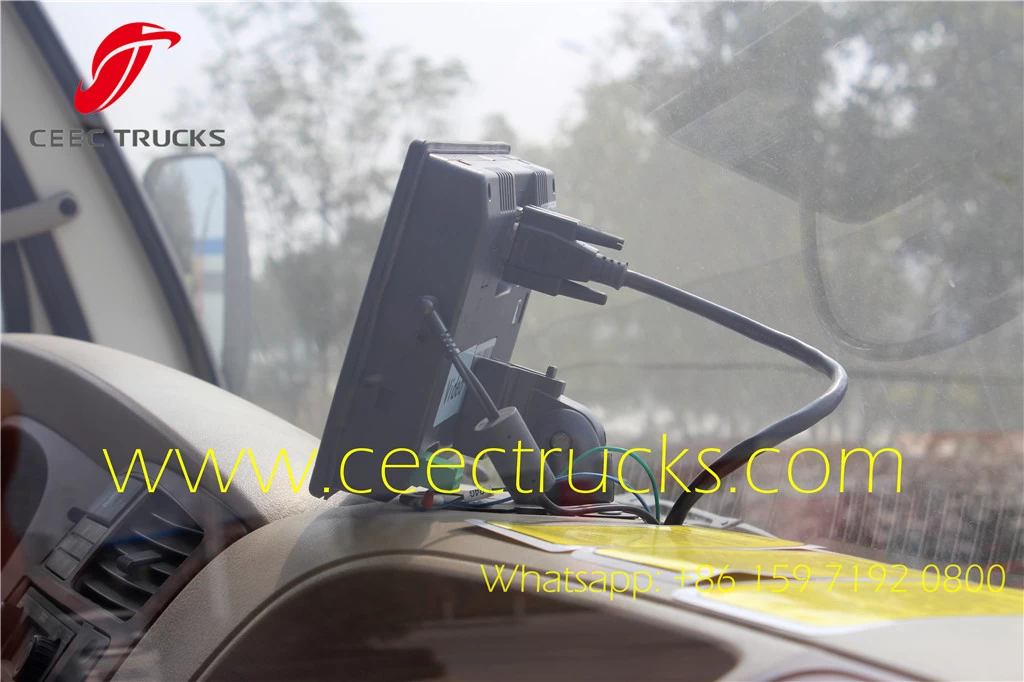

** Camera can be equipped.
** Air blower can be of stainless steel.

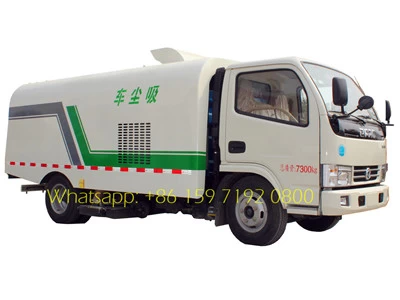

Dongfeng 5CBM vacuum road clean truck
