Vacuum Sealing Machine Used For Pouch Cell Final Sealing After Formation With Auto Needle Function
SPECIFICATIONS
1 TOB-BFZ200Battery vacuum sealing machineis mainly used for soft packaging (medium and small specification) lithium polymer battery/pouch cell vacuum sealing after battery formation.
2 Thevacuum sealing machineis a battery heat sealer machine, with sealing Temperature from RT to 250℃ adjustable.
3 The machine is with auto needle function, so it can prick the battery and vacuum the air in battery then vacuum the battery.
|
Model
|
Vacuum Sealing Machine TOB-BFZ-200
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
50W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Advantages
|
1 Sealing Head adopts copper material, good heat transfer effect,
2 With automatic needle function, waste liquid recycling equipment.
3 Can apply to different specifications battery, and the adjusting easily
|
|
Vacuum degree
|
-90Kpa - 0
|
|
Sealing head TEM
|
RT-250℃, adjustable
|
|
TEM accuracy
|
±1.5℃
|
|
Sealing pressure
|
0-7Kg/cm2, adjustable
|
|
Sealing time
|
0-99s, adjustable
|
|
Sealing width
|
5mm, customized
|
|
Sealing head length
|
200mm
|
|
Air source
|
0.5-0.7MPa (72.5-102psi)
|
|
Dimension(L*W*H)
|
600*500*1700mm
|
|
Weight
|
About 200kg
|

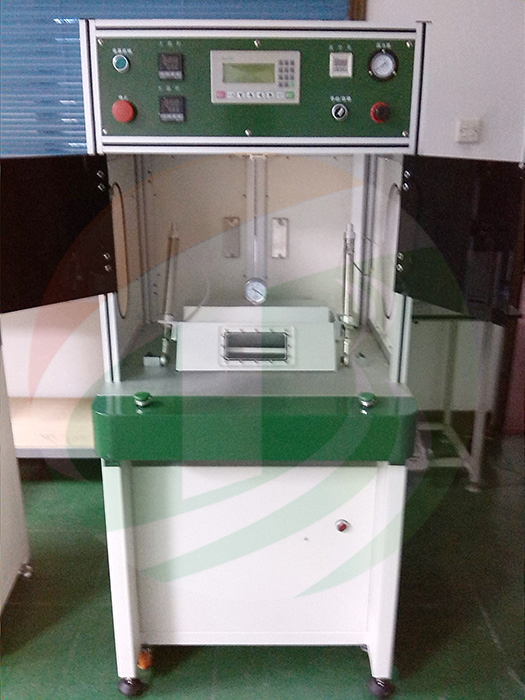

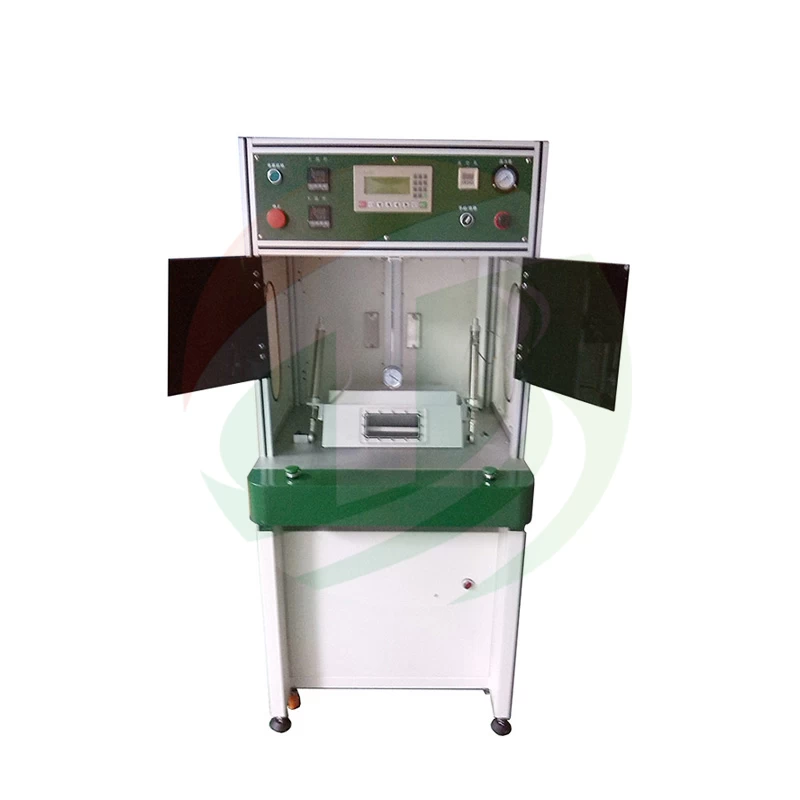

PRODUCT DISPLAY

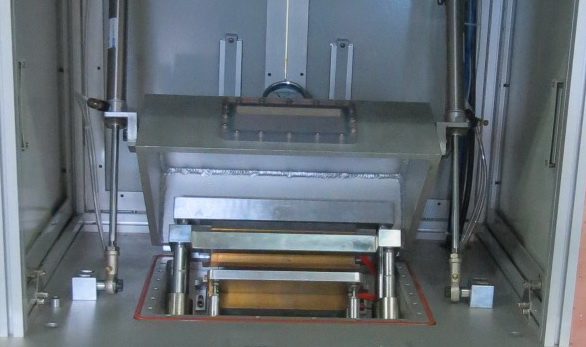

Vacuum sealing machine sealing head

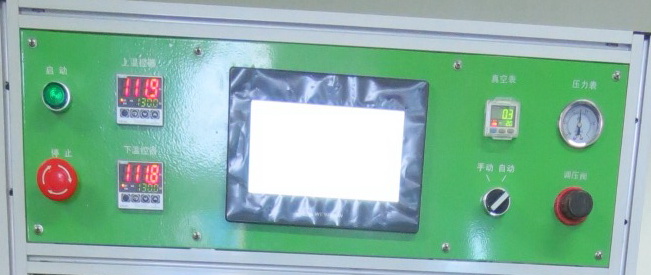

Touch screen control for vacuum sealing machine
