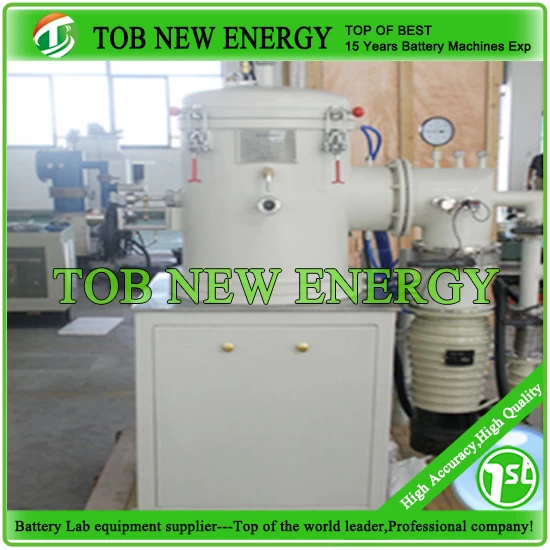

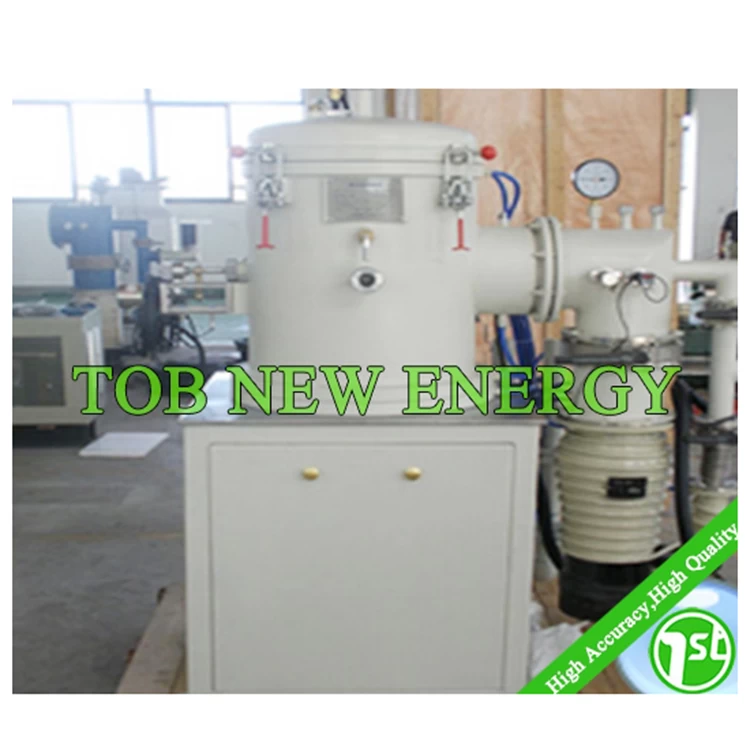

High Temperature Vacuum Sintering Furnace For Laboratory Powder Materials Research
SPECIFICATIONS
Thisvacuum sintering furnaceis cycle operation type, widely used in functional ceramics, optical material, composite material, hard alloy, powder metallurgy material sintering processing under high temperature condition, it can also be used in forming sinter with charging protection situation.
|
Model
|
Vacuum Sintering Tube Furnace TOB-VCTF-LAB
|
|
Limited cold vacuum degree
|
5×10﹣3Pa
|
|
Heating temperature
|
2000℃, with control precision±1℃
|
|
Temperature control mode
|
Tungsten lai thermocouple + infrared instrument
|
|
Power
|
25KW
|
|
Tube dimension
|
Ф80×120mm
|
|
Rate of pressure rise
|
≤2Pa/h
|
|
Voltage
|
Single phase 380v,50hz
|
|
Inflation pressure
|
<0.03Mpa (N2 or Ar)
|
|
Warranty
|
One year limited warranty with lifetime support
|
