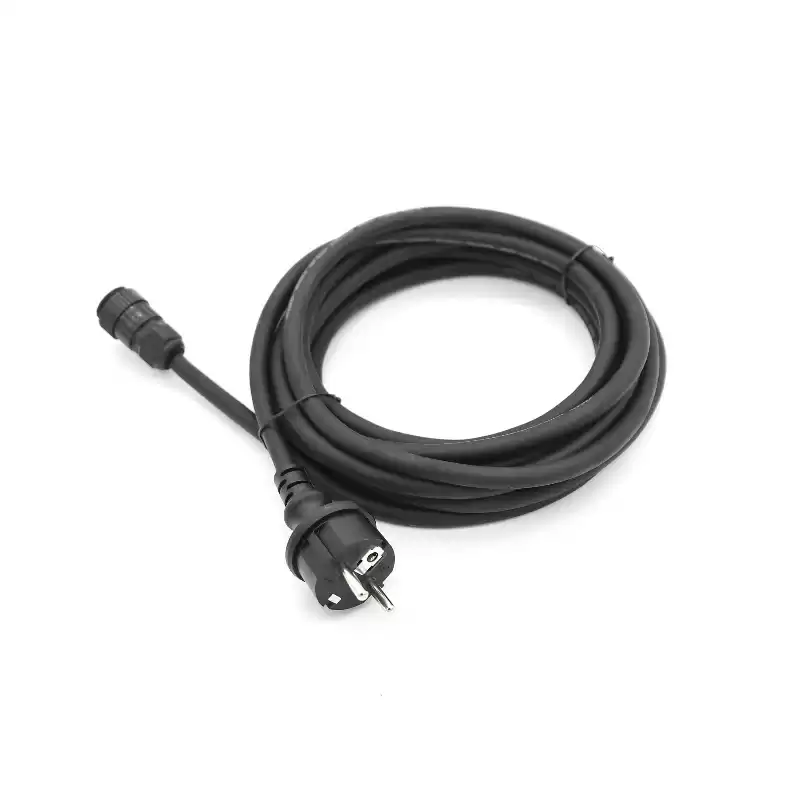

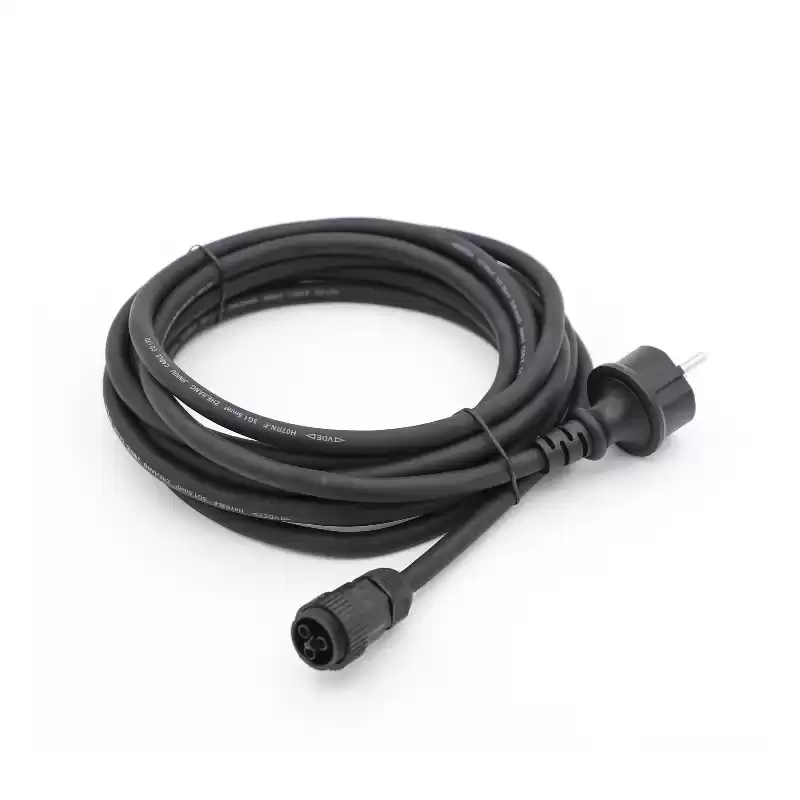

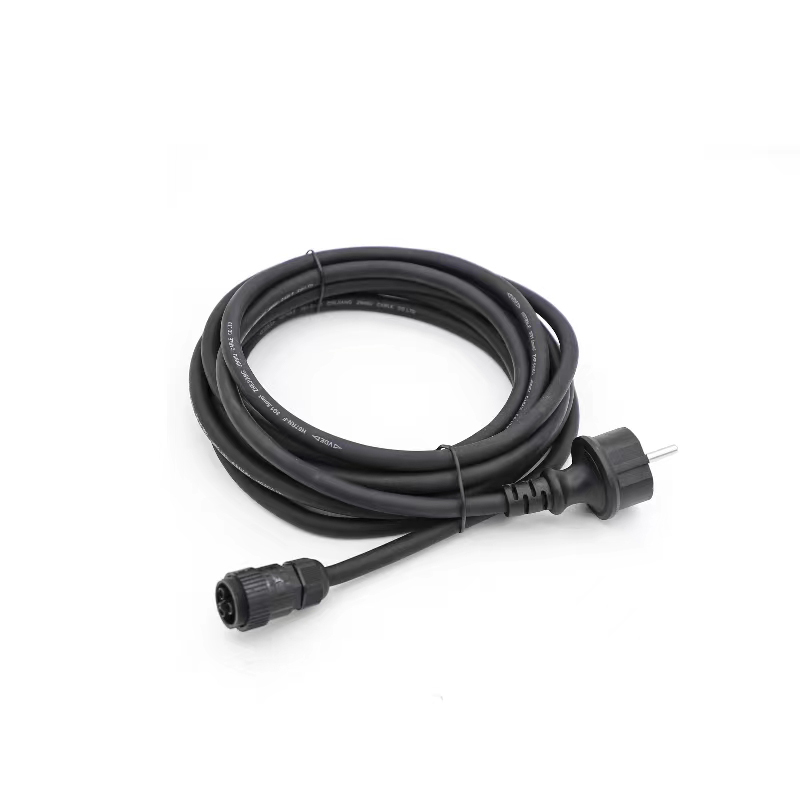

VDE Certified Solar Microinverter cable

VDE Certified  Solar Microinverter cable

Cross Section: 3x1.5mm²

Construction Tinned copper wire: 30x0.25（±0.015）

Cable Od.: 10.3±0.2mm

Insulation Thickness:0.8

Insulation Material:TPU

Insulation Color:BLACK



Cable Length: 2 / 3 / 5 / 10m

Facebook Twitter Pinterest LinkedIn 分享
Connector
Type-1 PN03-F
Insulation Materical TPU
Contact materials Tin plated copper
Number of pins 2
Type of termination Crimping + welding
Type-2 FN01
Insulation Materical PPO
Contact materials Silver plated copper
Number of pins 3
Type of termination Crimping + welding
Electrical Characteristics
Rated Voltage：450/750V
Rated Current：16A
Protection Degree：IP68
Contact Resistance：≤0.5mΩ
Ambient Temperature：-10℃～+70℃
Inspection items
Facade Surface should be clean and smooth,without scratchs, burr and deformation.
Conduction Whether the connection between the positive and negative terminals of the connector is conduction.
Product features
1、Meet the outdoor environment conditions for use.
2、Snap-in Lock, easy to assemble,unbreakable
3、Compatible with standard German micro inverter
4、Low contact resistance, waterproof, dust-proof design

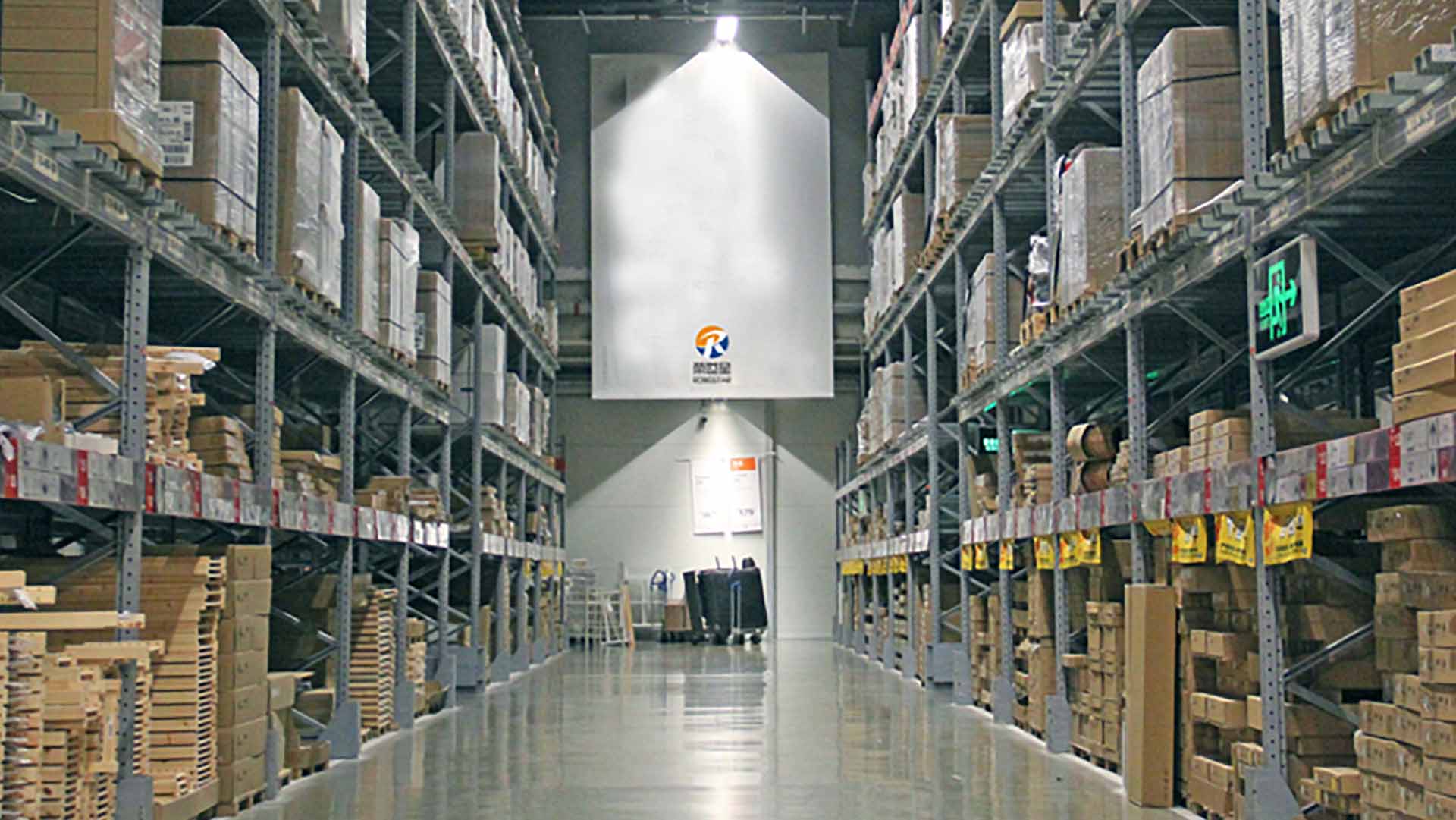

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
