VDWALL LVP605S HDMI led video processor with Linsn Novastar LED
VDWALL LVP605S LVP615S LVP603 HDMI led video processor with SDI HD-SDI Port work with LEEMAN DISPLAYLED Display Controller Card System.
No included the Novastar MSD300 Linsn ts802 sending card. LVP605S LED Video Processor,Perfect compatibility with Novastar Sending card, linsn sending card, C&light sending card, Dbstar sending card
Application
Large venus display applications such as: large-scale stage and theatre, Rental Performance,high-end meeting, TV broadcast center, exhibition etc
Note to Model
|
Model
|
Extended Model
|
|
605
|
Video
|
|
605D
|
VGA / DVI / HDMI
|
|
605S
|
SDI / HD-SDI / 3G-SDI
|
LVP605 LVP615S Series Product Specifications:
|
Outputs
|
|
VGA /DVI Format
|
2560x816@60Hz
2304x1152@60Hz
2048×1152@60Hz
1440×900@60Hz
1366×768@60Hz
1920×1080@50Hz / 60Hz
1600×1200@60Hz
1280×1024@60Hz / 75Hz
1024×768@60Hz / 75Hz
|
|
Nums / Type
|
1×VGA（RGBHV）
2×DVI
|
|
Output Connectors
|
DVI OUT1：24+5 DVI_I
DVI OUT2：24+1 DVI_D
VGA OUT：15pin D_Sub( Female )
|
|
VGA Scope / Impedance
|
R、G、B = 0.7 V（p_p）/ 75Ω
|
|
Inputs:
|
|
Video System
|
PAL / NTSC
|
|
Nums / Type
|
1×EXT.（Extended ）
1×DVI（HDMI）
1×HDMI（1.3a with HDCP）
2×VGA（RGBHV）
1×YPbPr
1×S-Video
3×Composite
|
|
Composite Video
Scope / Impedance
|
1V（p_p）/ 75Ω
|
|
S-Video Scope / Impedance
|
C：0.35V（p_p）/ 75Ω,Y：1.0V（p_p）/ 75Ω
|
|
VGA Scope / Impedance
|
R、G、B = 0.7 V（p_p）/ 75Ω
|
|
VGA Format
|
PC（VESA )(≤2048x1152@60Hz)
|
|
DVI Format
|
SD / HD（CEA-861 : (≤1920x1080@60Hz)
PC（VESA : (≤2048x1152@60Hz)
|
|
Input Connectors
|
VGA：15pin D_Sub( Female )
YPbPr: BNC×3
SDI / HD-SDI / 3G-SDI：BNC
DVI：24+1 DVI_D
S-VIDEO：4pin mini DIN( Female )
Composite：BNC
|
|
HDMI 1.3 Format( HDCP )
|
PC（VESA）:(≤2048x1152@60Hz)
SD / HD（CEA-861）:(≤1920x1080@60Hz)
|
|
YPbPr Scope / Impedance
|
Pr= 0.35V（p_p）/ 75Ω
Pb= 0.35V（p_p）/ 75Ω
Y= 1.0V（p_p）/ 75Ω
|
|
YPbPr Format
|
SD / HD（CEA-861）:(≤1920x1080@60Hz)
|
|
SDI format
|
SDI-SMPTE 259M-C:(576i @50Hz / 480i @60Hz)
|
|
HD-SDI 3G-SDI format
|
SMPTE 274M/296M: (≤1920 x 1080@50Hz / 60Hz)
HDSDI-SMPTE 292M :(≤1920 x 1080@50Hz / 60Hz)
SMPTE 424M/425M:(≤1920 x 1080@50Hz / 60Hz)
|
|
AUDIO Scope / Impedance
|
2.0Vp-p / 10KΩ
|
|
Other
|
|
Humidity
|
15-85%
|
|
Input Voltage
|
100-240VAC 35W 50/60Hz
|
|
Operating Temp
|
5-40 ℃
|
|
Control
|
Panel Button/ RS232/ Knob
|
|
Dimensions（Package)
|
535mm（L）x370mm（W）x145mm（H）
|

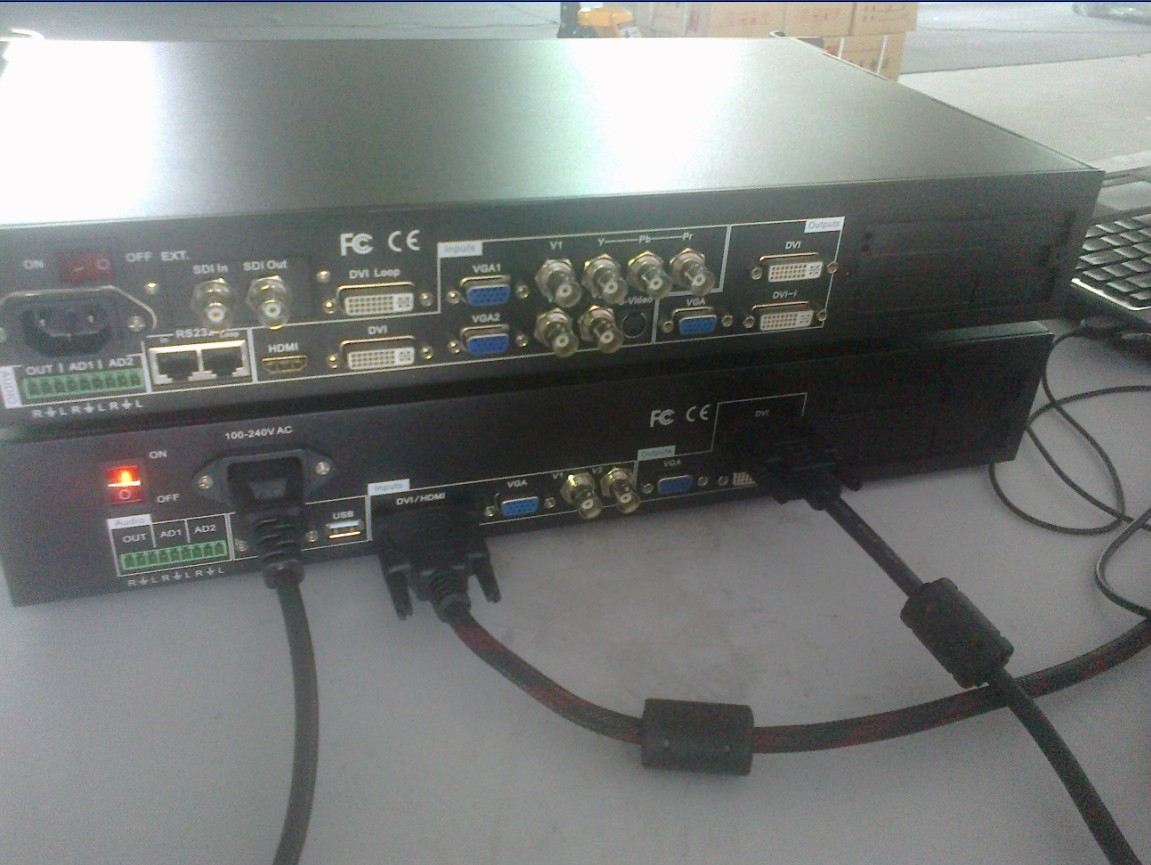

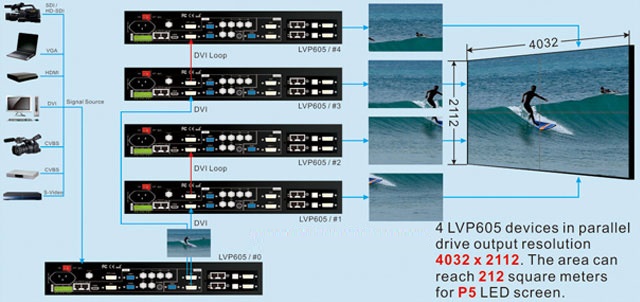

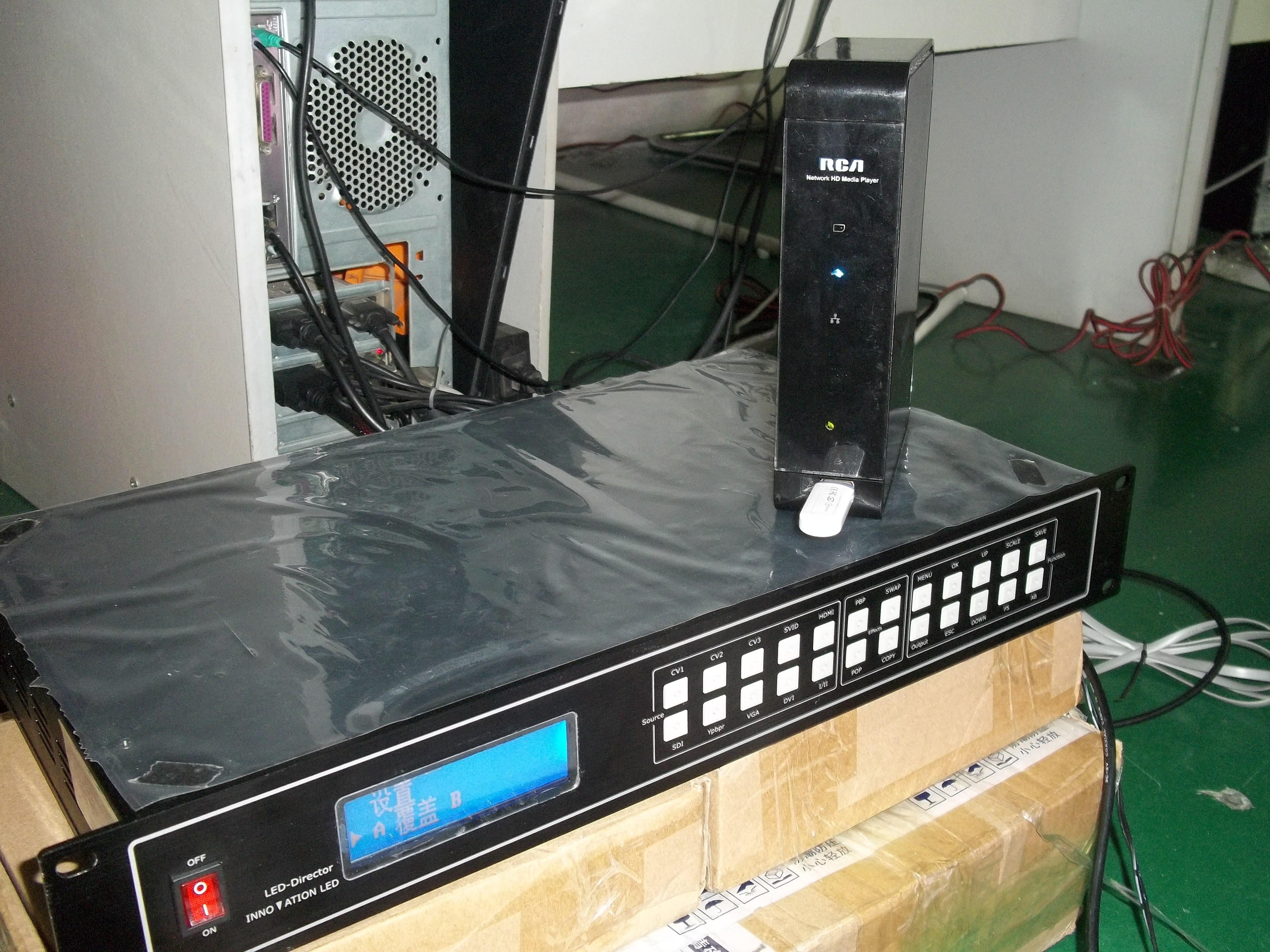

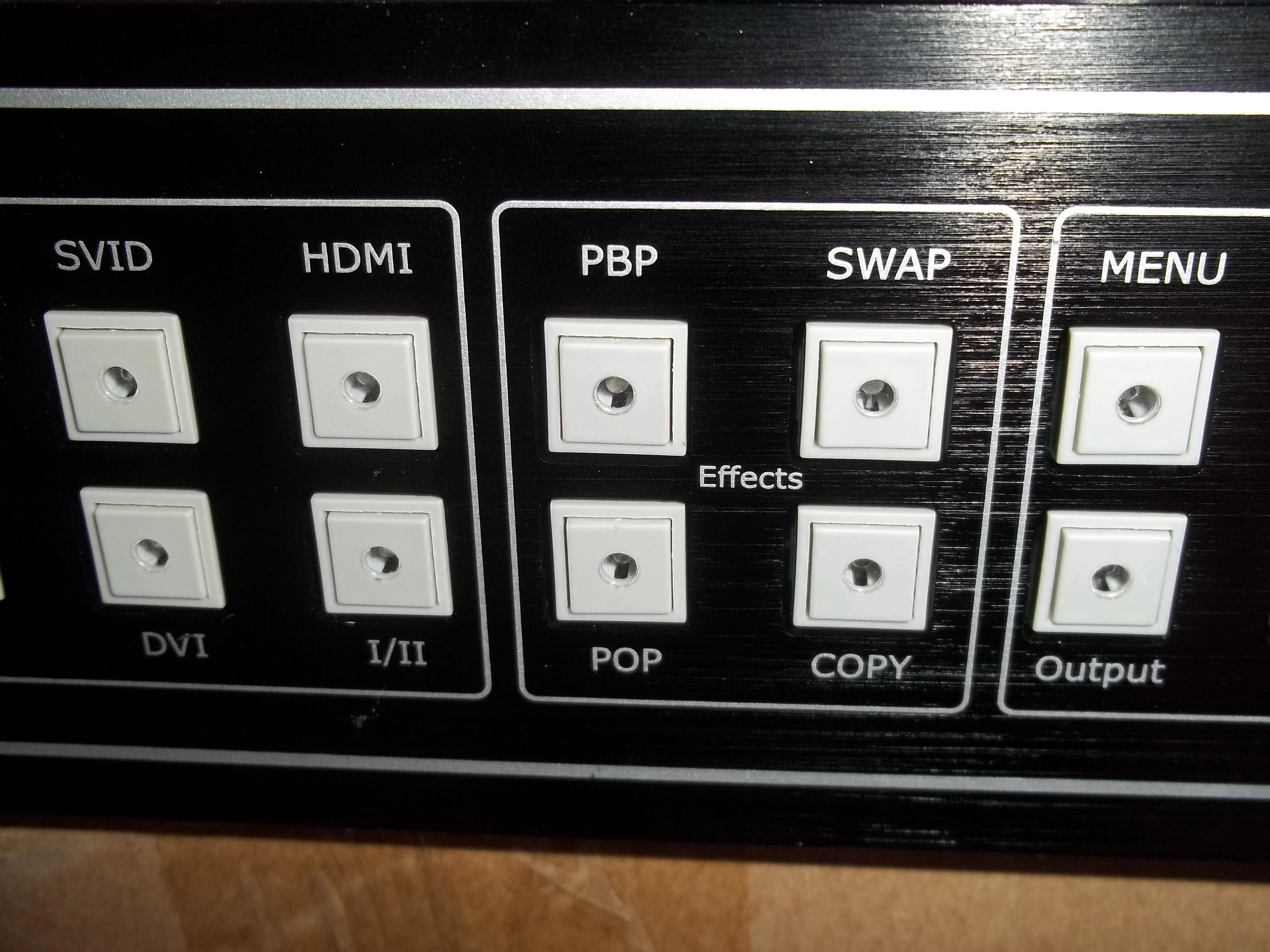

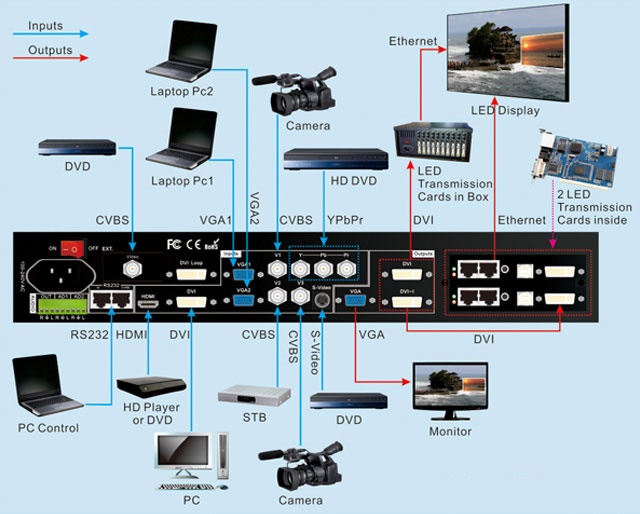

How Connection Diagram：
