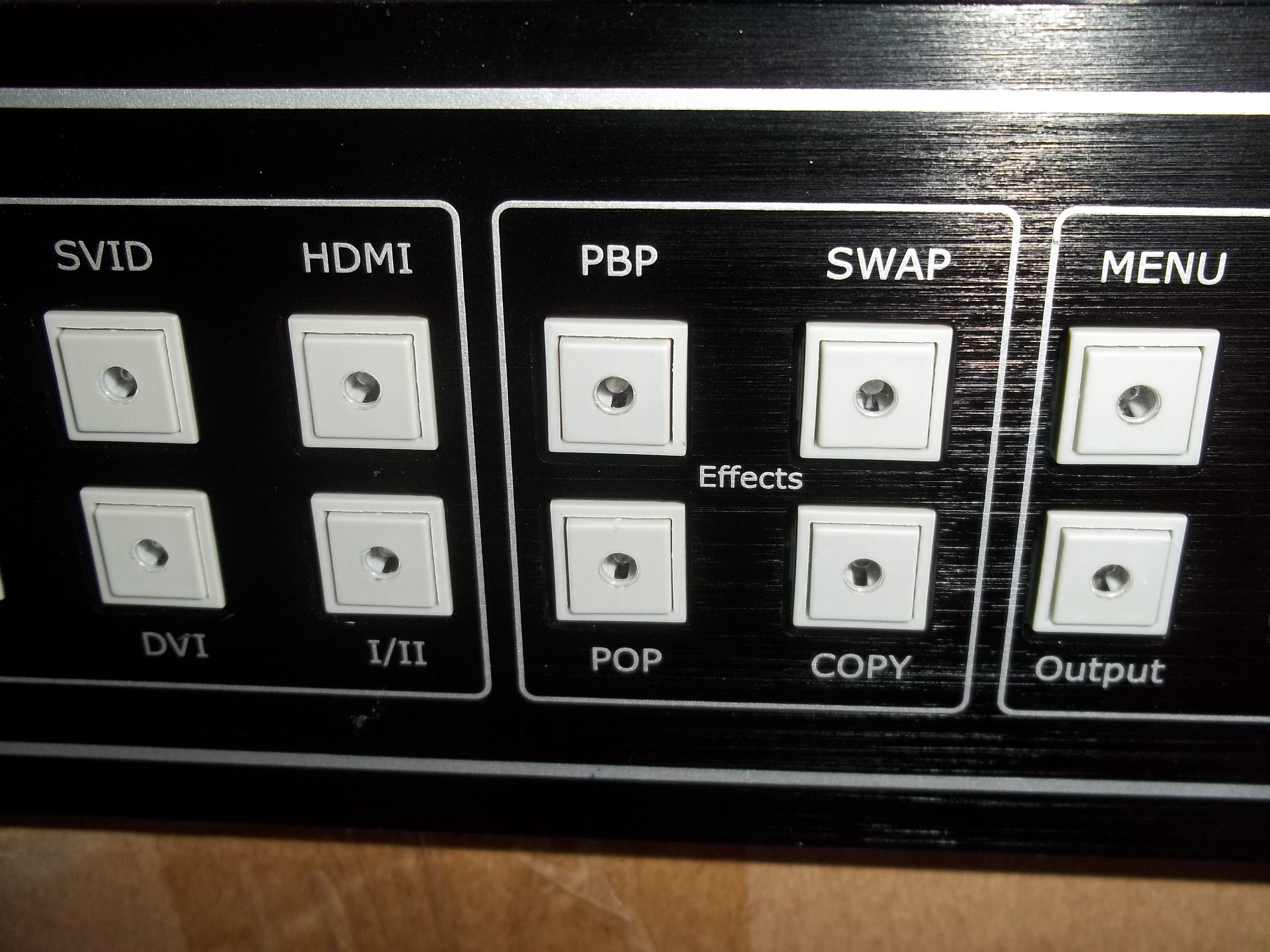

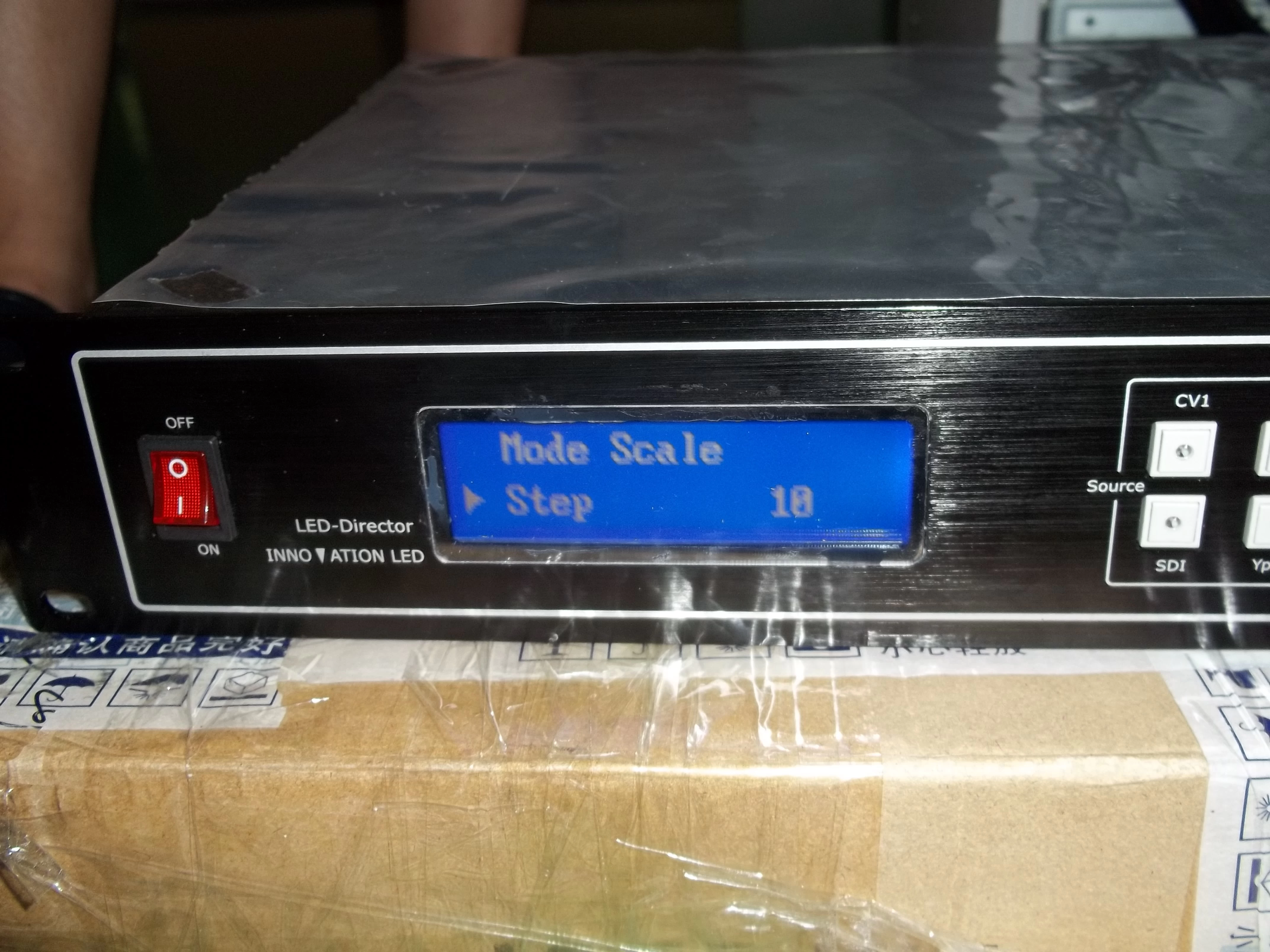

VDWALL LVP605S HDMI led video processor with Linsn Novastar LED
VDWALL LVP605S LVP615S LVP603 HDMI led video processor with SDI HD-SDI Port work with BarcoLED Display Controller Card System.
No included the Novastar MSD300 Linsn ts802 sending card. LVP605S LED Video Processor,Perfect compatibility with Novastar Sending card, linsn sending card, C&light sending card, Dbstar sending card
Application
Large venus display applications such as: large-scale stage and theatre, Rental Performance,high-end meeting, TV broadcast center, exhibition etc
Note to Model
|
Model
|
Extended Model
|
|
605
|
Video
|
|
605D
|
VGA / DVI / HDMI
|
|
605S
|
SDI / HD-SDI / 3G-SDI
|
LVP605 LVP615S Series Product Specifications:
|
Outputs
|
|
VGA /DVI Format
|
2560x816@60Hz
2304x1152@60Hz
2048×1152@60Hz
1440×900@60Hz
1366×768@60Hz
1920×1080@50Hz / 60Hz
1600×1200@60Hz
1280×1024@60Hz / 75Hz
1024×768@60Hz / 75Hz
|
|
Nums / Type
|
1×VGA（RGBHV）
2×DVI
|
|
Output Connectors
|
DVI OUT1：24+5 DVI_I
DVI OUT2：24+1 DVI_D
VGA OUT：15pin D_Sub( Female )
|
|
VGA Scope / Impedance
|
R、G、B = 0.7 V（p_p）/ 75Ω
|
|
Inputs:
|
|
Video System
|
PAL / NTSC
|
|
Nums / Type
|
1×EXT.（Extended ）
1×DVI（HDMI）
1×HDMI（1.3a with HDCP）
2×VGA（RGBHV）
1×YPbPr
1×S-Video
3×Composite
|
|
Composite Video
Scope / Impedance
|
1V（p_p）/ 75Ω
|
|
S-Video Scope / Impedance
|
C：0.35V（p_p）/ 75Ω,Y：1.0V（p_p）/ 75Ω
|
|
VGA Scope / Impedance
|
R、G、B = 0.7 V（p_p）/ 75Ω
|
|
VGA Format
|
PC（VESA )(≤2048x1152@60Hz)
|
|
DVI Format
|
SD / HD（CEA-861 : (≤1920x1080@60Hz)
PC（VESA : (≤2048x1152@60Hz)
|
|

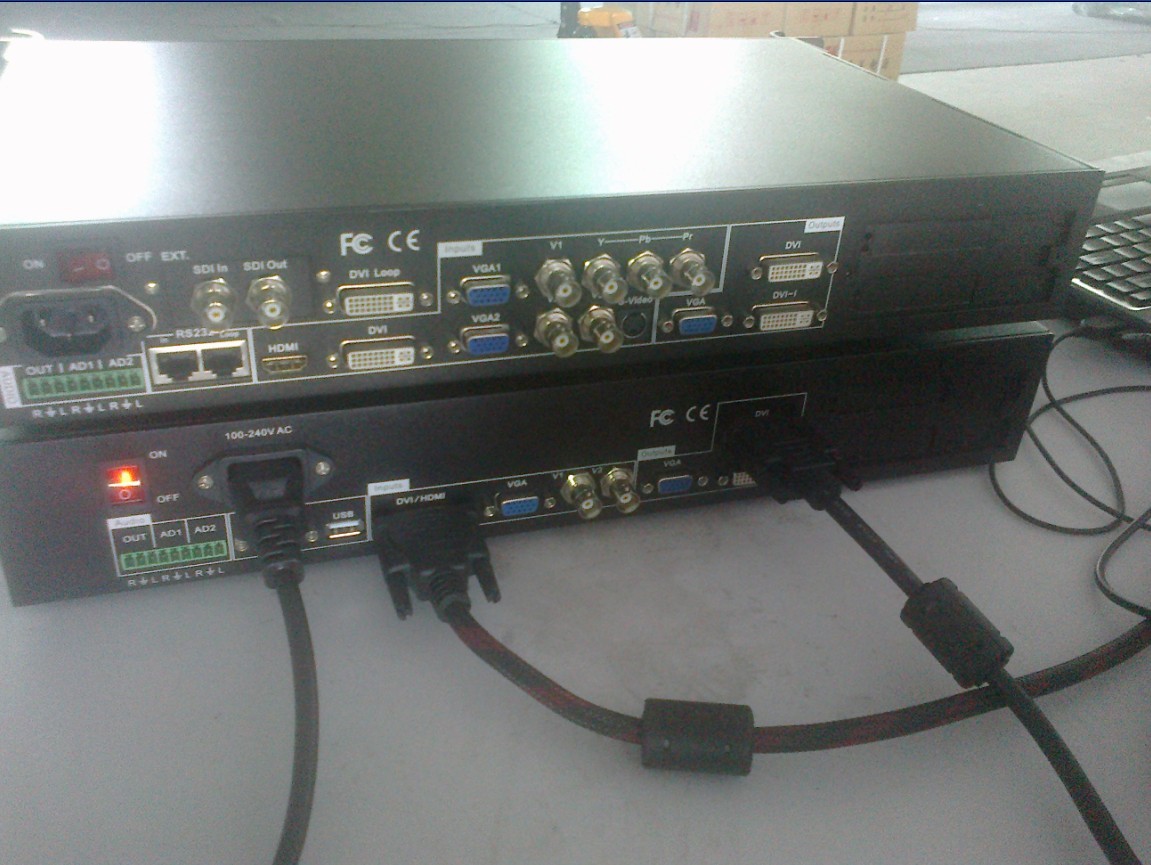

Input Connectors
|
VGA：15pin D_Sub( Female )
YPbPr: BNC×3
SDI / HD-SDI / 3G-SDI：BNC
DVI：24+1 DVI_D
S-VIDEO：4pin mini DIN( Female )
Composite：BNC
|
|
HDMI 1.3 Format( HDCP )
|
PC（VESA）:(≤2048x1152@60Hz)
SD / HD（CEA-861）:(≤1920x1080@60Hz)
|
|
YPbPr Scope / Impedance
|
Pr= 0.35V（p_p）/ 75Ω
Pb= 0.35V（p_p）/ 75Ω
Y= 1.0V（p_p）/ 75Ω
|
|
YPbPr Format
|
SD / HD（CEA-861）:(≤1920x1080@60Hz)
|
|
SDI format
|
SDI-SMPTE 259M-C:(576i @50Hz / 480i @60Hz)
|
|
HD-SDI 3G-SDI format
|
SMPTE 274M/296M: (≤1920 x 1080@50Hz / 60Hz)
HDSDI-SMPTE 292M :(≤1920 x 1080@50Hz / 60Hz)
SMPTE 424M/425M:(≤1920 x 1080@50Hz / 60Hz)
|
|
AUDIO Scope / Impedance
|
2.0Vp-p / 10KΩ
|
|
Other
|
|
Humidity
|
15-85%
|
|
Input Voltage
|
100-240VAC 35W 50/60Hz
|
|
Operating Temp
|
5-40 ℃
|
|
Control
|
Panel Button/ RS232/ Knob
|
|
Dimensions（Package)
|
535mm（L）x370mm（W）x145mm（H）
|

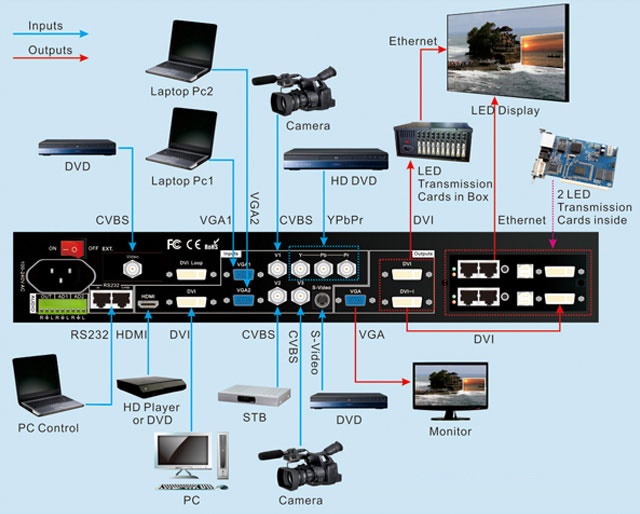

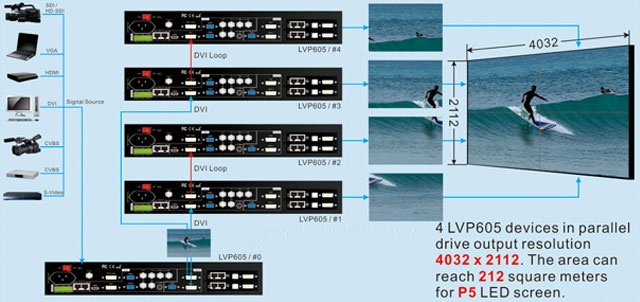

How Connection Diagram：
