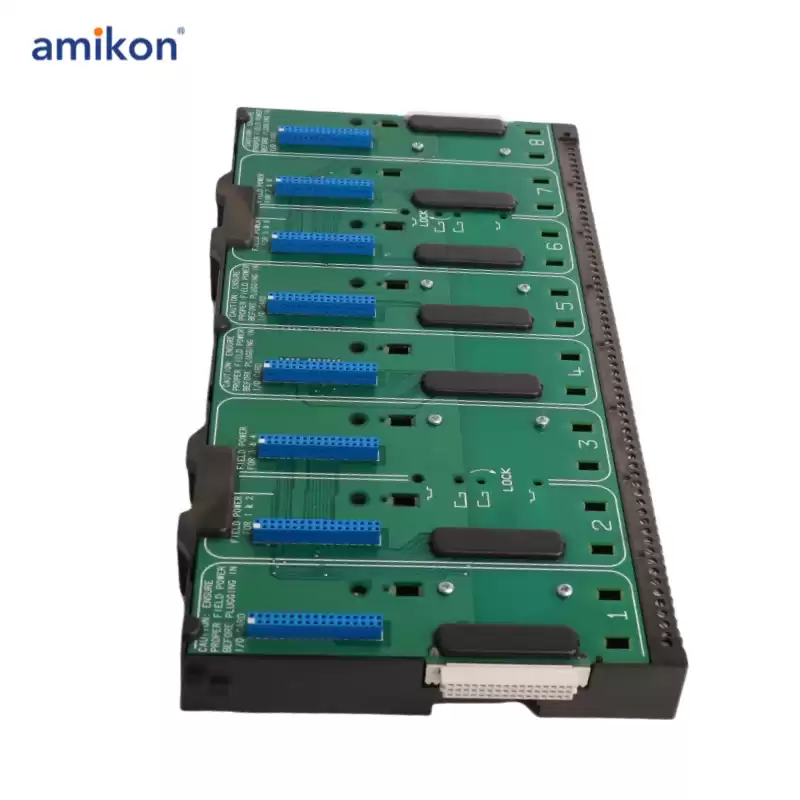

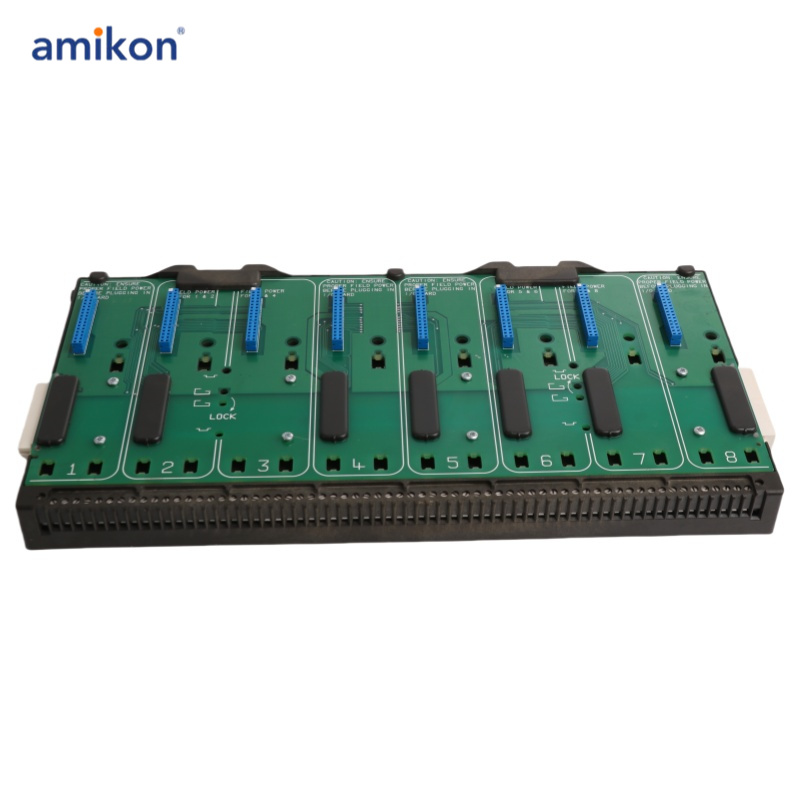

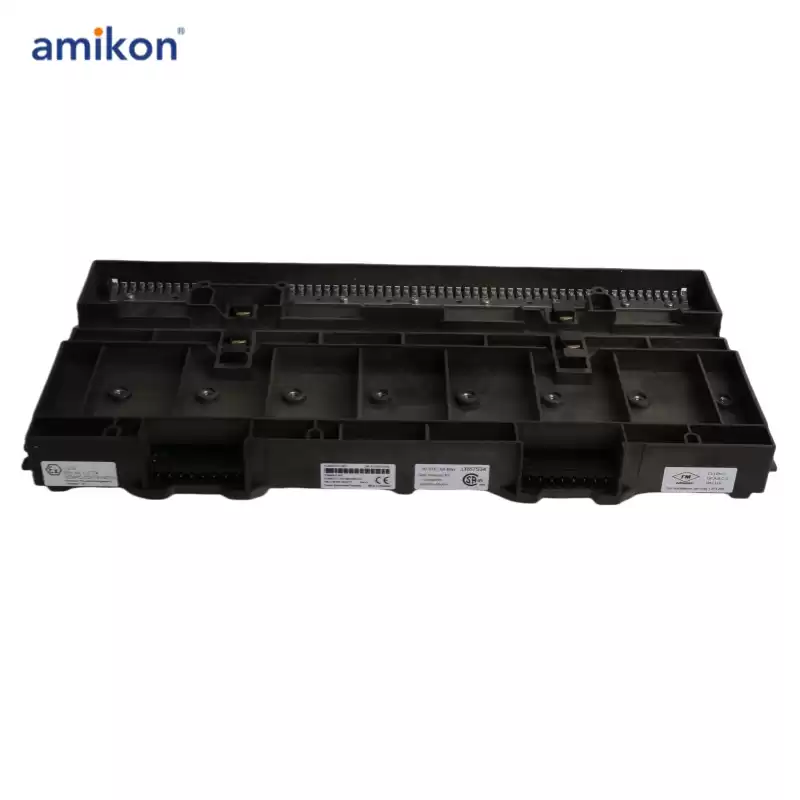

VE4050E1C2 EMERSON DeltaV M-series I/O Subsystem Horizontal Carriers
The VE4050E1C2 is a reliable and high-performance redundant interface card in the Emerson DeltaV M-Series. It is engineered to facilitate seamless communication between field devices and the DeltaV control system, ensuring optimal process automation and control in demanding industrial environments.
The I/O interface carrier plugs on to the power/controller carrier. The power/controller carrier supplies the system power and communications between the I/O interfaces and
the controller. The controller processes the I/O interface information. An additional power/controller carrier is required for use with redundant controllers.
Mount your interface carrier on a T-type DIN rail. The I/O interface carrier includes the connections for the bulk 24 V DC field instrument power, I/O interfaces, and terminal blocks.
Each VE4050E1C2 I/O interface carrier is equipped with a connector that allows an additional I/O interface carrier to be plugged on to it.
Up to 64 I/O interfaces on eight 8-wide I/O interface carriers are supported by a single I/O subsystem. For the horizontal-mount solution, 1-wide local bus extenders allow you to continue the I/O bus on a different row of carriers. There are two types of 8-wide I/O interface carriers available. They both have connectors for field power on the top of the carrier. The original carrier connects each set of field power terminals to two I/O
cards, and the other option have individual field power per card slot and is ideal if separate field power is required for redundant I/O cards.
Benefits
Modular design allows flexible installation. A T- type DIN rail is all you need to mount the power/controller carrier into place. The I/O interface carrier plugs on to the power/controller carrier. Simply plug your I/O terminal blocks into the carrier.The DeltaV system’s modular design approach allows you to add I/O carriers as you need them.Allows you to expand online. Additional 8-wide carriers may be added online as desired. Carrier extenders give you the flexibility to install VE4050E1C2 I/O carriers in multiple rows with 1,2,3 or 4 carriers per row.
Integrated power distribution. Controller and I/O interface power distribution is integrated into the carriers to reduce and simplify power and grounding. Carriers also have integrated shield ground bar to isolate and drain field noise away from system power.
