Vehicle Access Control Long Range UHF RFID Reader with SDK

Long range UHF integrated readers are widely used for vehicle access control system and parking lot.


  • CertificationFCC/CE
  • InterfaceRS232/RS485/RJ45/Wiegand 26/34

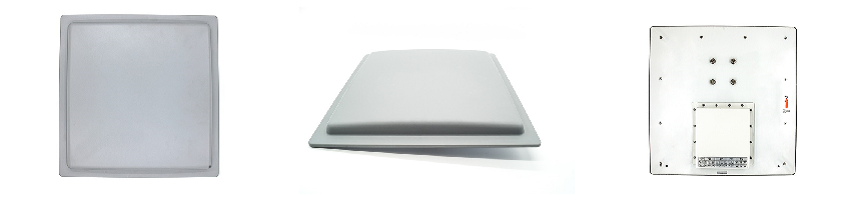

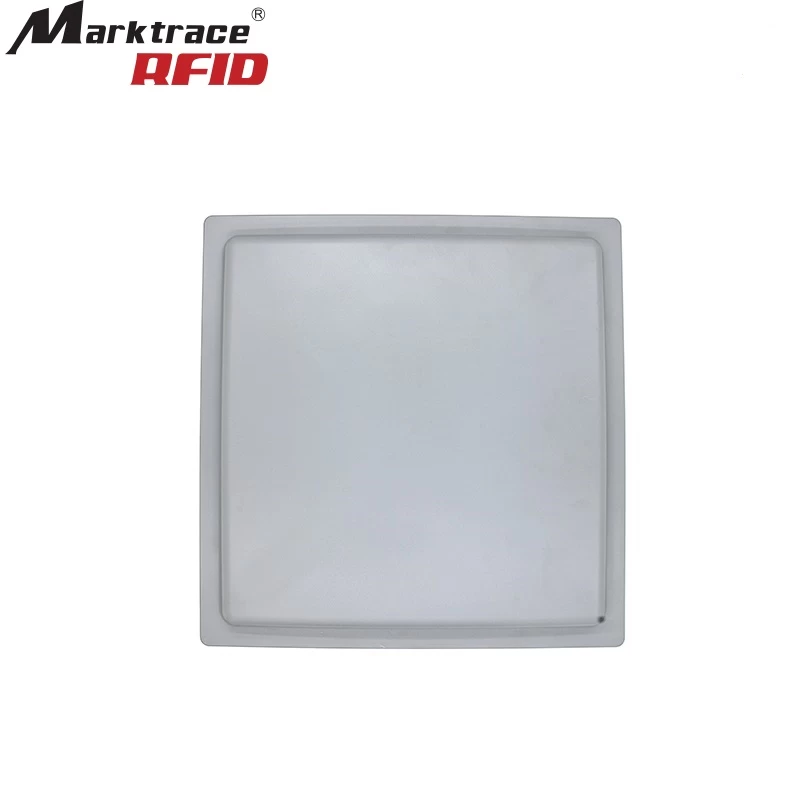

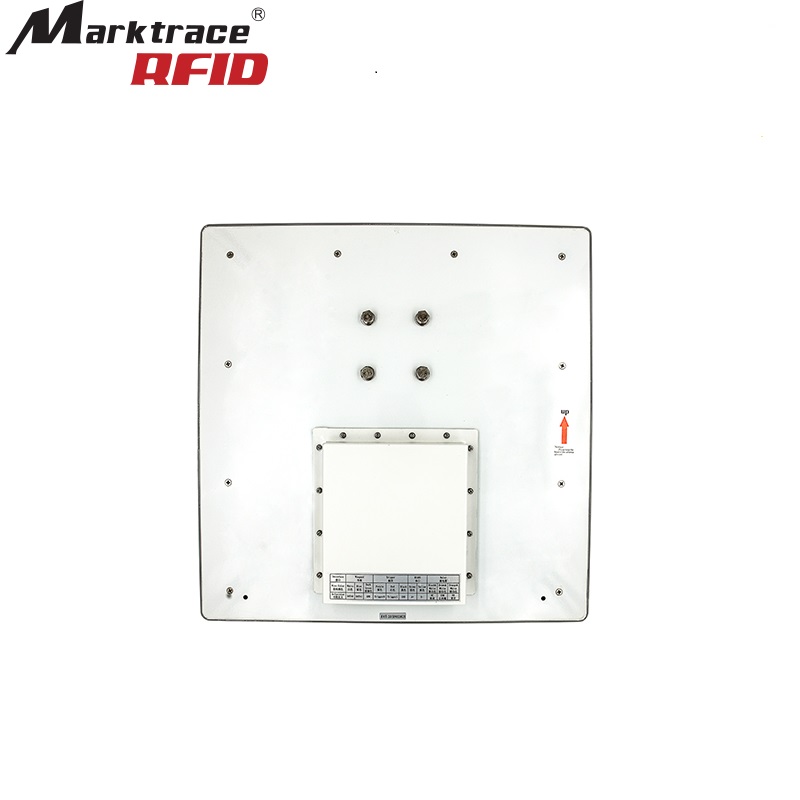

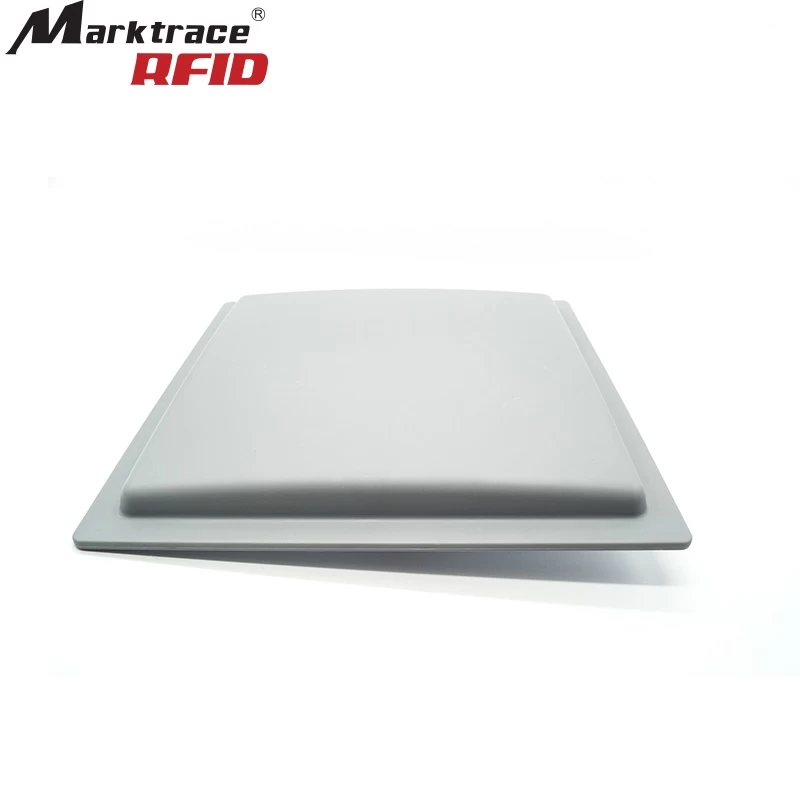

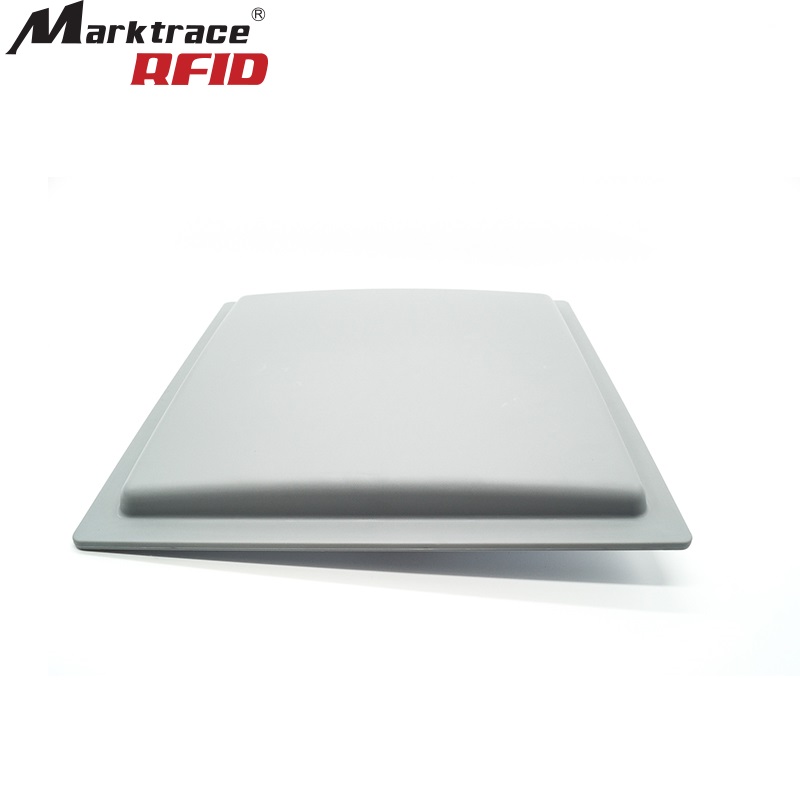

Vehicle Access Control Long Range UHF RFID Reader with SDK


Vehicle Access Control Long Range UHF RFID Reader with SDK

MR6211E UHF RFID reader based on new generation reader technology platform development.

Combined UHF RFID advanced technology and many years experiences based on RFID market.

MR6211E UHF long range integrated RFID reader is more stable and can be used in various applications

RFID reader communicates wirelessly through the antenna and RFID tag

Realizing the read of tag identification codes and memory data, controlling unit

and the reader antenna.

The electromagnetic clutch is coupled with radar principle.




Long Range UHF RFID Reader Specification


Model No.: MR6211E

Frequency: US(902~928MHz), China(920~925MHz), EU(865~868MHz), customized

Protocol: ISO18000-6C, EPC G2

RF Power: 0~31dBm adjustable

Sensitivity: -80dBm(12dBi antenna more than 12m)

Read Speed: Multi-tag 200pcs/second,single tag 2000times/minute

Processor: ARM CORTEXM3 100MCPU

Memory: 16KB tag data memory and 32KB ferroelectric memory

Data Interface: 100M Ethernet interface(TCP/IP), RS232/RS485, Wiegand26/34

One team input and one team output(TTL),one team Relay

Dimension: 440*440*68.6mm

Power Supply: DC+9V~+15V

Certifications: FCC, CE, CCC





Our Advantage


1.Built-in 12dBi linear polarization antenna

2.Reading range of 12 meters

3.Waterproof & Dustproof

4.Easy using for vehicle tracking

5.Microwave RFID card reader reaches strong penetrability

6.Long communication distance and anti-collision performance

7.Strong security stability and fast reading speed


Application

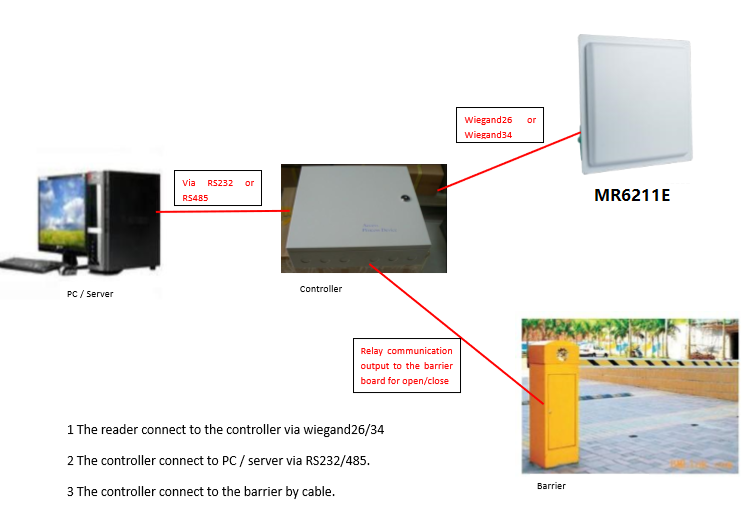

1.Safe City 2. Parking lot 3. Vehicle Tracking System
