GL4000-A1 Vehicle Repair Equipment Curtain Spray Paint Cabinet with CE
Guangli Spray Booth Description:
Main room & basement:
Wall panel: sandwich style, δ=50mm,rock wool available as required.
Basement: steel structure, full grids，ramp: 2 pcs of grids.
Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
Lengthened room as optional: outside size: 7.6*5.6*3.5(m) inside size:7.5*3.9*2.7(m)
Fans & ducts
One 11kw intake fan and one 11kw exhaust fan.
4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
1 manual VCD exhaust damper, electrical VCD as optional. one pressure meter.
Spraying/baking transition damper, automatically air controlled.
Heat & filter system:
Heat exchanger: stainless steel. Riello G20 burner.
Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
5 pcs of floor filter and 2 pcs of air mouth filter.
Light & control system:
Upper light: 10 sets, 4*40w per set. side lights: 8sets, 4*40w.
Control box: imported components, overload, overheat, phase-lacking, phase-locking protection,
engine y/△ start.
Automatically stop when preset time is up.
Constant temperature spraying.
Environmental filter :the equipment can be adopted m style activated carbon or drawer style activated carbon.
|
Technical Specifications
|
GL4000-A1-CE
|
|
External size(m) (LxWxH)
|
7.0×5.3×3.5
|
|
Internal size(m) (LxWxH)
|
6.9×3.9×2.7
|
|
Door width(m)
|
3.0
|
|
Door height(m)
|
2.66
|
|
Air flow ( m3/h)
|
24000
|
|
Inside no-load air speed(m/s)
|
0.25-0.35
|
|
Water-based Device
|
As option
|
|
Temperature(℃)
|
20-80
|
|
Power (Kw)
|
25
|
|
Color
|
Orange,Blue,Red,White
|
|
Vehicle suited
|
Saloon car
|
|
Exhaust type
|
Full-undershot,Bilateral,Semi-down,Unilaternal
|

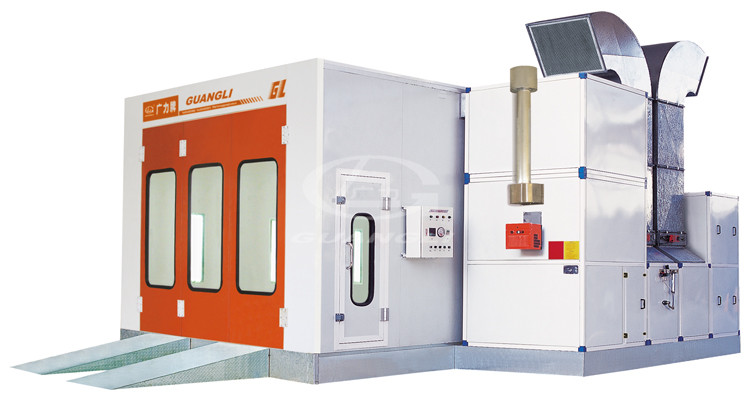

Guangli Spray Booth Show
