Description

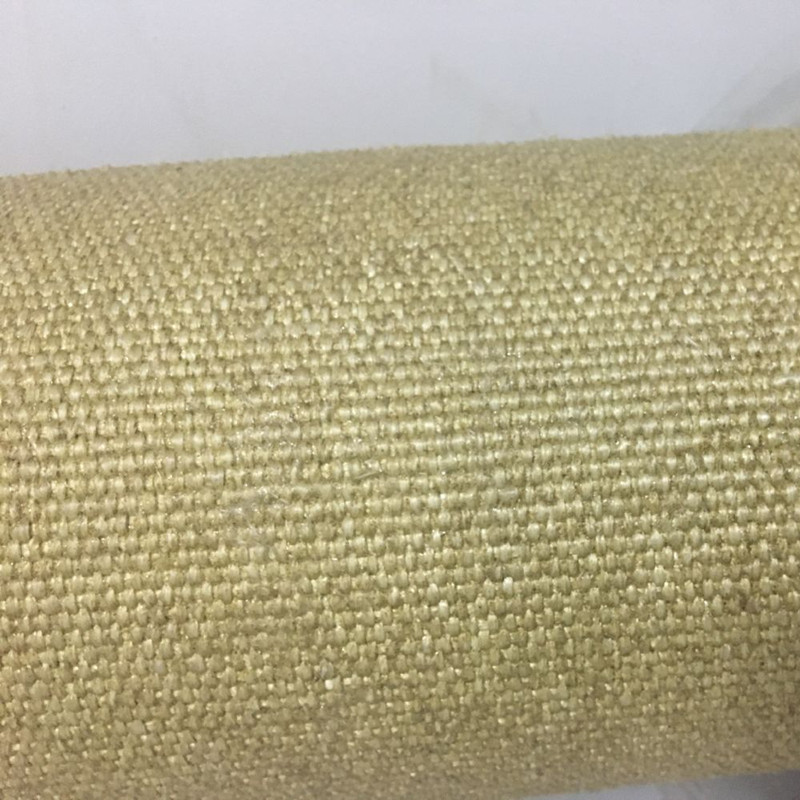

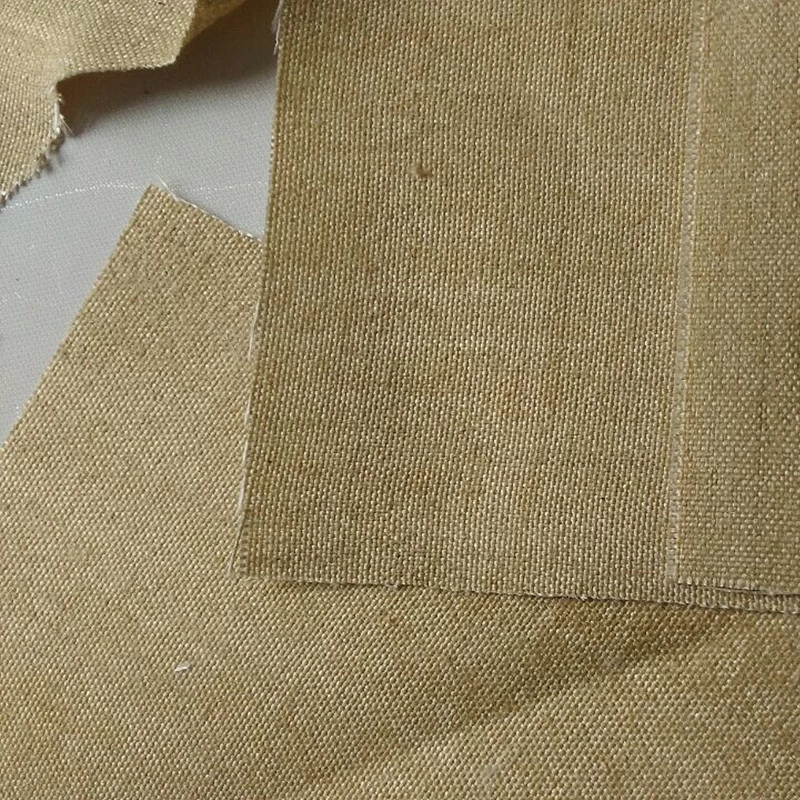

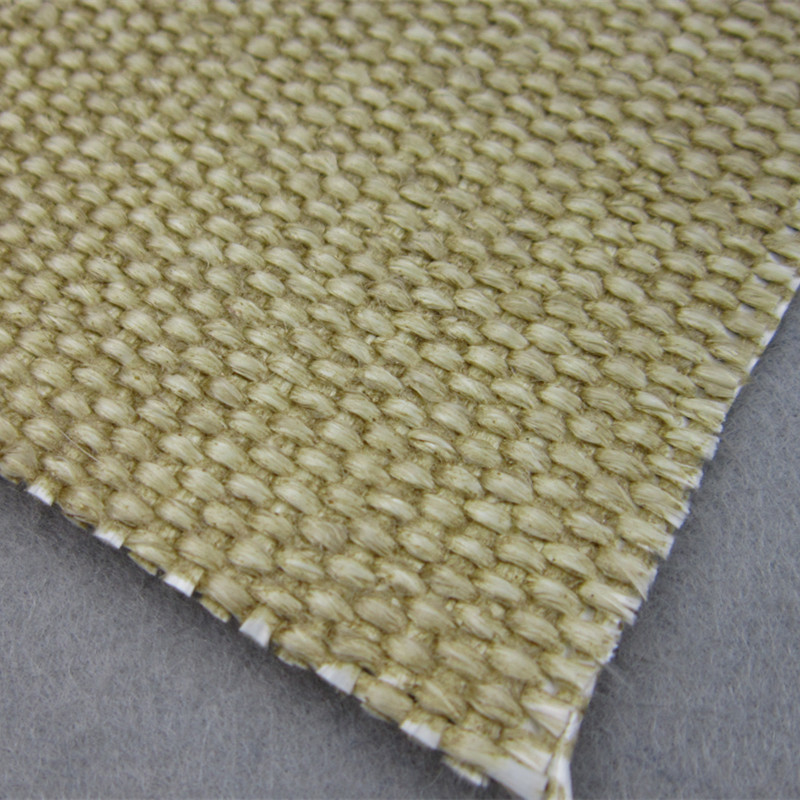

Vermiculite Coated Fiberglass Fabric Textiles are 100% fiberglass coated with vermiculite solution made of plate-like mineral crystals. This non-combustible coating acts like armor when heat strikes the fabric, causing the heat to travel across the fabric rather than through it, shielding the fiberglass from the heat source.
Features
Remains stable to 1500°F (815°C) (Upper Temperature Limit)
Continuous operating temperature 1000°F (540°C)
Non-combustible vermiculite-coated fiberglass
50% More protection than fiberglass
Improved abrasion resistance
Coating acts as armor to the fiberglass, providing better resistance to direct flame
Application
Used for Welding Protection, Furnace Curtains, Pipe Wrapping/Lagging, Expansion Joints, Heat Shield/Containment, Machinery Protection, Removable Flange/Valve Covers, Stress Relief, Exhaust Manifold Wrap and more.
Specifications
|
DATASHEET
|
|
Part NO.
|
Weight
|
Thickness
|
Width
|
Length
|
|
oz/yard
|
g/mtr
|
inch
|
mm
|
Inch
|
cm
|
yard
|
meter
|
|
FGF-VC-0.8
|
18.00
|
615.00
|
0.031
|
0.80
|
40
|
100
|
54.70
|
50
|
|
FGF-VC-1
|
24.00
|
816.00
|
0.039
|
1.00
|
40
|
100
|
54.70
|
50
|
|
FGF-VC-1.5
|
30.00
|
1020.00
|
0.059
|
1.50
|
40
|
100
|
54.70
|
50
|
|
FGF-VC-2
|
40.60
|
1380.00
|
0.079
|
2.00
|
40
|
100
|
54.70
|
50
|
|
FGF-VC-2.5
|
49.50
|
1680.00
|
0.098
|
2.50
|
40
|
100
|
54.70
|
50
|
|
FGF-VC-3
|
56.00
|
1900.00
|
0.118
|
3.00
|
40
|
100
|
54.70
|
50
|
|
Technical Datasheet
|
|
Material
|
Vermiculite, fiberglass
|
|
Working temperature
|
-40℃ - +815℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+1350℃
|
|
Standard Color
|
Nature
|
|
Standard Thickness
|
0.8 mm
|
|
MOQ
|
50 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special thickness upon request
Special length or packing upon request.
