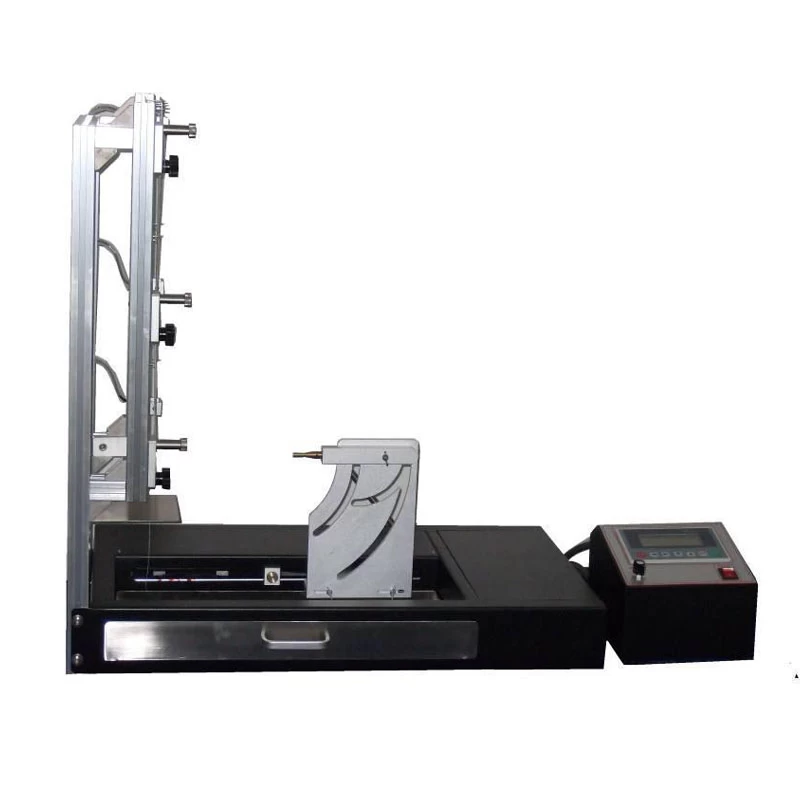

AG31-Vertical Combustibility Tester
Application Of Vertical
Combustibility Tester
Vertical Combustibility Tester is used to test
the vertical flammability of fabric under certain condition. Suitable for
single-layer fabric, multilayer fabric, down fabric.
Feature Of Vertical Combustibility Tester
1. Nozzle can rotate 1-90°, meet angle requirement of
different standards, and convenient for flame height measurement.
2. Nozzle can left-right control, suitable sample with
different thickness.
3. With flame height rotation button, button control the move
of nozzle.
Standards Of Vertical Combustibility Tester
GB/T
5456, 8745、8746, BS EN ISO
6940,6941,15025, BS 5438, BS EN532,33,1103, EN71, ISO 10047.
Key Specification Of Vertical Combustibility Tester
|
Model
|
AG31 Vertical Combustibility Tester
|
|
Control model
|
PLC/Touchscreen control
(option)
|
|
Ignition time setting range
|
0-99.99 s, ±0.01s
|
|
Flame height
|
0-60mm, adjustable
|
|
Nozzle specification
|
According standard requirement
|
|
Burning gases
|
butagas
|
|
Nozzle angle
|
0°,
22.5°, 90°,
adjustable
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
80*55*66cm
|
|
Weight
|
45kg
|
