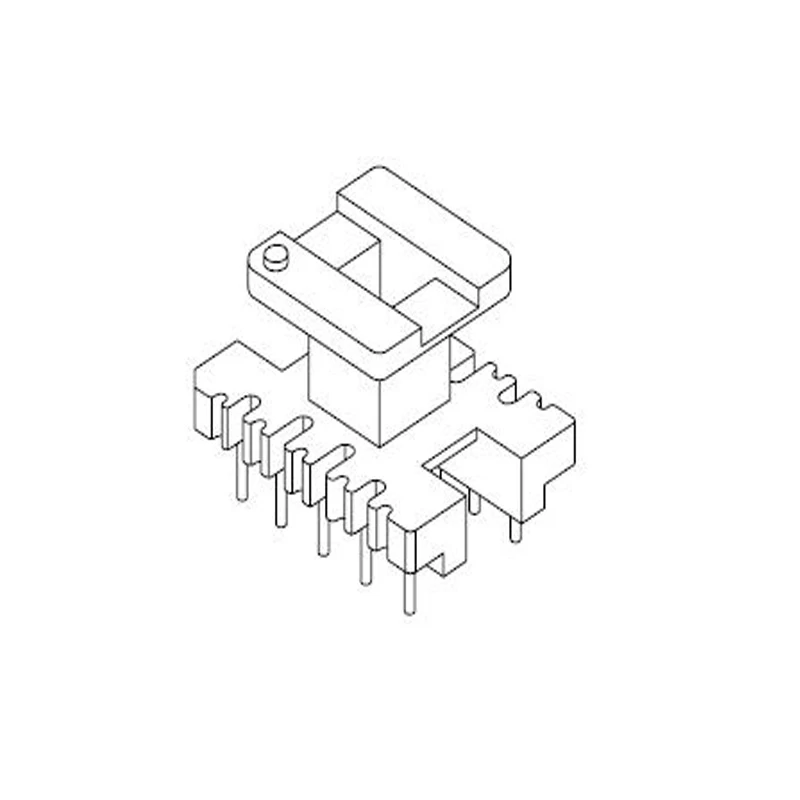

Vertical EE22 Switching Transformer 5+5 Pin bobbin

EE22 high frequency transformer. 5+5 pin EE20 vertical transformer frame. Bobbin Size=22.2mmX15.8mmX18.0mm. Pin Pitch=4.0mm. Row distance=10.0mm. EE22 transformers widely used in switching power supply, LED lights, NC machine, measurement and control unit.



Small electronic transformer, EE22 vertical shape coil former, good quality and low price, welcome trial order and customized inducto.


Quick Details

PNMCT-EE2201

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: Vertical EE22 Switching Transformer 5+5 Pin bobbin

Product Range: Transformers,Filters,Coils,Relays,Bobbins,Magnetic cores.

Applications: SMPS transformer,LED drive transformer,power charger transformer,encapsulated transformer.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

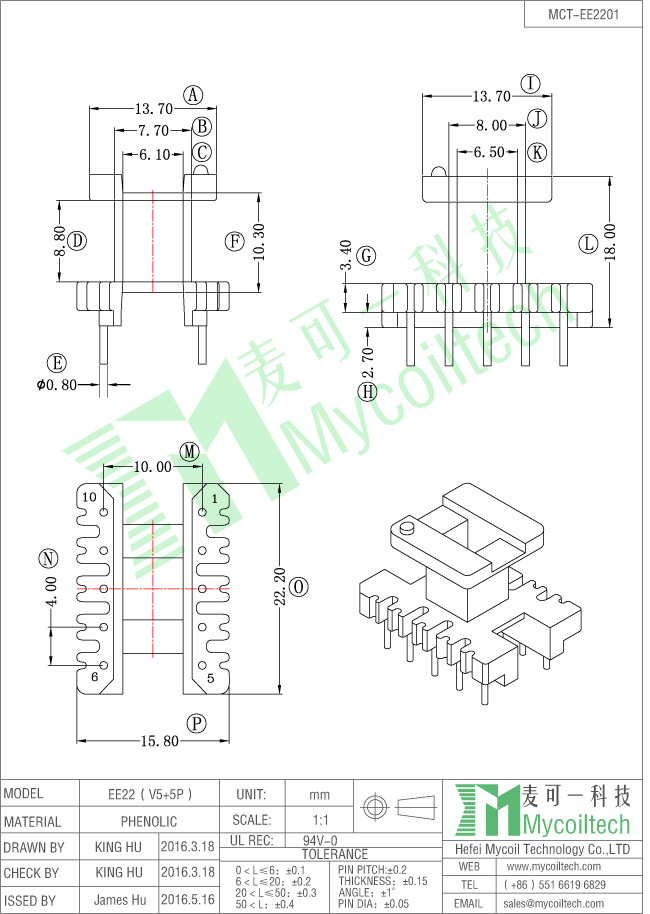

Product Specification

EE22 computer transformer bobbin


For more details, welcome to contact us.

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily
