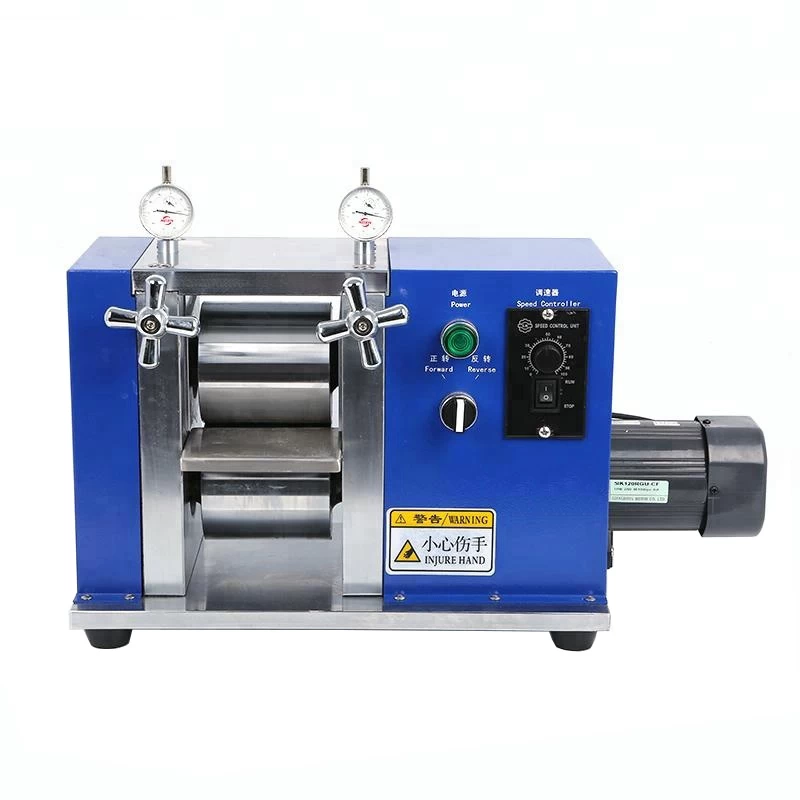

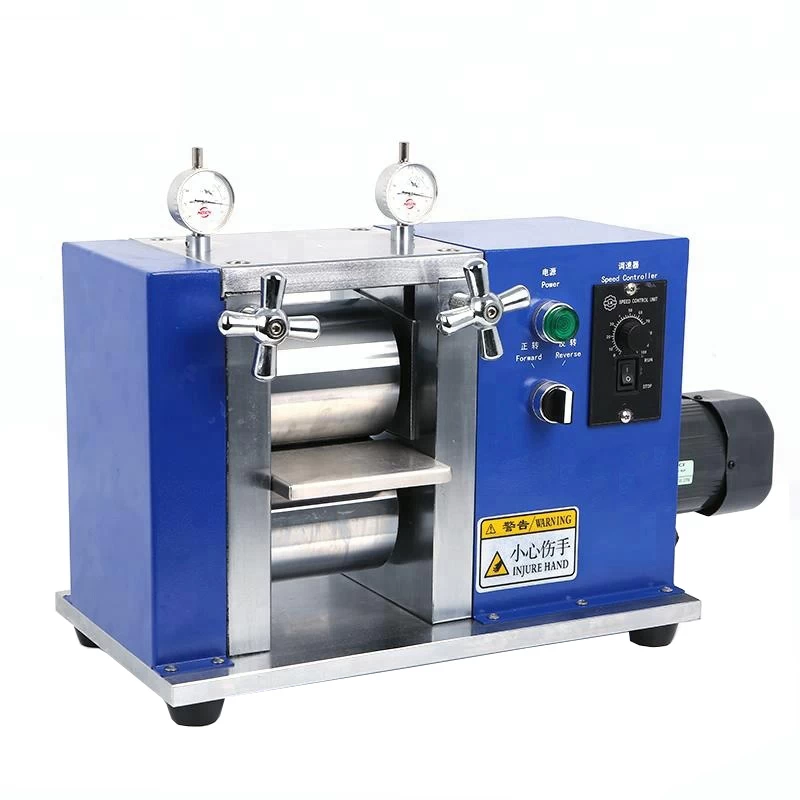

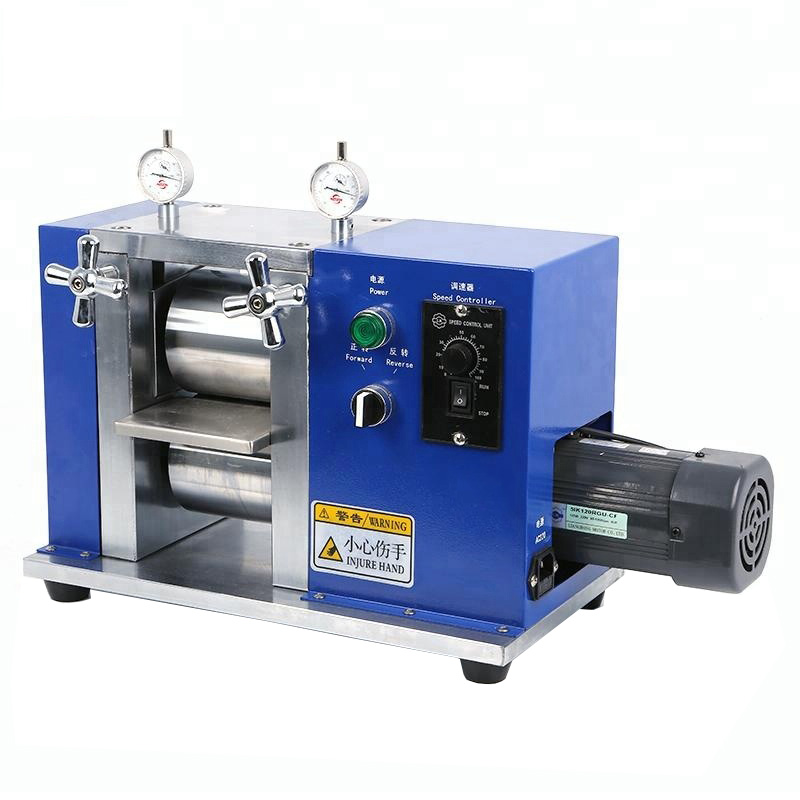

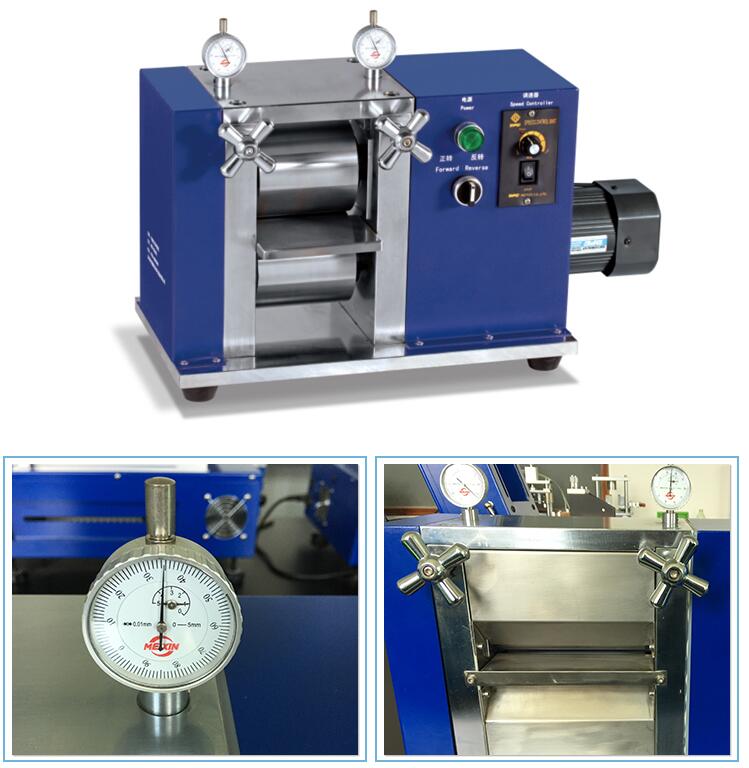

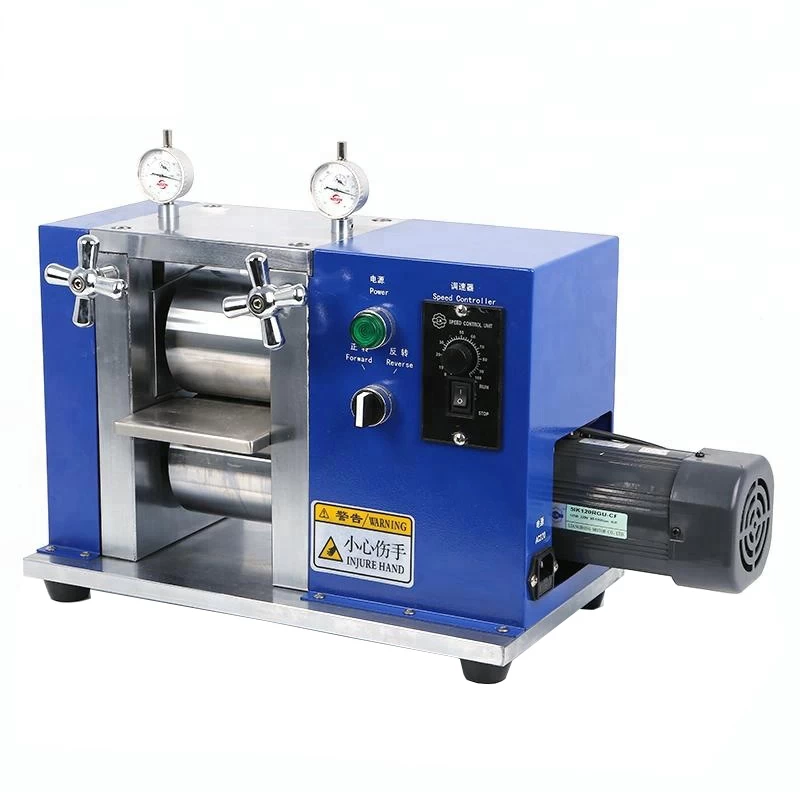

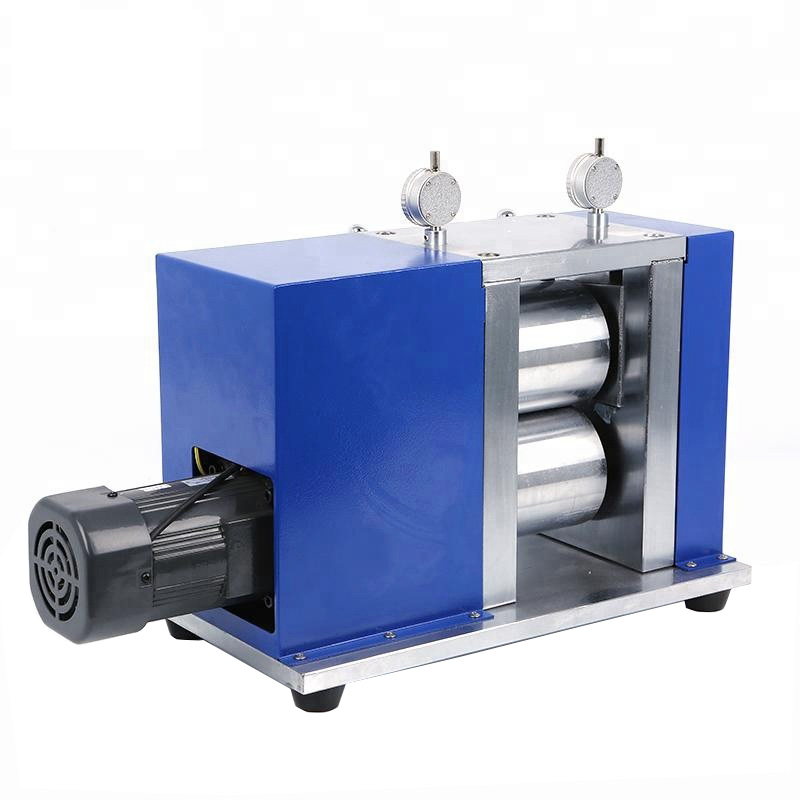

Vertical electric roller press machine for battery electrode calendering
This equipment is mainly used for electric rolling press of battery materials, a few precious metal materials like gold and silver, nonferrous materials like copper and aluminum in lab .
Features :
1. Hard chrome plated on surface.Material HRC62.

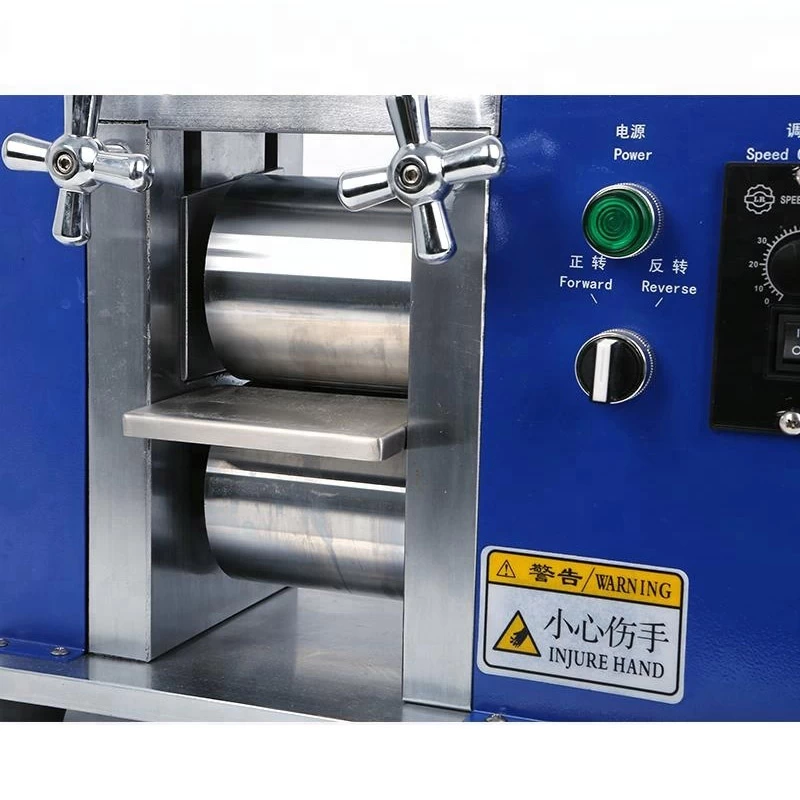

2. Transparent protective plate is designed for safety operation .
3. Press gap is adjustable .
4. Rolling speed , press thickness is adjustable .
Application :
Battery lab
Battery research
Lithium ion battery lab
Material research
Trial-production
|
Battery Lab Equipment of Electric Roller Press
|
|
Item Name
|
Battery material presser AOT-ERP-100
|
|
Watt
|
100W
|
|
Voltage
|
220V
|
|
Roller material
|
HRC62
|
|
Roller diameter
|
96mm
|
|
Ra
|
>0.8um
|
|
Press gap
|
0-2mm adjusted
|
|
Rolling width
|
0-100mm adjusted
|
|
Rolling speed
|
0~40mm/s adjusted
|
|
Size
|
L385mm*W245mm*H355mm
|
|
Weight
|
60KG
|
|
Application Notes
|
This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.
1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting
2 Coated Rust-proof oil if machine were to be unused for a long period of time
3 The minimum thickness of the rolled sheet should depend on the physical property
of the materials. Here are some results from our test:
|
Electrode
|
Size
|
Original
thickness
|
Finished thickness
|
|
LiFePO4
double sides
|
W50mm x L260mm
|
0.205mm
|
0.09mm
|
|
LiMn2O4
double sides
|
W50mm x L260mm
|
0.205mm
|
0.09mm
|
|
Copper foil + graphite
(single side)
|
W75mm x L240mm
|
0.09mm
|
0.04mm
|
Sample testing is available upon customer's request
|
