Vertical Encapsulated Common Mode Choke Coils with High Frequency

Vertical encapsulated common mode choke has small profile, large current, low resistance, high frequency and low loss, common mode filter and toroidal inductor.It is excellent EMI suppressor.



Hefei Mycoil Technology Co.,TLD is professional common mode chokes manufacturer, our factory is made up of 500 people, huge output can be finished every day. We have a technical team consist of 5 experienced engineers, if you are looking for encapsulated common mode chokes, you can send your specification to us. All materials are environmental protected. We accept custom made and design service.


Quick Details

Part No: MCT Case Potting18C Series Common Mode Choke



Brand name: MCT

Type: Choke Inductor



Custom made: Available

Testing frequency: 1KHz/0.25V



Logo: Can be customized

Operating temperature:-40°C~+105°C.



Shipping: Air, Ship, etc

Certification: ISO9001,ROHS,CE



MOQ: Any quantity

Lead time: 25 days after payment



OEM: Available



Part Information

Product Name: Vertical Encapsulated Common Mode Choke Coils with High Frequency

Applications: Low Frequency AC Reactor. PC USB interface cable. Solar Power System. LCD panels. Power Conditioning System. Wind Power System. Automatic Drive Machine. RFI Suppression Choke

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

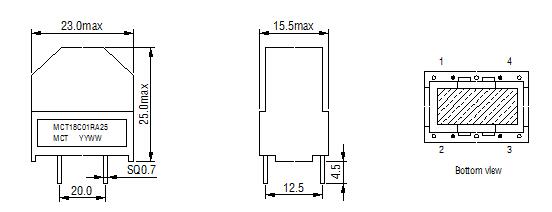

Product Specification

Popular encapsulated common mode choke manufacturer


Typical electrical parameter

MCT Part No.

Inductance(mH) min

DC Resistance(Ω)max

Rated Current(A)

MCT18C033A03

33.0

1.70

0.5

MCT18C027A04

27.0

1.20

0.6

MCT18C018A05

18.0

0.60

0.8

MCT18C012A09

12.0

0.50

0.9

MCT18C010A07

10.0

0.40

1.0

MCT18C06RA10

6.80

0.30

1.2

MCT18C03RA15

3.90

0.20

1.5

MCT18C01RA20

1.80

0.10

2.2

MCT18C01RA25

1.00

0.05

3.0


We can design for you,
if you have any requests, please contact us, we will give you fast reply.
