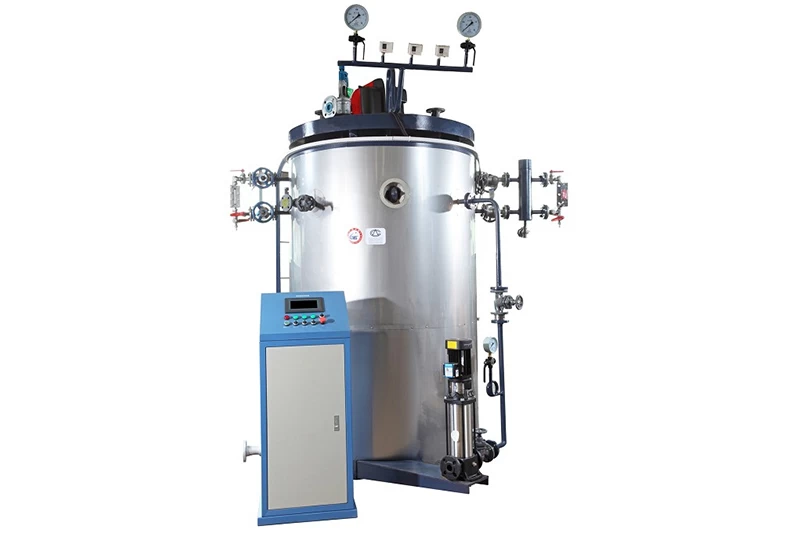

Vertical Steam Boiler
Devotion LSS Vertical Steam Boilers are available under 2 ton per hour.
Rated steam output ranges 0.3, 0.5, 0.75, 1.0, 1.5, 2 tons per hour
Applicable with fuel of light oil, heavy oil, natural gas and LPG
Features: small footprint, easy to install, small water volume and quick start-up

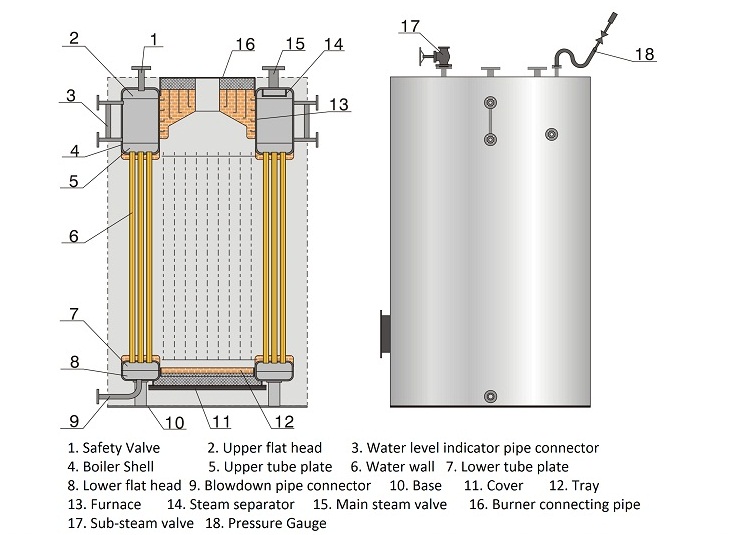

Vertical Steam Boiler Sketch

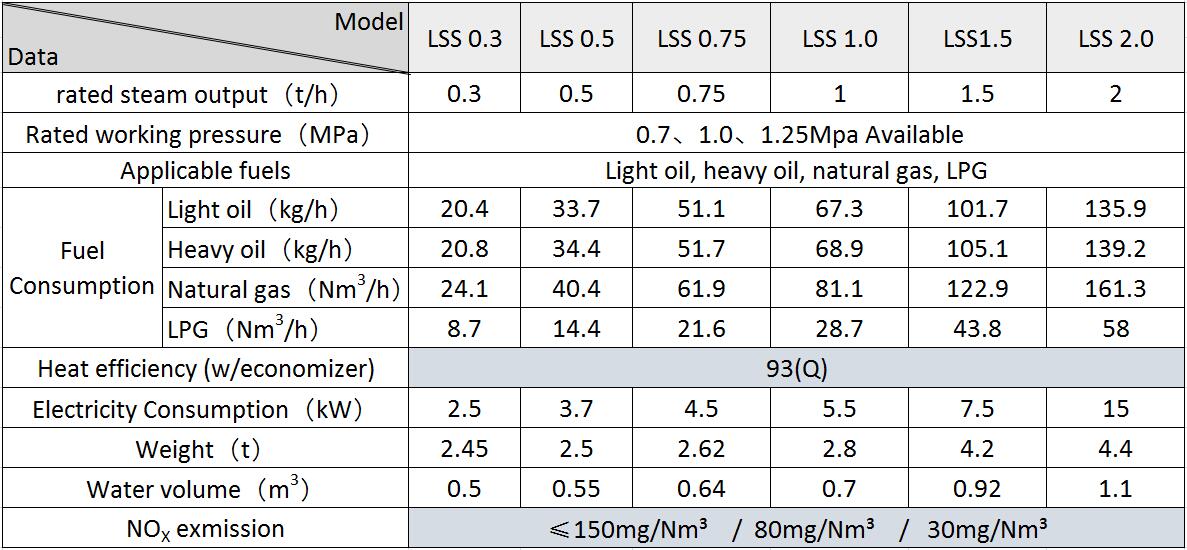

LSS Vertical Steam Boiler Technical Data Technical Data
1. The rated pressure of each model of boiler is available at 0.4, 0.7, 1.0, 1.6, 2.45Mpa
2. The low heating values of different fuels are calculated as follows:
- Light oil: 42875kJ/kg(10240kcal/kg)
- Heavy oil: 41870 kJ /kg(10000kcal/kg)
- Natural gas: 35590kJ /Nm3(8500kcal Nm3)
- LPG: 100488kJ / Nm3 (24000kcal/ Nm3)
3. Parameters in the above sheet shall be adjusted subject to changes of heating values or chemical composition.

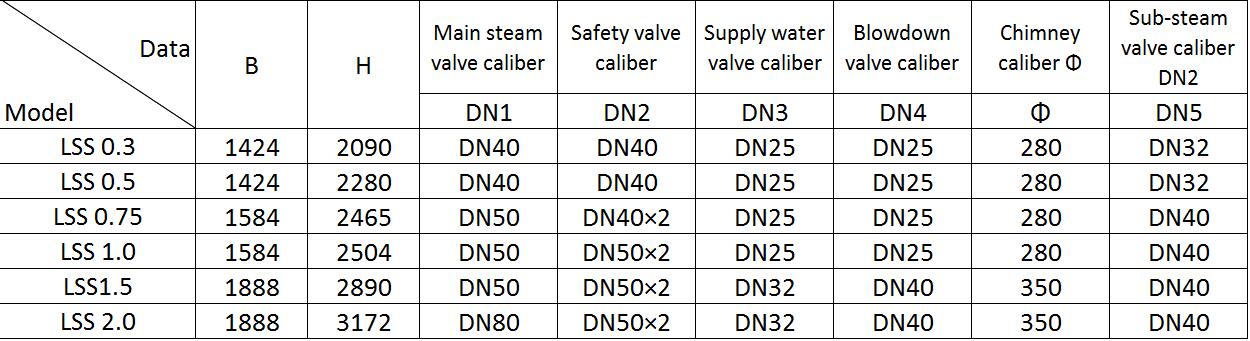

LSS Vertical Steam Boiler Installation Dimension
Note: The above data are subject to changes without prior notice for pursuit of innovation and continuous improvement on products.
