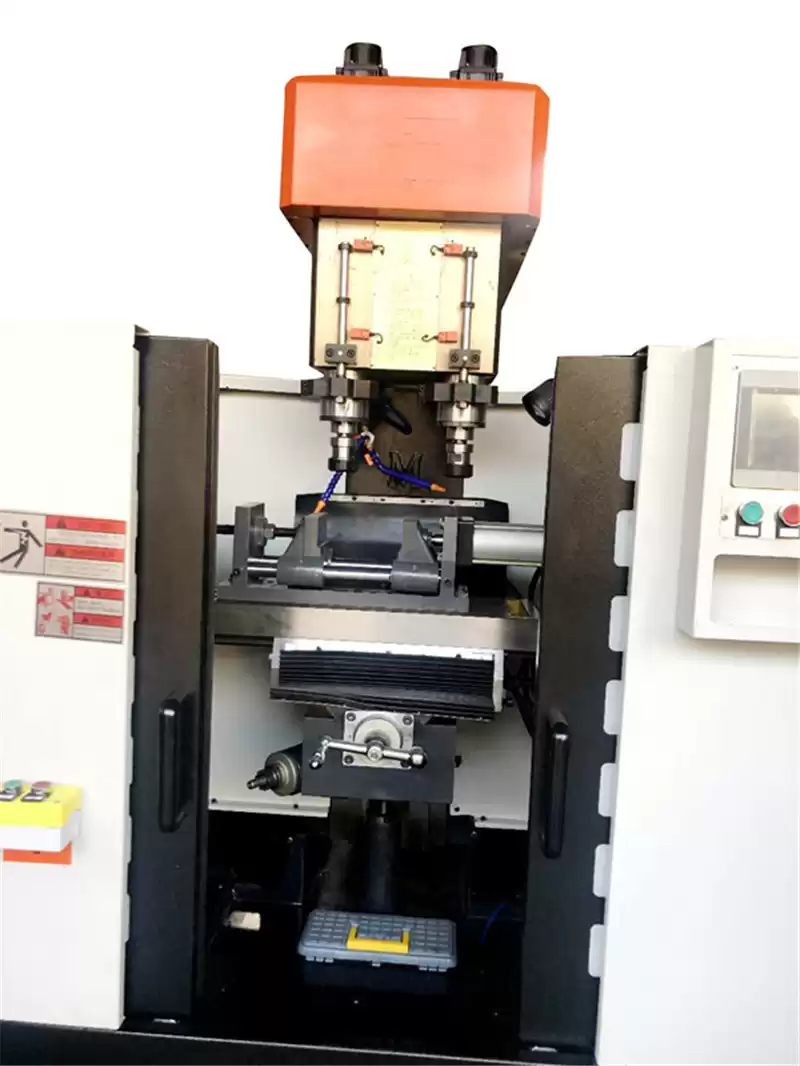

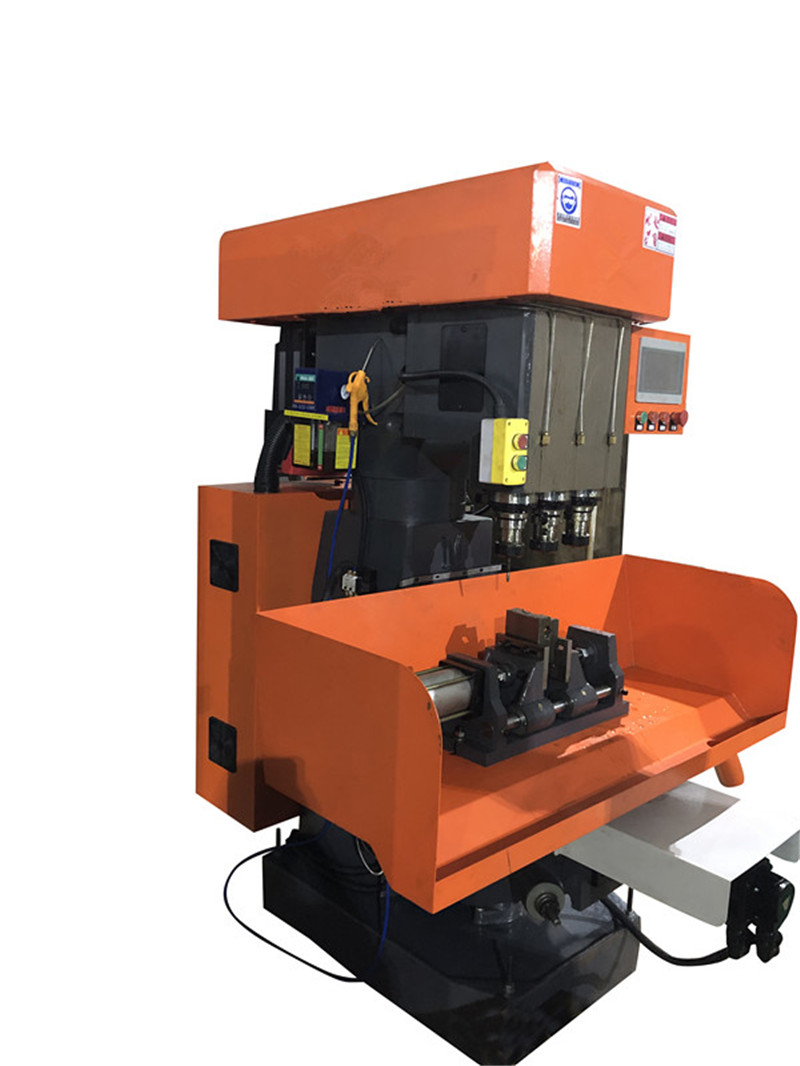

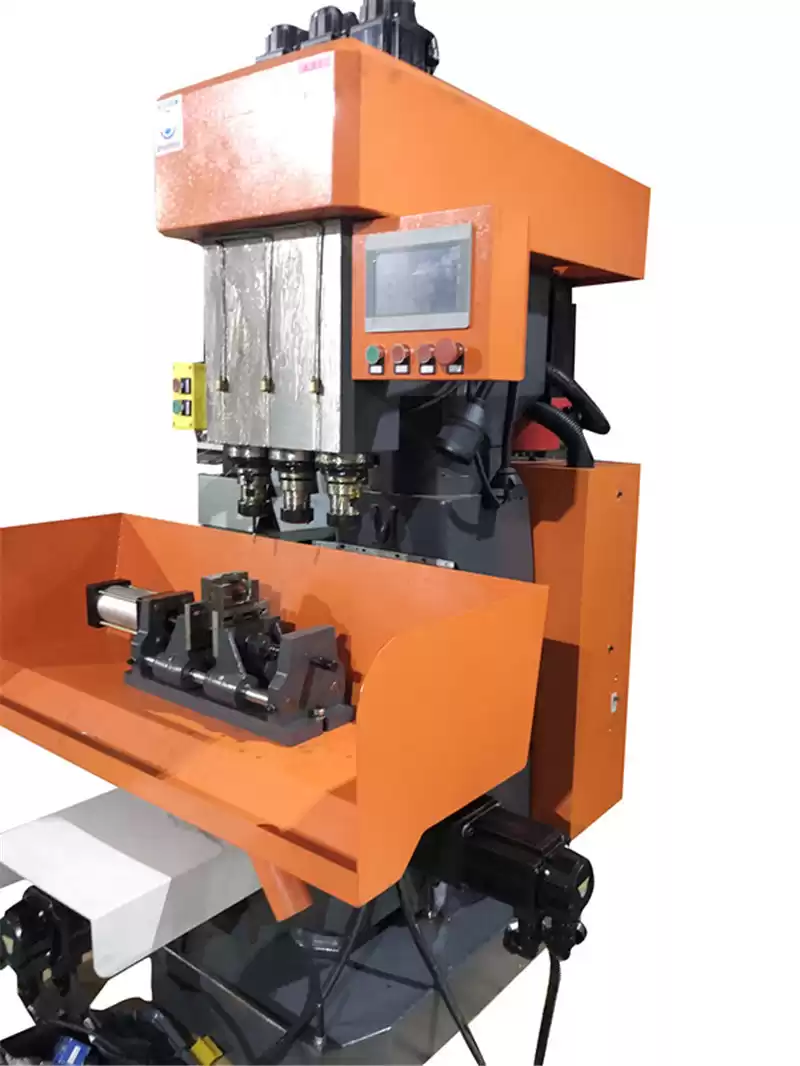

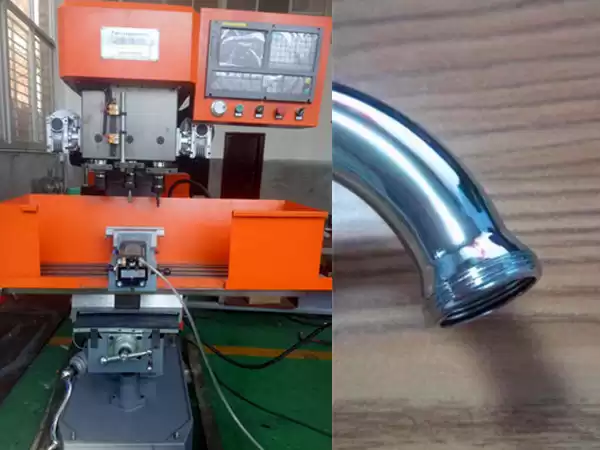

Vertical three spindle compound machine
1.Triaxial compound machine, spindle feed by screw, a main servo motor drive triaxial processing
2. Drilling spindle 1.2kw servo motor feed, Tapping spindle is fed bythread die or screw rod is selected by customer
3.Sliding table part drive mode: manual, pneumatic, screw rod drive can be selected, different configuration with different function
|
NO.
|
Item Name
|
Specifications
|
Remark
|
|
1
|
X axis maximum stroke (screw)
|
300mm
|
|
|
2
|
Y axis maximum stroke (screw or manual)
|
170mm
|
|
|
3
|
Spindle sleeve diameter
|
Ф105mm
|
|
|
4
|
spindle taper
|
MT4
|
|
|
5
|
Maximum stroke of drilling spindle
|
120mm
|
|
|
6
|
Maximum stroke of tapping spindle
|
120mm
|
|
|
7
|
spindle spacing
|
120mm
|
|
|
8
|
Spacing between spindle end face and worktable
|
240/480mm
|
|
|
9
|
Maximumdrilling diameter
|
Ф50mm
|
|
|
10
|
Maximum tapping diameter
|
Ф50mm
|
|
|
11
|
Z2、Z1、Z3 shaft speed
|
0-3000 RPM
|
|
|
12
|
Spindle motor power
|
3.7Kw servo power or 3kW/4P
|
|
|
13
|
Outside size: length × width × height
|
1200×940×1500
|
|
|
14
|
Machine net weight
|
1350KG
|
|
Our Service:
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.
FAQ:
Q: Are we a trading firm or a manufacturer?
A: We are a MANUFACTURER.
Q: What’s our payment mode?
A: L/C, T/T
Q: Can machines be customized?
A: YES.
Q: How long is the warranty period?
A: 12 months.
