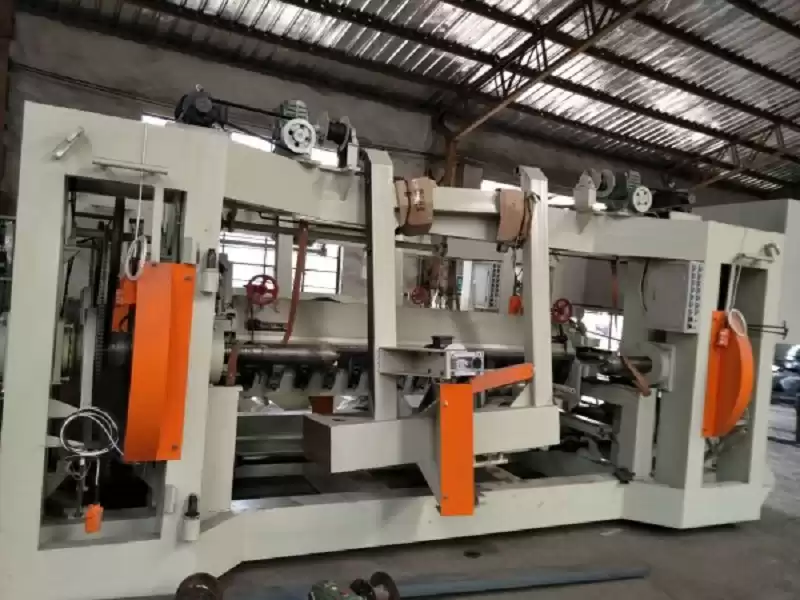

Product Name:Vertical type 8 feet face veneer peeling machine
Major Technical Parameters:
|
Specifications
|
|
|
Max. log diameter (mm)
|
Φ1500
|
|
Max. log length (mm)
|
2000-2600
|
|
Veneer thickness (mm)
|
0.8-2.6
|
|
Overall dimension (mm)
|
6000*2300*2600
|
|
Total weight (kg)
|
8000
|
|
Total power (kw)
|
Main
power
22kw*1pcs
Clamping
power
4kw*2pcs
Fast-forward/backward
power 1.5kw*1pcs
Blade power
1.1kw*1pcs
Hydraulic station
power 0.75kw*1pcs
Pressure bar
1.1kw
Delta inverter
22kw
Hoisting
power
3kw*2pcs
|
Main features:
1) the Electrical components is DELTA.
2) motor is HUALI ,china famous brand or
can be changed according to client's requirement.
3) the veneer thickness can be adjustable.
