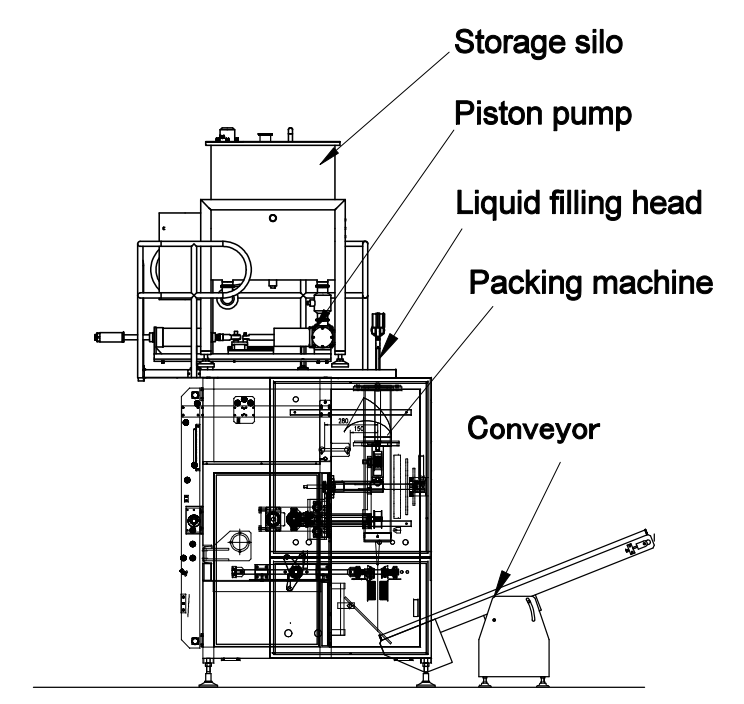

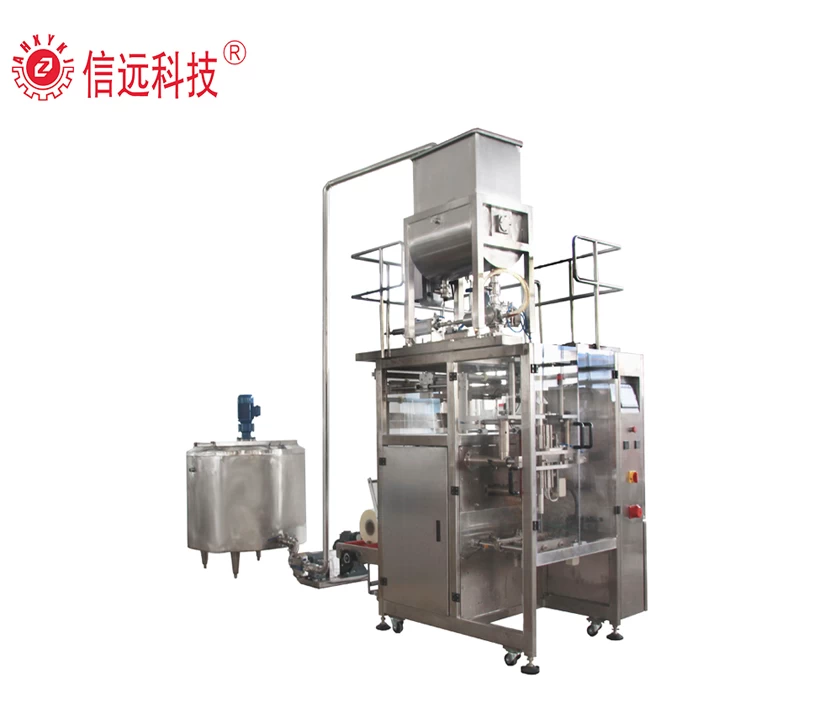

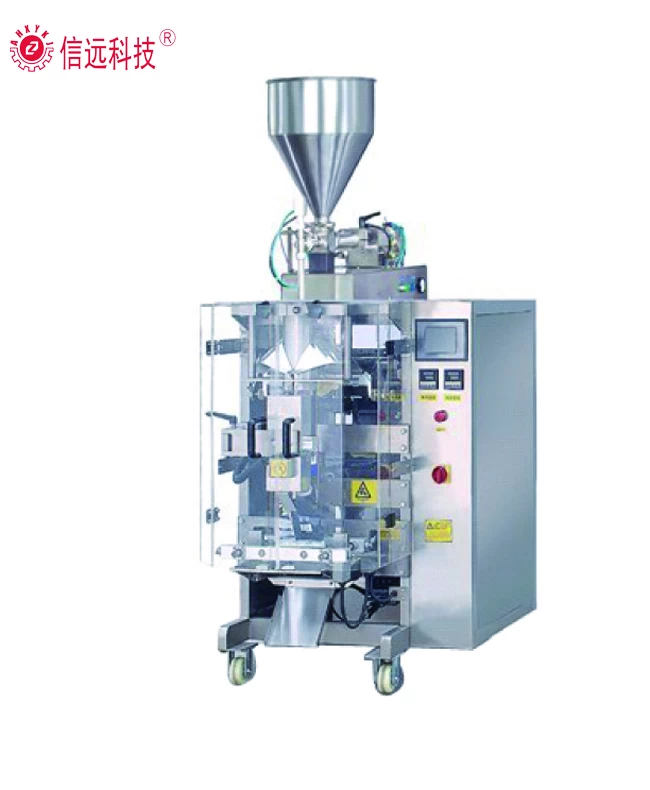

Vertical water liquid oil sauce pouch packing machine is used for automatic weighing and packing for liquid material. It is widely used in food, condiment, oil industry, conforming to GMP standard. It can achieve bag forming, material weighing, filling, packing, coding and sealing fully automatically under set parameter. It is normally matched with storage tank, piston pump, output conveyor, weight checker and metal detector to form a whole production system.
-
Unit configuration: film roller, coder, bag former, vertical heat sealing, horizontal heating and cutting
-
Material: contact parts S.S 304 (or S.S 316L if need)
-
Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc
-
Packing speed: (15-60)bags/min
-
Filling range: 10g--5000g
-
Applied material: liquid form material such as oil, water, sauce, paste etc
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Parameter:
|
Model
|
XY-420
|
XY-520
|
XY-760
|
XY-480
|
|
Configuration
|
Bag-making packing machine
+Auto-filling machine
+Conveyor
|
|
Packing speed(bag/min)
|
15~60
|
|
Measuring range(g/bag)
|
10~5000
|
|
Measuring accuracy
|
±0.5% to ±2%
|
|
Bag style
|
Pillow bag/Four-side-sealing bag
|
|
Bag making size(mm)
|
L:50~320
W:60~200
|
L:100~350
W:80~250
|
L:150~450
W:100~360
|
L:50~320
W:70~240
|
|
Power supply
|
AC 380V ±10% 50HZ
|
|
Optional device
|
Weight sorter/Metal dector
|
Transportation&After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
