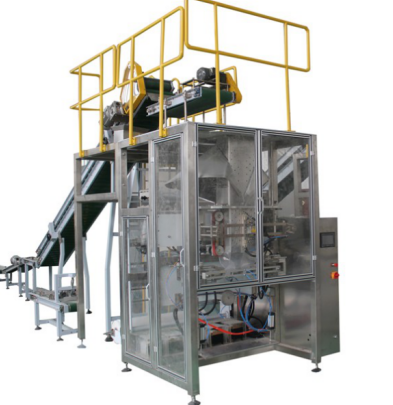

VFS1100 Automatic plastic bag baler machine

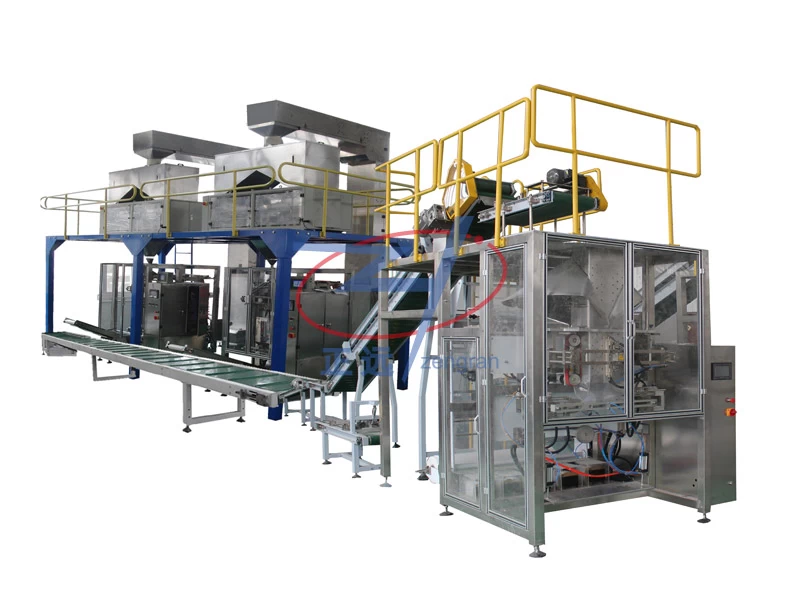

This packing unit includes one set of buffer belt conveyor, one set of climbing conveyor, one set of VFS1100 secondary bag in bag packing machine and one set of take-off conveyor,equipped with weight checker and case packer for more efficient and automatic.



VFS1100 Automatic plastic bag baler machine equipped with weight checker and case packer for more efficient and automatic


Automatic plastic bag baler machine

Technical features:

No

Features

1

This packing unit includes one set of buffer belt conveyor, one set of climbing conveyor, one set of VFS1100 secondary bag in bag packing machine and one set of take-off conveyor.

2

This machine integrates the functions of bags feeding, conveying, bag-making, filling, sealing, cutting,etc.

3

The machine has good sealing performance and can meet customer’s hygienic requirements.

4

All the electrical components and control   components adopt local and foreign well-known brands with reliable   performance, such as Siemens PLC and touch screen, Panasonic servo motor,   Schneider electrical components, SMC pneumatic components,etc.

5

We can also offer the primary packing machine   for weighing filling bulk materials in plastic bag and the case packer used   for filling the baler bag in cartons automatically.


Application:

Liquid: detergent,fruit juice,miller wine,soy sauce,vinegar,drinks etc.Thick liquid: chilli sauce,tomato sauce,peanut butter,jam,bean sauce etc.

Solid: candy,peanut,green bean,pistachio,brown sugar,cake,daily commodities,cooked food,pickles,puffed food etc.

Granule: grain,granular drug,capsule,seed,condiments,granulated sugar,chicken essence,melon seeds,nuts etc.

Powder: milk powder,coffee powder,food additives,condiments,tapioca powder,coconut powder,pesticide powder,fertilizer granules etc.



Technical Form:

No.

Item

Parameter


Packing products

Plastic bag with material

1

Packaging weight

According to customer's requirement

2

Max.Speed

90 times/min

3

Filling order

According to customer's requirement

4

Power supply

380V±10%  50Hz  10KW

5

Machine weight

2000kg

6

Machine size

6000*2000*4900mm

7

Air supply source

0.6MPa, 0.5m3/min
