1

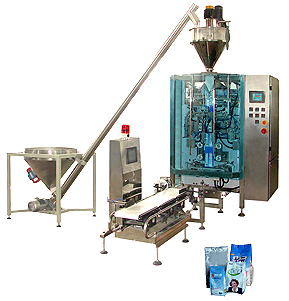

Adopts auger filler for automatically measuring the powdery materis;

2

This machine equips with bag-making, cutting, code printing, etc.

3

With independent edges folding and forming device for making quad bag or box type bag;

4

This machine adopts Panasonic servo driver to pull film and has automatic bias-correction function.

5

Machine is also can be with vacuum film-pull system

6

The machine part contact with material adoptingbstainless steel 304 which is safe and sanitary and not easy to eroded. So the equipment has a long life;

7

The components adopts famous brand, liken Siemens PLC and touch screen, Ormon temperature controller, SMC/Airtacncy linder, Japanese Sunx photo sensor, Schneider electricals

1

Metering way

Combined head weigher

2

Bag type

Pillow

3

Bag size

(50mm-380mm)*(70mm-260mm)(L*W);

4

Weighing range

100-1000g

5

Packing speed

90-120bags/min(according the packaging weight and the bag size )

6

Accuracy

±0.2%

7

 Power

AC380,3Phase,50Hz,5KW;

8

Compressed air

0.6Mpa,0.4M3/min;
