GB-3 Benchtop Stainless Steel Vacuum Glove Box
SPECIFICATIONS
VGB-3 is a middle size heavy duty stainless steel glove box with Airlock Chamber, Gauges and
vacuum Flanges, which allow glove box operate under vacuum to remove
moisture and oxygen without expensive inert gas purging, It is an ideal
tool for material and chemical researchers to process air sensitive
materials and solutions.
|

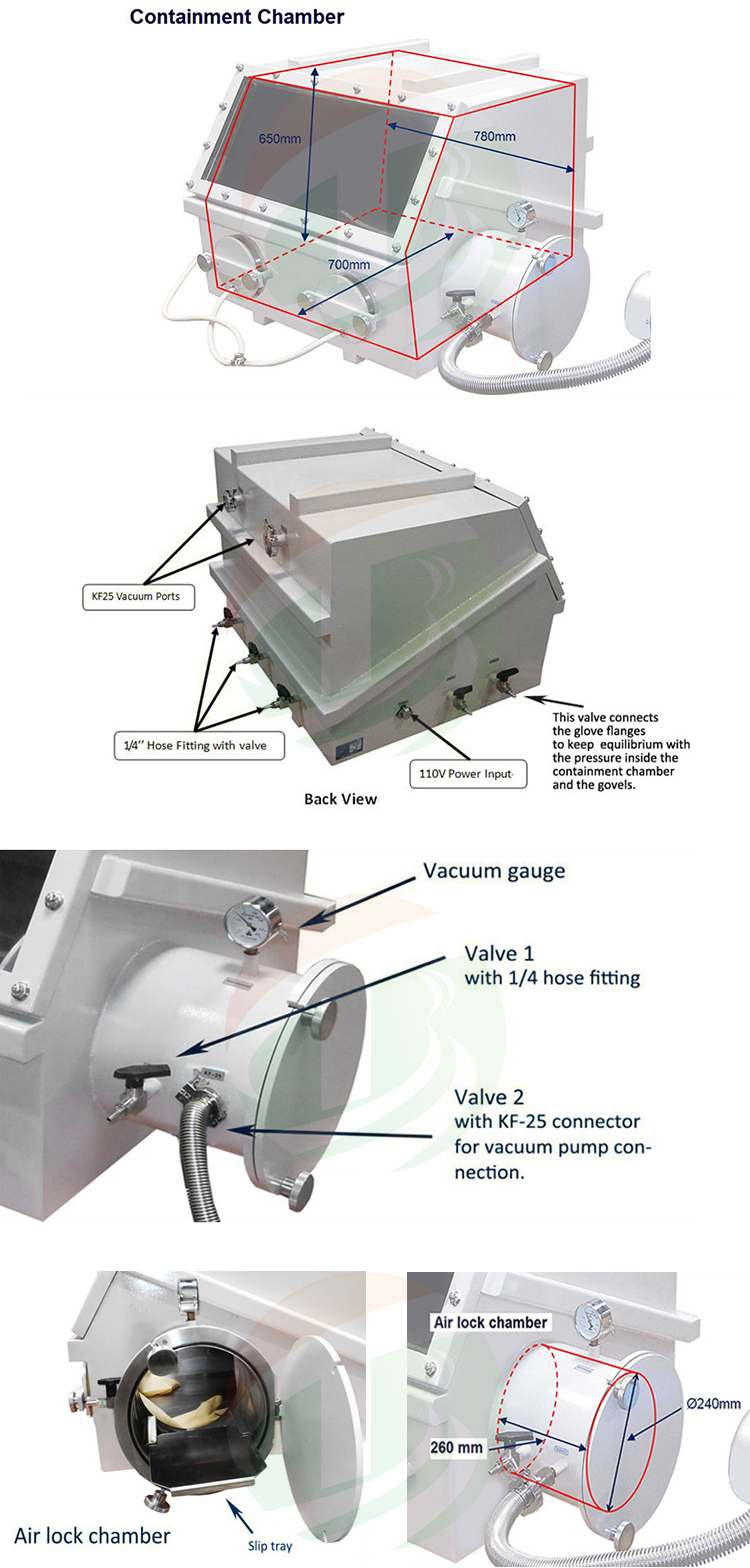

Glove Box Chamber
|
1 Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet with sport frame and plastic painting, which provide heavy duty structure for vacuum

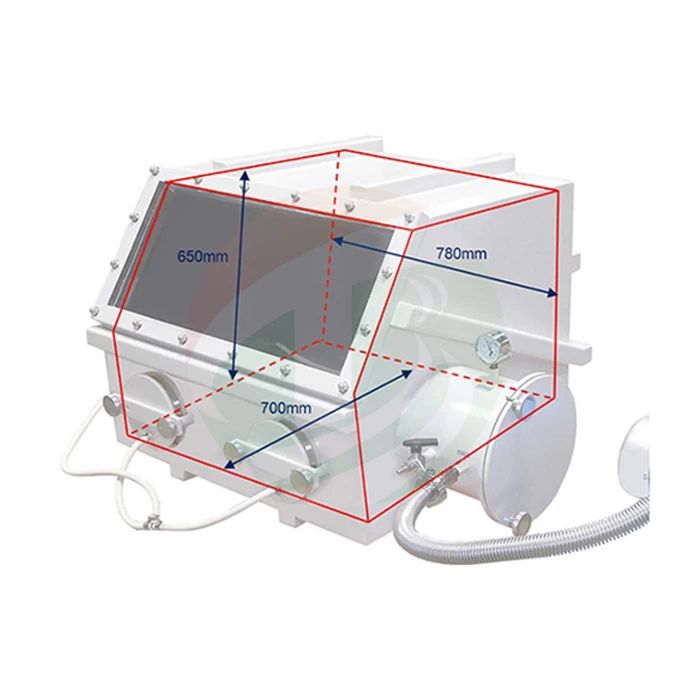

2 Dimensions: 780mm(L) x 700mm(W) x 650mm(H)
3 Max. Positive Pressure: 810 Torr (1.1 atm)
4 Note: Gloves cannot work if pressure is higher than 810 Torr
5 Max. Vacuum Level: 0.5 Torr
6 Note: Stainless Steel case may deform at higher vacuum level
|
|

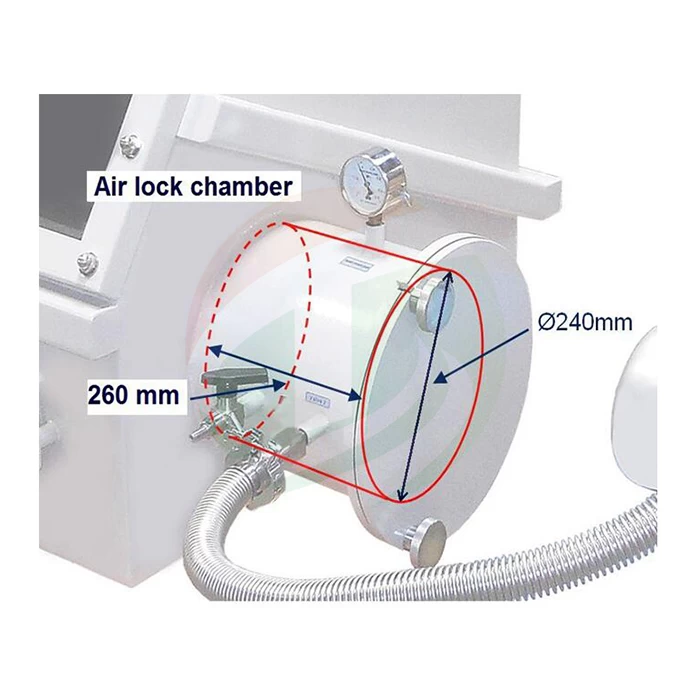

Air-lock Chamber
|
Dimensions: 240mm(ID) x 260mm(L)
Max. Vacuum Level: 0.05 Torr
|
|
Vacuum gauge and valves
|
1 Two vacuum flanges are included for glove box to achieve vacuum to remove moisture and oxygen without expensive inert gas purging
2 Do not operate under vacuum status. Vacuum process is used for purging the glove box chamber before operation.
|
|
Leakage Rate in Glove Box Chamber
|
< 6 Torr/hour
|
|
Gloves
|
One pair of Latex Gloves are included for immediate use
Glove hole diameter : 139mm (2 pcs)
|
|
Shipping Dimensions
|
50" x 40" x 37"
|
|
Shipping Weight
|
240 kg (520 lbs)
|
