Product Name:
VHF Cavity Transmitter Combiner is a product that 8 accessory in one passive device,imput and output have different VSWR
Technical and Electronic Specifications:
|
Model No.
|
MN-TC-N-K
|
Frequency range
|
TX1：152.015，TX2：152.265，TX3：152.525，TX4:152.835
TX5:153.095，TX6：153.375，TX7：153.645，TX8：153.905
|
VSWR
|
Imput≤1.25 ;
Output:≤1.50
|
Insertion Loss
|
≤6.0dB
|
Isolation ANT-TX
|
≥60dB
|
Power
|
100W(CW)
|
Operating Temperature
|
Normal Temp.: +15℃～+35℃
Limit Temp.:-10℃～+65℃
|
Connector
|
N-K，50Ω
|
Color
|
Black
|
Size
|
420*750*840（mm）
|
Services:
1. Professional skills support for VHF Cavity Transmitter Combiner 8 in one combiner
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

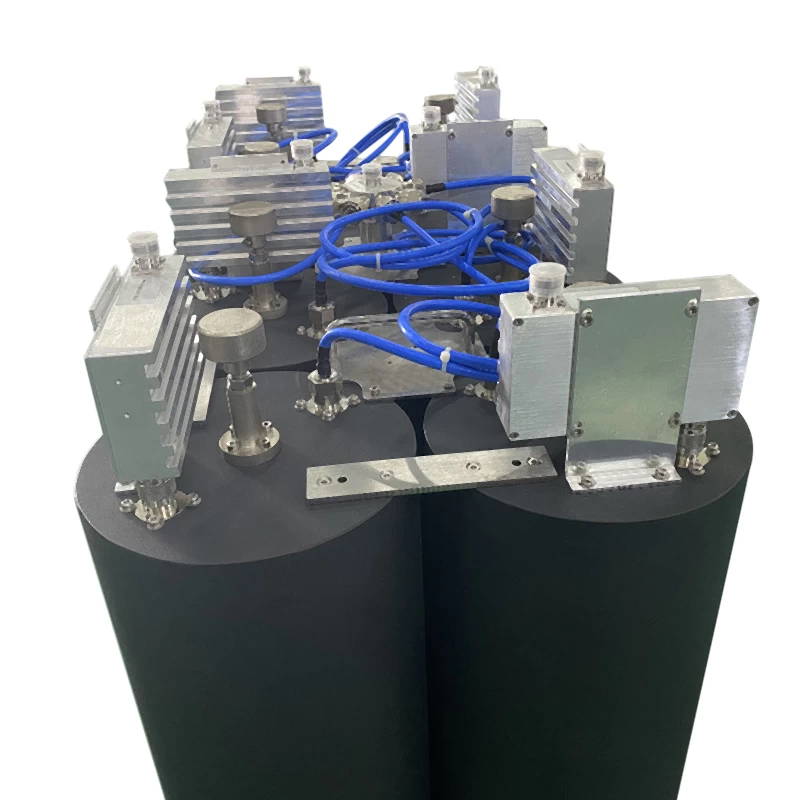

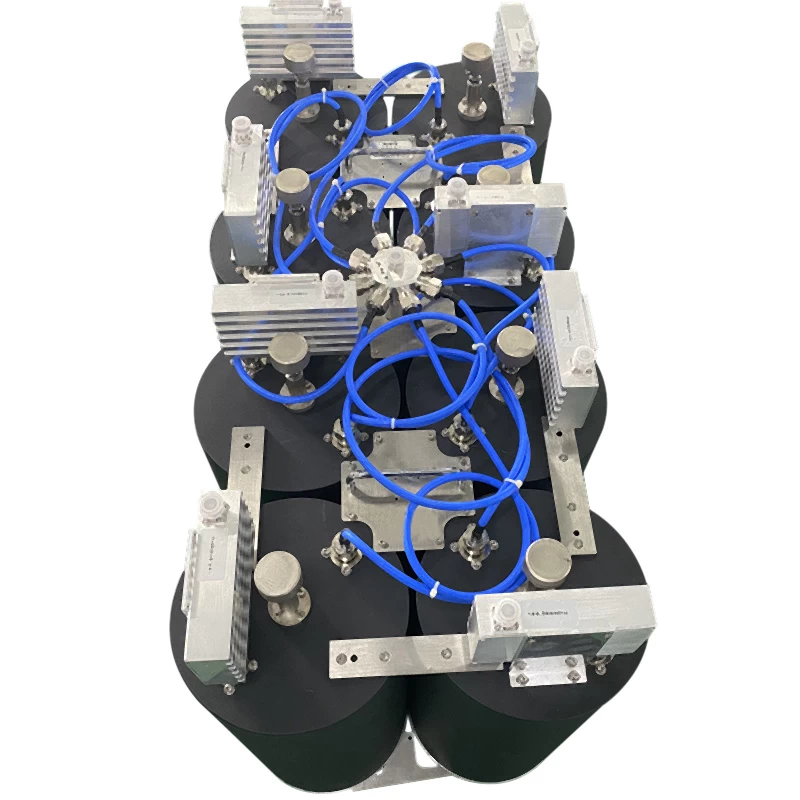

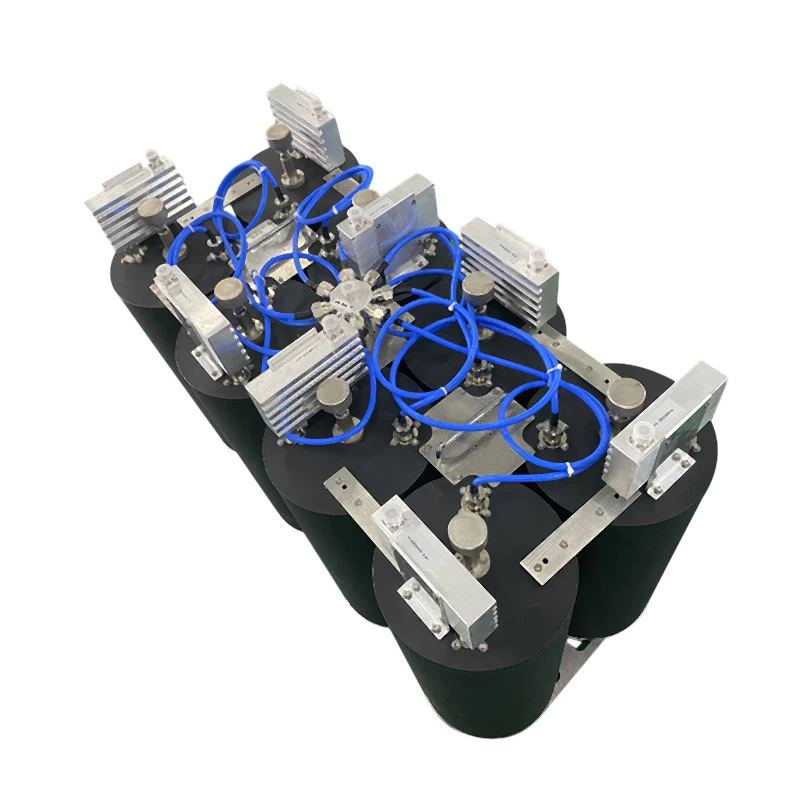

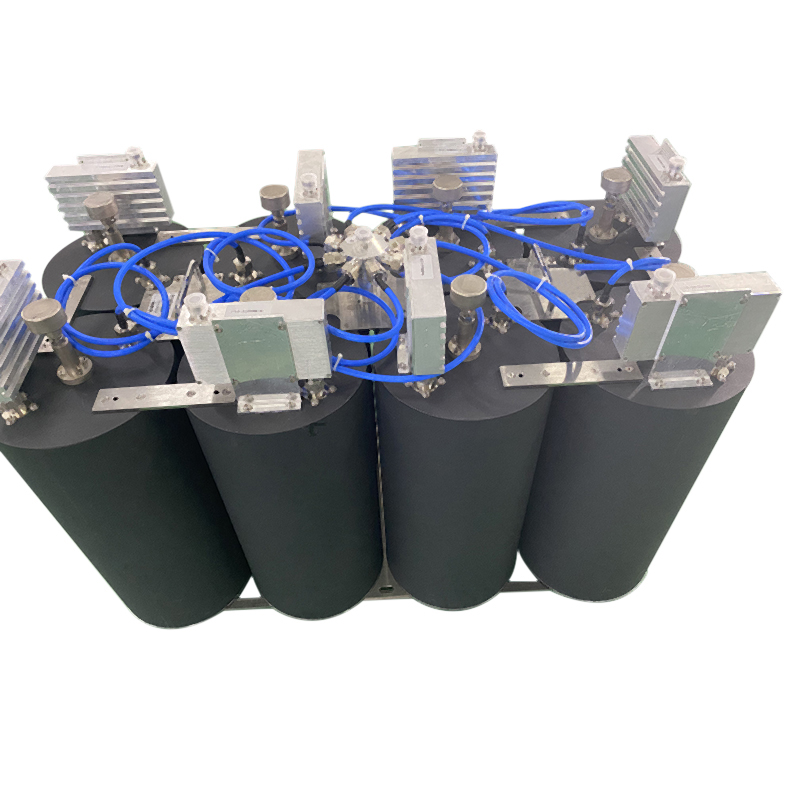

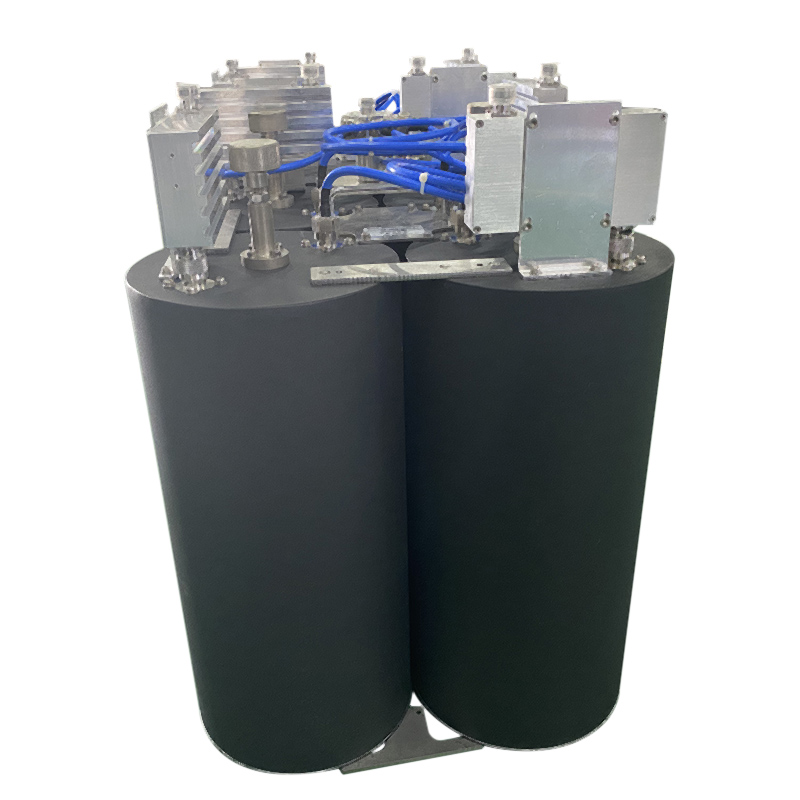

Detailed Image:
