Product name
VHF UHF power tapper 138-960MHz, N female type
Product features
♦ Low Insertion Loss
♦ Low VSWR
♦ Up to 300W Average Power
♦ High Reliability,IP65
Mechanical specifications
|
Frequency Range
|
137-960MHz
|
|
Impedance
|
50Ω nominal
|
|
IP Grade
|
IP65(Waterproof)
|
|
Application
|
Outdoor
|
|
Temperature Range
|
-35° C to +75° C
|
|
Connector Type
|
N-Female
|
|
Housing Material
|
Aluminum
|
|
Color
|
Black
|
Technical Specifications
|
Model Number
|
Ratio, nom.
|
Output Split
|
Branch Flatness ref. to Input Level, incl Loss, dB
|
Input VSWR max
|
|
YF-PT-139-3-NF
|
2:1/3.0dB
|
-1.8/-4.8
|
-6.3±0.7@137-200MHz
-5.8±0.6@200-250MHz
-5.4±0.6@250-380MHz
-5.1±0.6@380-520MHz
-4.8±0.5@698-960MHz
|
1.4:@147-380MHz
1.3@380-960MHz
|
|
YF-PT-139-6-NF
|
4:1/6.0dB
|
-1.6/-7.0
|
-8.1±0.7@137-200MHz
-7.6±0.6@200-250MHz
-7.3±0.6@250-380MHz
-7.0±0.6@380-520MHz
- 6.5±0.5@698-960MHz
|
1.3@147-380MHz
1.25@380-960MHz
|
|
YF-PT-139-10-NF
|
10:1/10dB
|
-0.9/-10.4
|
-11.0±0.8@137-200MHz
-10.7±0.7@200-250MHz
-10.3±0.7@250-380MHz
-10.1±0.7@380-520MHz
-9.9±0.5@698-960MHz
|
1.20@147-380MHz
1.20@380-960MHz
|
|
YF-PT-139-15-NF
|
30:1/15dB
|
-0.5/-15.3
|
-16.0±0.8@137-200MHz
-15.6±0.8@200-250MHz
-15.5±0.8@250-380MHz
-15.2±0.8@380-520MHz
-15.4±0.5@698-960MHz
|
1.20@147-380MHz
1.20@380-960MHz
|
|
YF-PT-139-20-NF
|
100:1/20dB
|
-0.4/-20.1
|
20.3±1.0@137-200MHz
20.1±1.0@200-250MHz
20.0±1.0@250-380MHz
20.1±1.0@380-520MHz
21.1±0.8@698-960MHz
|
1.20@147-380MHz
1.20@380-960MHz
|
|
YF-PT-139-30-NF
|
1000:1/30dB
|
-0.4/-30.1
|
6.3±0.7@137-200MHz
5.8±0.6@200-250MHz
5.4±0.6@250-380MHz
5.1±0.6@380-520MHz
4.8±0.5@698-960MHz
|
1.20@147-380MHz
1.20@380-960MHz
|

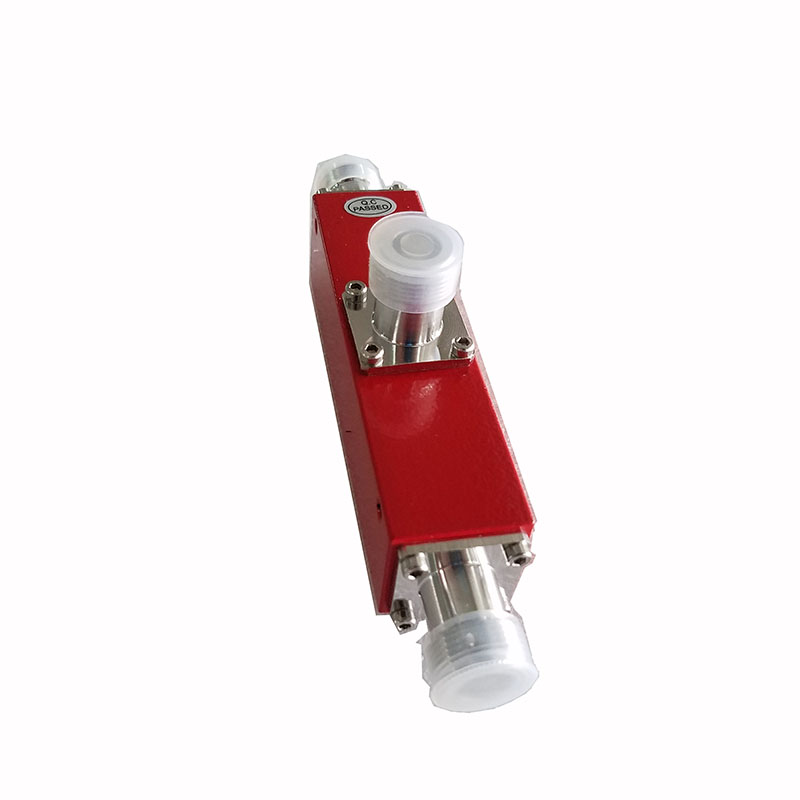

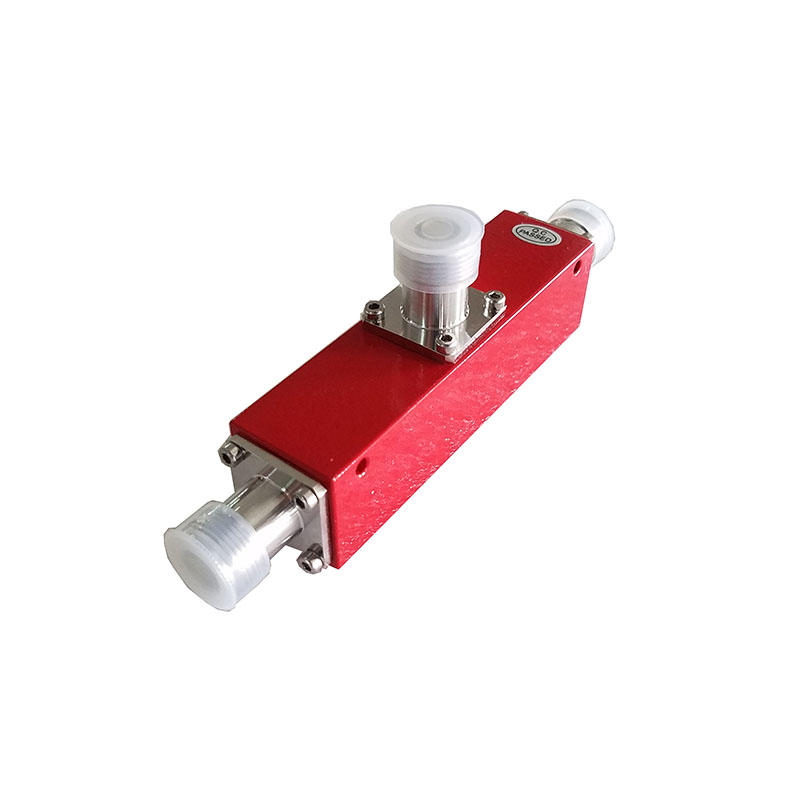

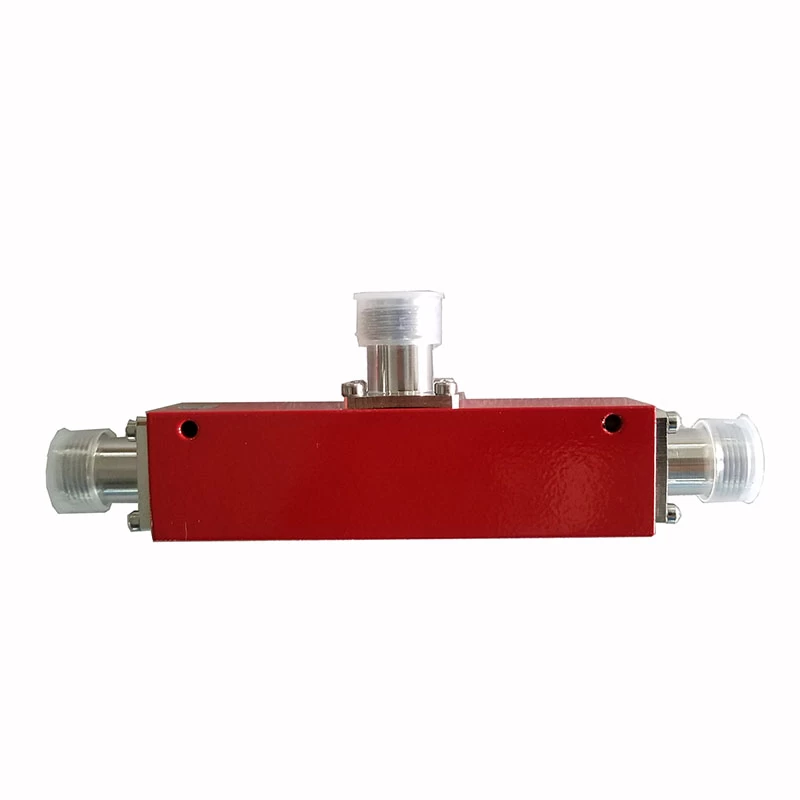

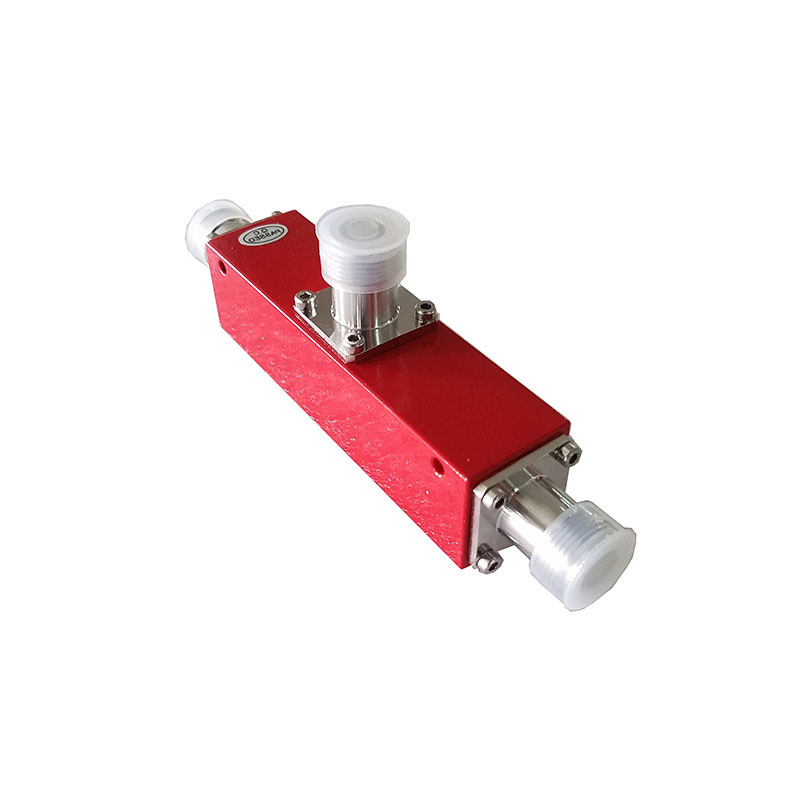

Image:
