vibrating fluidized bed dryer

Higao Tech manufacture high quality vibrating fluidized bed dryer for pharmaceutical chemical and food materials in china. Applied for drying particles, granules, flakes materials, not for fine powder.



Higao Tech manufacture high quality vibrating fluidized bed dryer machine for pharmaceutical chemical and food materials in china. Applied for drying particles, granules, flakes materials, but not used for fine powder.

1. Description:
Vibrating fluid-bed dryer machine is used for drying, cooling powdery or granular raw materials, such as citric acid, monosodium glutamate, borax, ammonium sulphur,compound fertilizer, piece of radish, bean, lees, seed, mine reside and sugar in chemical, pharmaceutical, foodstuff, grain, mine and other industries.

2. Working Principle:

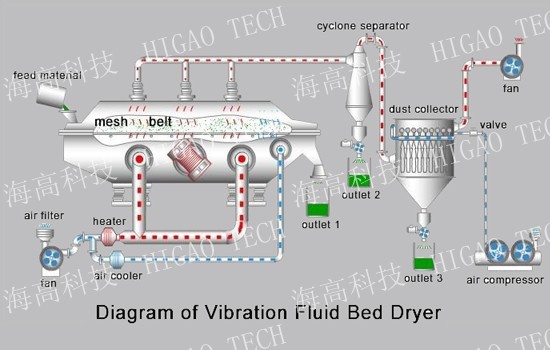

Raw material is fed into the drier from the inlet and moves forward continuously along with the level of fluidized bed under the vibrating force. The hot air passes through the fluidized bed and exchange heat with wet raw material and become wet air. The wet air will exhaust out after passing cyclone separator and sudt collector. The dried material will discharge from the outlet automatically.

3. Features:
(1) Vibrating motor is used to achieve constant operation, smooth running, convenient maintenance, low noise and long using life.
(2) Uniform fluid-bed makes no dead gaps phenomenon and blowing through phenomenon. You can get uniform dry and cool products.
(3) Stepless adjustment. Thickness and moving speed of raw material inside the machine and the vibration amplitude can be adjusted freely.
(4) Less damage to the surface of raw materials. It can be used to dry material easy to be broken.
(5) The work efficiency is not affected even if the shape of granules is irregular.
(6) Use fully sealed structure to prevent from cross pollution of raw materials. The working environment is clean.
(7) High mechanical efficiency and thermal heating efficiency. 30~60% energy can be saved compared with ordinary drying equipment.
