PRODUCT FEATURES

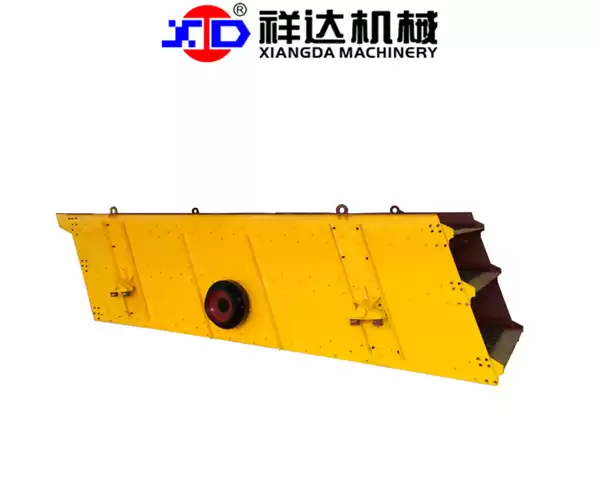

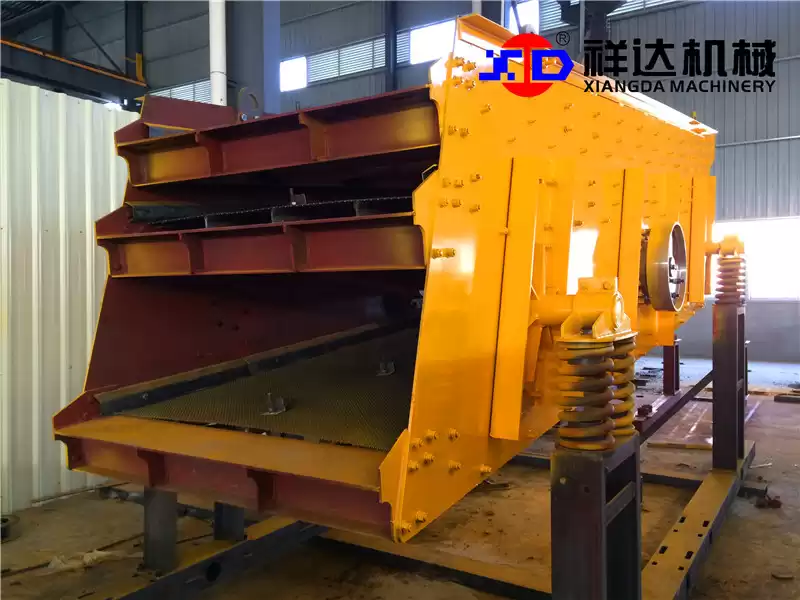

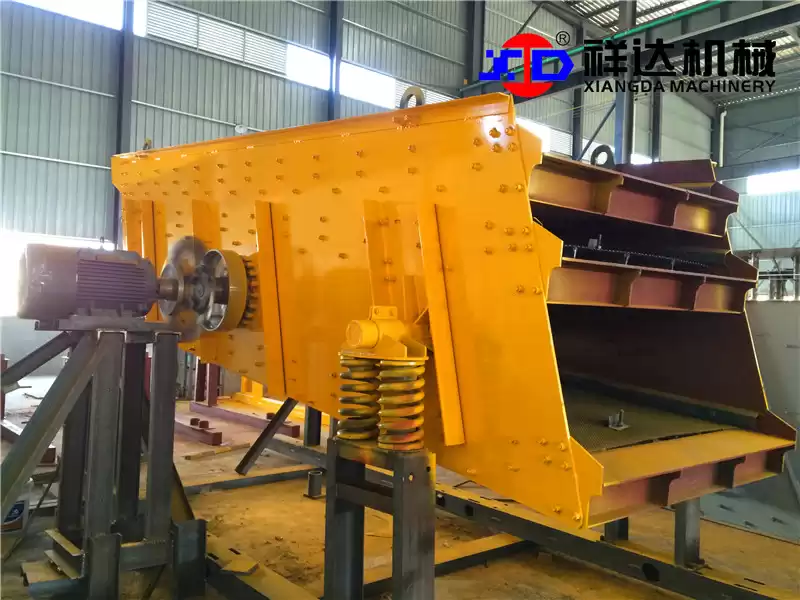

VIBRATING SCREEN
◆Adopted a sieve and screen box beams, high strength bolts, Simple structure, easily and convenient maintenance.
◆The ring groove rivet connection, firm and durable, using tyre couplings, flexible connection, stable operation.
◆The excellent material of the spindle, bearings and the advanced design of the oil bath lubrication to ensure stable production of vibrating screen, get rid of the other manufacturers sieving equipment frequent replacement of bearing.
◆The exciting force - strong and stable to ensure its good through ability when the installation angle is low. at the same time to ensure the screening has sufficient time and higher efficiency with small angle in the same screening area. compare with domestic screen exciting force in 3-3.5G,YA vibrating screen can be more easily in a short period of time to fully disperse materials so as to improve the overall effectiveness of screening.
TECHNICAL DATA
VIBRATING SCREEN
|
Model
|
Sieve Layer
|
Sieve Area
|
Max. feeding size
|
Capacity
|
Amplitude
|
Motor power
|
Weight
|
Dimension
|
|
L×W(mm)
|
(mm)
|
(t/h)
|
(mm)
|
(Kw)
|
(t)
|
(L×W×H)(mm)
|
|
1YA-1230
|
1
|
1200×3000
|
200
|
15-40
|
7-10
|
5.5
|
2.8
|
4150×1850×850
|
|
2YA-1230
|
2
|
1200×3000
|
200
|
15-45
|
7-10
|
7.5
|
3.2
|
4150×1850×1100
|
|
3YA-1230
|
3
|
1200×3000
|
200
|
15-50
|
7-10
|
11
|
3.7
|
4150×1850×1350
|
|
2YA-1545
|
2
|
1500×4500
|
200
|
25-60
|
8-11
|
11
|
4.3
|
5650×2150×1100
|
|
3YA-1545
|
3
|
1500×4500
|
200
|
25-70
|
8-11
|
15
|
5.5
|
5650×2150×1480
|
|
2YA-1850
|
2
|
1800×5000
|
250
|
50-120
|
8-11
|
18.5
|
5.7
|
6200×2450×1480
|
|
3YA-1850
|
3
|
1800×5000
|
250
|
50-140
|
8-11
|
18.5
|
6.5
|
6200×2450×1780
|
|
2YA-2060
|
2
|
2000×6000
|
250
|
80-180
|
8-12
|
22
|
6.6
|
7220×2650×1480
|
|
3YA-2060
|
3
|
2000×6000
|
250
|
80-210
|
8-12
|
22
|
7.7
|
7220×2650×1780
|
|
2YA-2270
|
2
|
2200×7000
|
280
|
120-250
|
8-12
|
30
|
8.4
|
8250×2870×1460
|
|
3YA-2270
|
3
|
2200×7000
|
280
|
120-300
|
8-12
|
30
|
9.9
|
8250×2900×1780
|
|
2YA-2470
|
2
|
2400×7000
|
300
|
160-400
|
8-12
|
30
|
10.5
|
8250×3100×1480
|
|
3YA-2470
|
3
|
2400×7000
|
300
|
160-480
|
8-12
|
37
|
11.8
|
8250×3100×1780
|
|
2YA-3072
|
2
|
3000×7200
|
320
|
200-600
|
8-12
|
37
|
12.3
|
8250×3700×1500
|
|
3YA-3072
|
3
|
3000×7200
|
320
|
200-700
|
8-12
|
37
|
14.6
|
8250×3700×1800
|

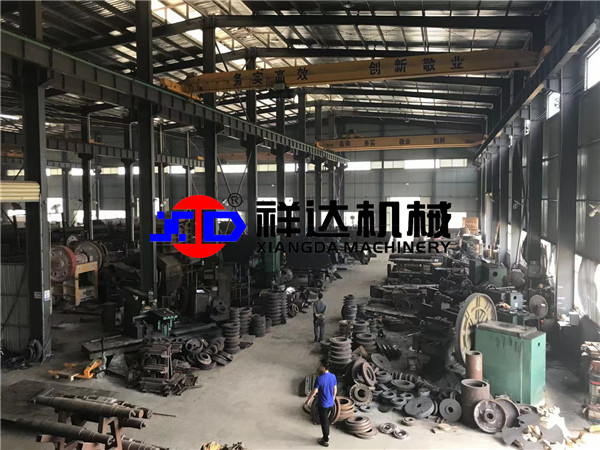

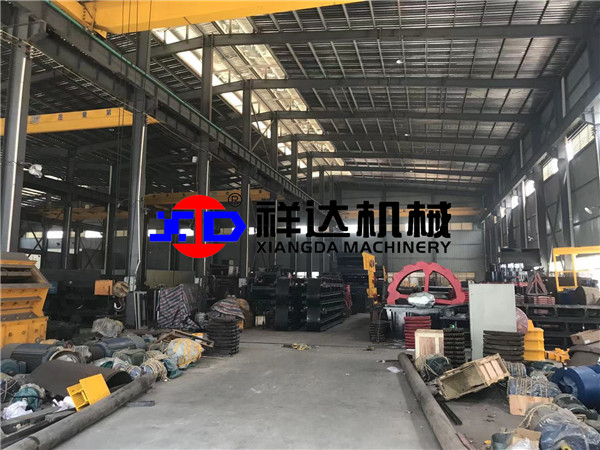

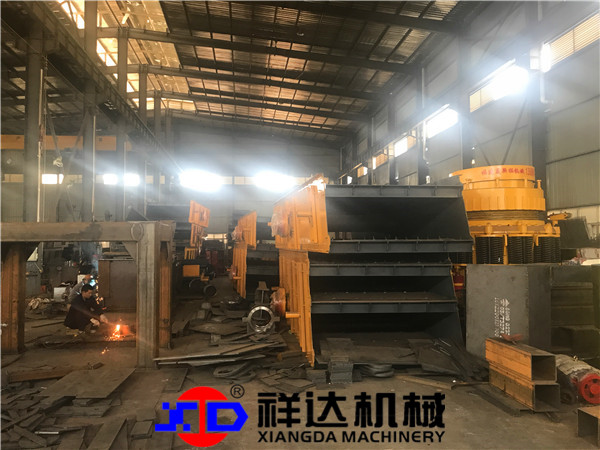

OUR FACTORY
VIBRATING SCREEN
Packaging & Shipping

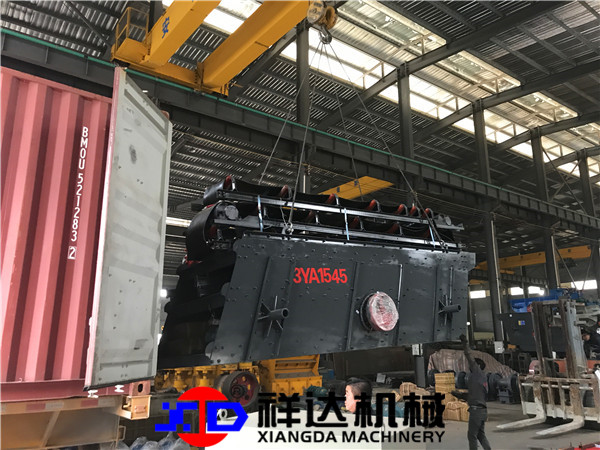

Packaging:standard Container, Nude Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steel frame.Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.
Shipping:we deliver the cargo to China's main sea ports,like Xiamen port.And then the container will be transported to your country by sea.
Product Packing
Standard export packing, Spare parts are packed with wooden case, the large machines are loaded in container with nude packing, covered with plastic cloth. We export through Xiamen Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client with competitive price and secure transportation.
Our Services
Pre-sales:
*Help customers to choose product.
*Freely send engineers to the working field to plan the installation site and design the best technical production process.
*Design the special product according to the contract.
After-sales:
*Send the engineers to guide the installation.
*Install and adjust the equipment for customers.
*Train the operator for customers.
*We also provide the technical service for our customers after the installation.
*Solution for you choose as well as we will give lifetime free technical support and services.
ABOUT LOADING
