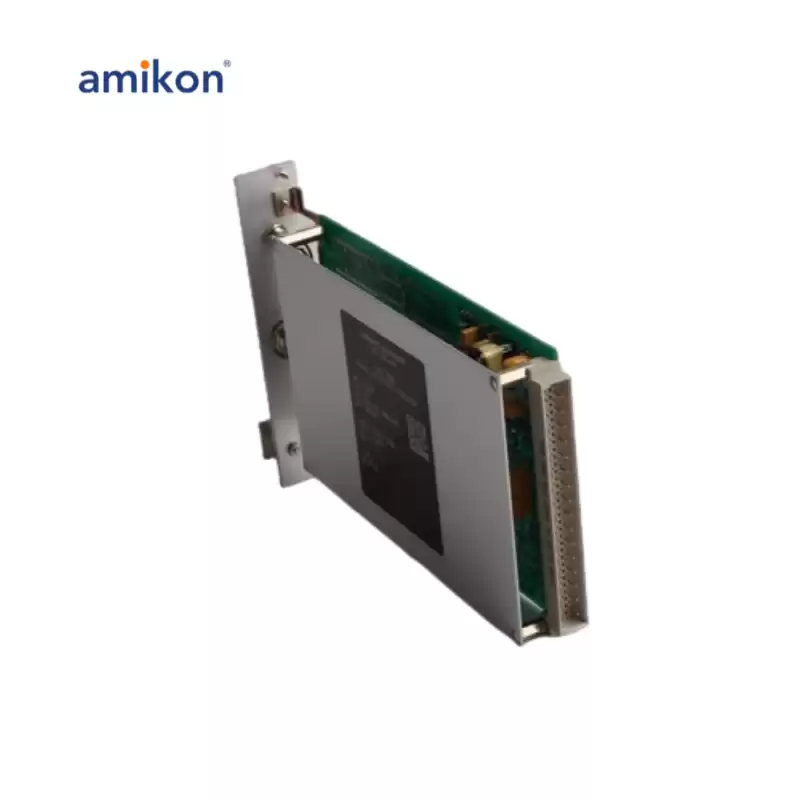

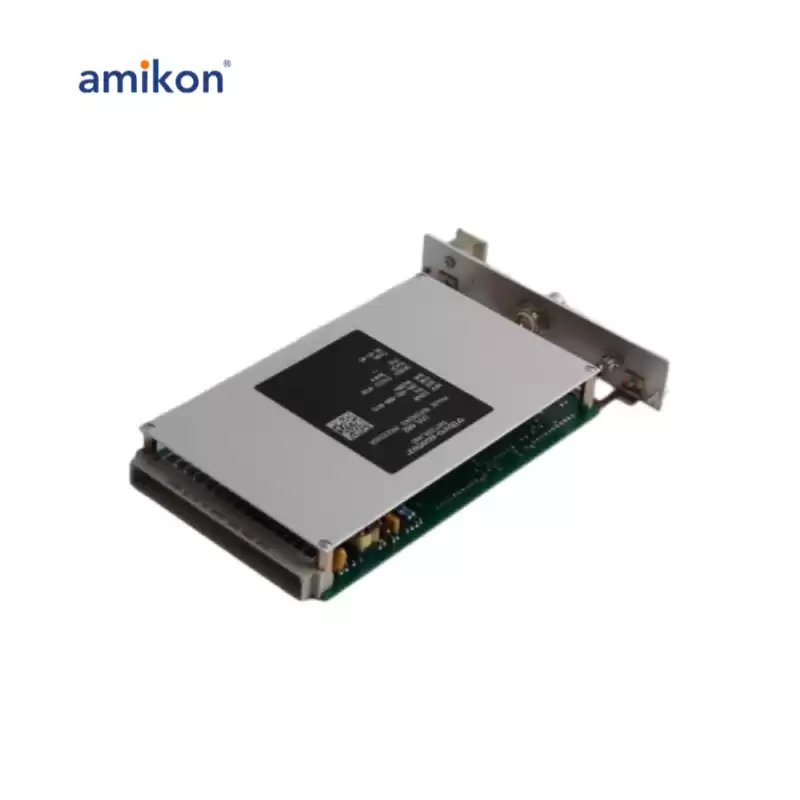

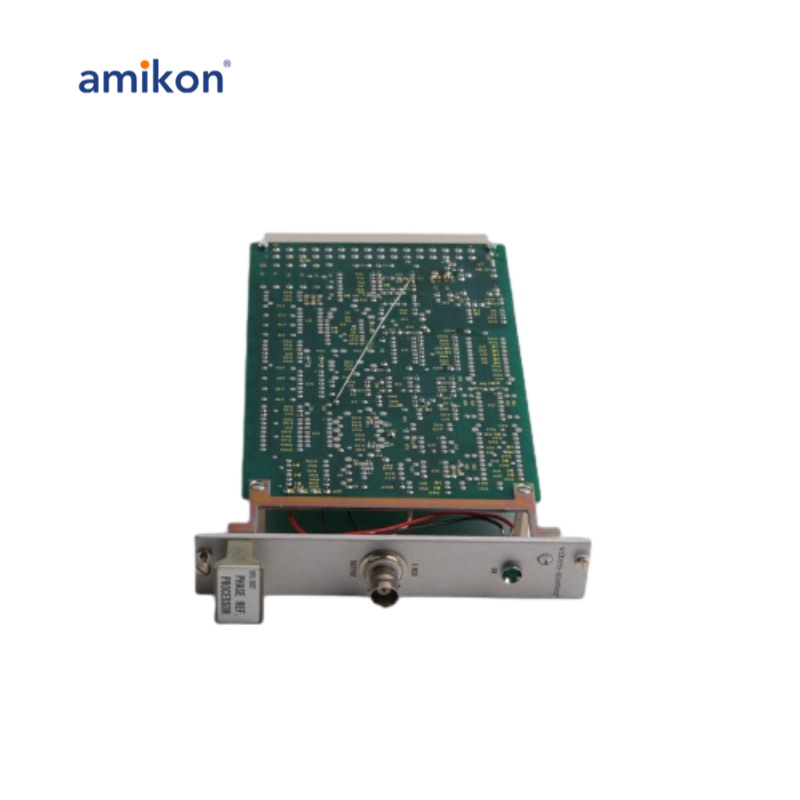

The UVL682 204-682-000-061S is a high-quality control board designed for use in hazardous areas with potentially explosive atmospheres. It features a configurable transfer function and provides a voltage output, ensuring reliable long-term operation. The UVL682 galvanic separation unit is compatible with the IPC704 signal conditioner, which is used with CA accelerometers and CP dynamic pressure sensors. Additionally, it offers a 4 kVRMS galvanic separation between the sensor side, providing both power supply and galvanic separation for sensors and signal conditioners with current or voltage outputs. This makes it ideal for environments that require high reliability and safety.
FAQ
1. What is the primary function of the UVL682 204-682-000-061S module?
The UVL682 module is used for processing and monitoring vibration signals in industrial equipment. It provides high-precision vibration data for equipment condition monitoring and fault prediction.
2. What is the measurement range and accuracy of the UVL682 204-682-000-061S module?
The UVL682 module has a measurement range from 100 Hz to 1 kHz with an accuracy of ±0.5% of full scale.
3. What is the sensitivity of the UVL682 204-682-000-061S module?
The sensitivity of the UVL682 module is 0.1 mV/g.
