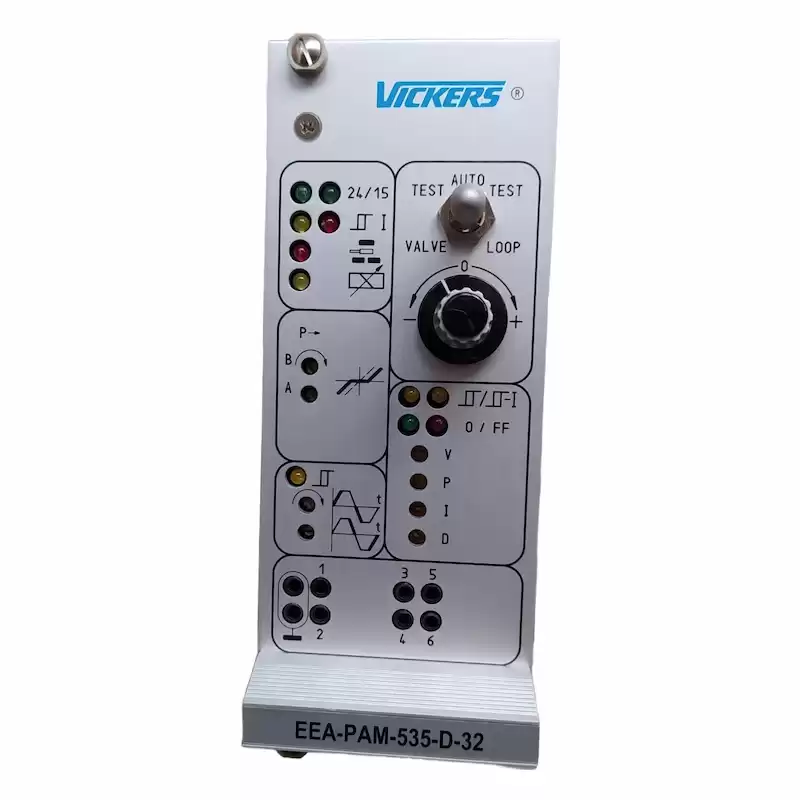

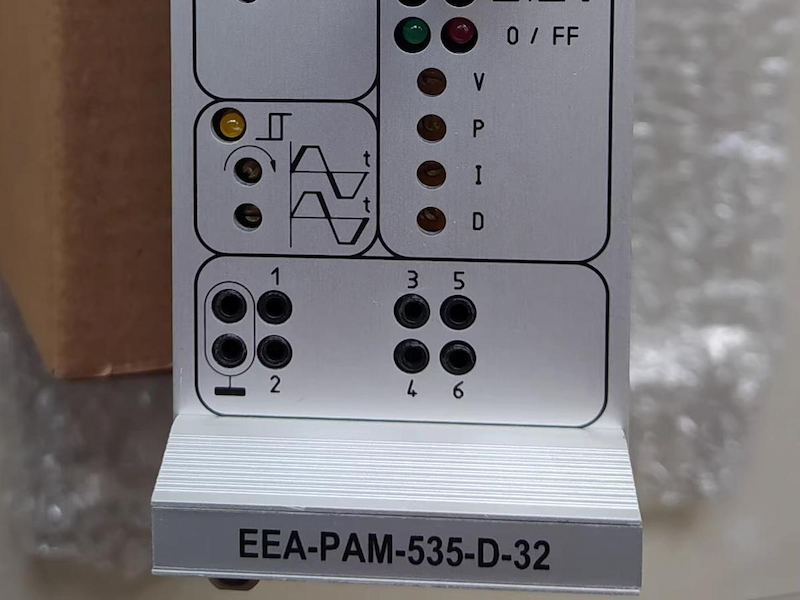

EEA-PAM-535-D-32 Power Amplifiers with PID Modules
The EEA-PAM-535-D-32 Euro cards are power amplifiers with integrated PID modules. Each of these cards replaces two conventional electronic cards.
Features and Benefits
· Includes all features of "A" amplifiers (except gain)
· User configurable PID feed-forward, closed-loop operation
· Command input ramps
· Analog feedback sensor interface
· Automatic switch-over p/Q function
· Built-in test feature
· The design reduces the amount of external wiring, saves space in the rack enclosure and requires only one 24V supply
· The general purpose, integrated module can be configured using DIL switches (D1-D9) and potentiometers for the following applications:
– Closed-loop pressure control using either proportional pressure valves or servo-performance proportional valves
– Closed-loop velocity control
– Closed-loop position control
– p/Q control with internal or external switch-over from Q to p
· The DIL- switch and potentiometer settings can easily be reconfigured on different cards

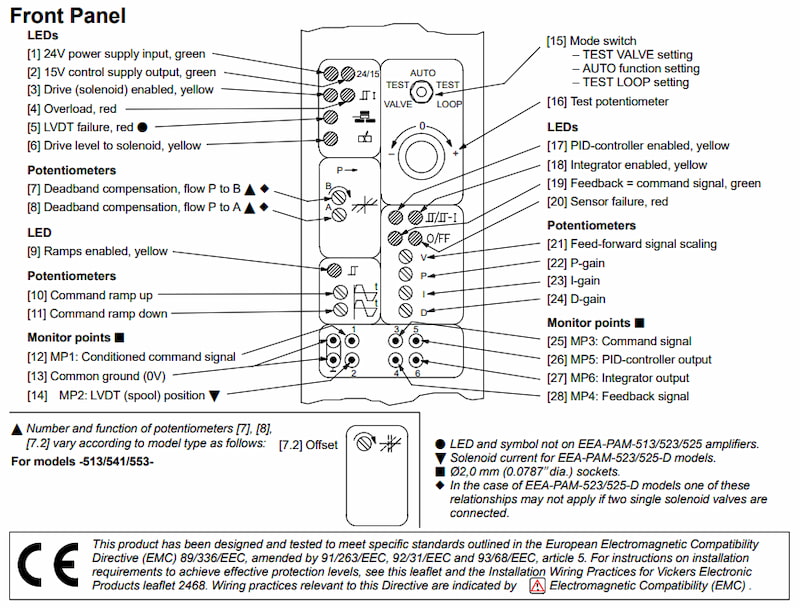

Module Diagrams
Technical Specifications
| Manufacturer |
Vickers |
| Part Number |
EEA-PAM-535-D-32 |
| Ordering Information |
EEA-PAM-535-D-32 |
| Product Catalog |
Hydraulic Applications |
| Description |
Power Amplifiers with PID Modules |
| Voltage |
24 Vdc |
| Current |
4-20 mA or 0-20 mA |
| Dimensions |
50.3 mm x 175.2 mm x 128.4 mm |
| Weight |
330 g |
