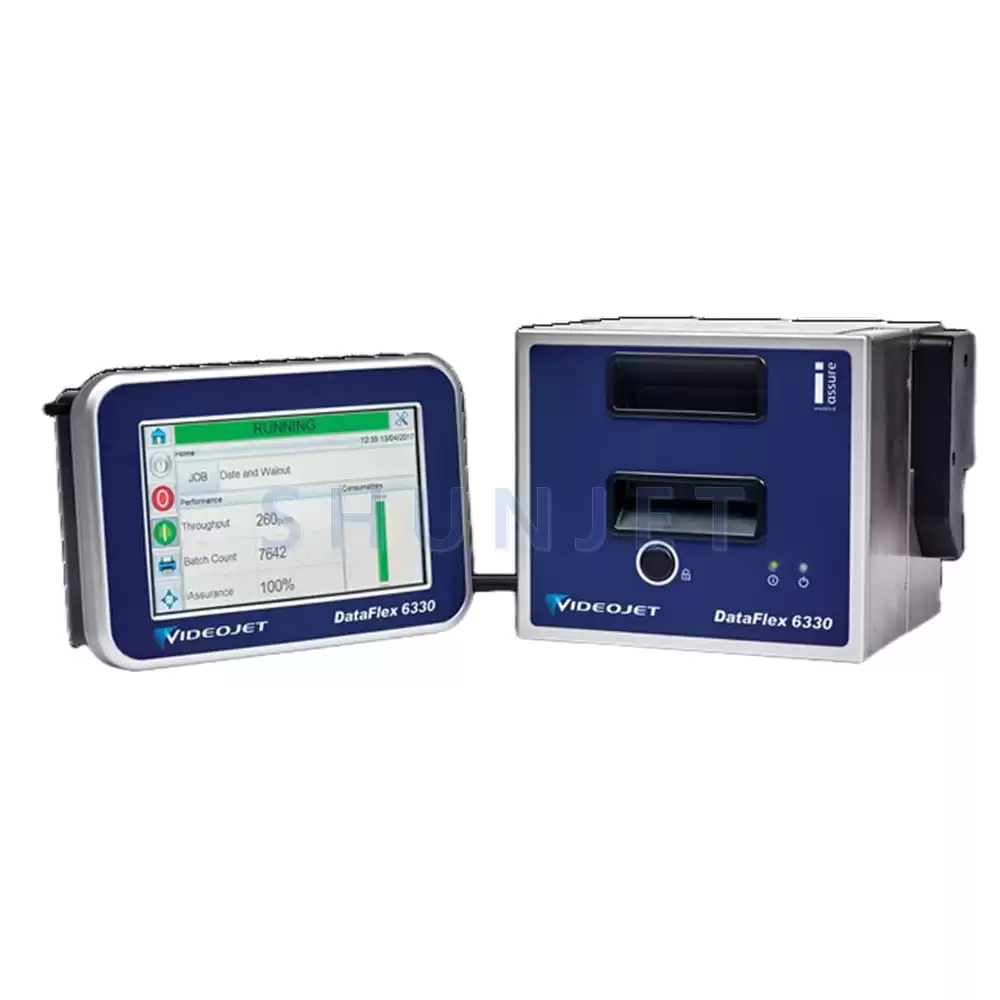

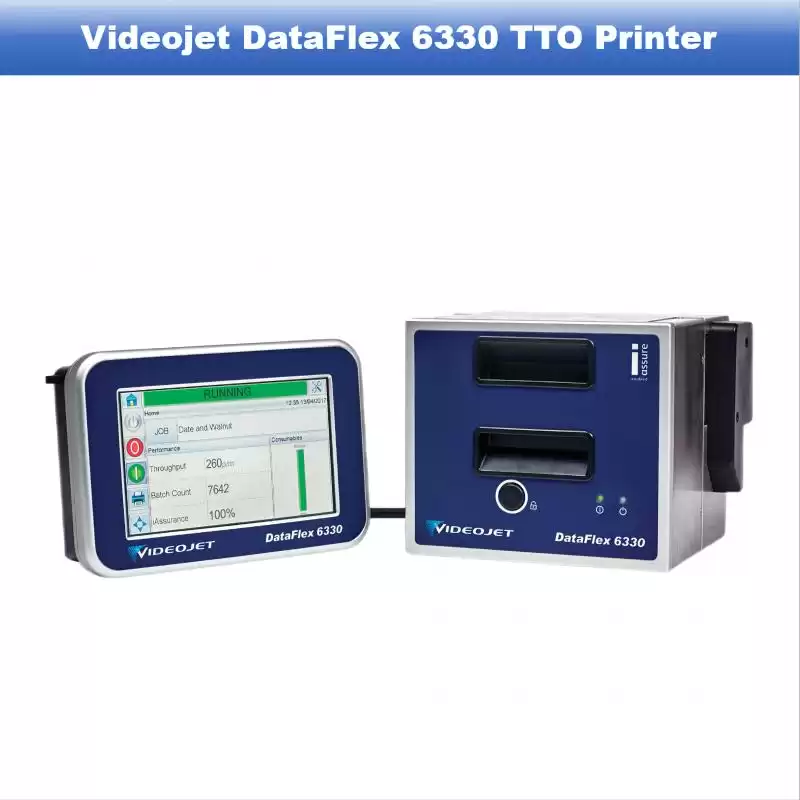

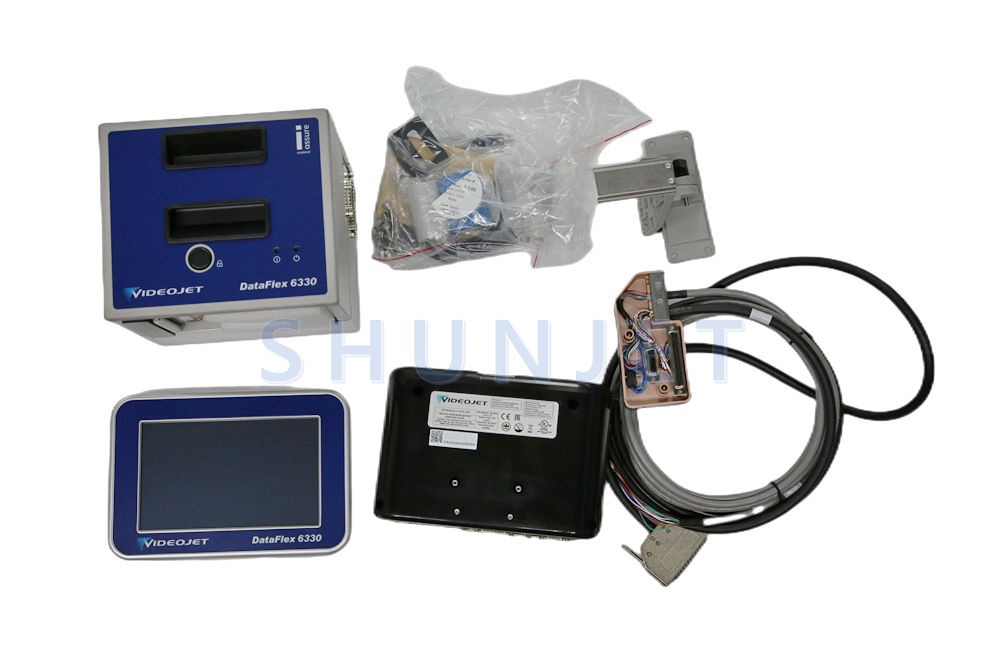

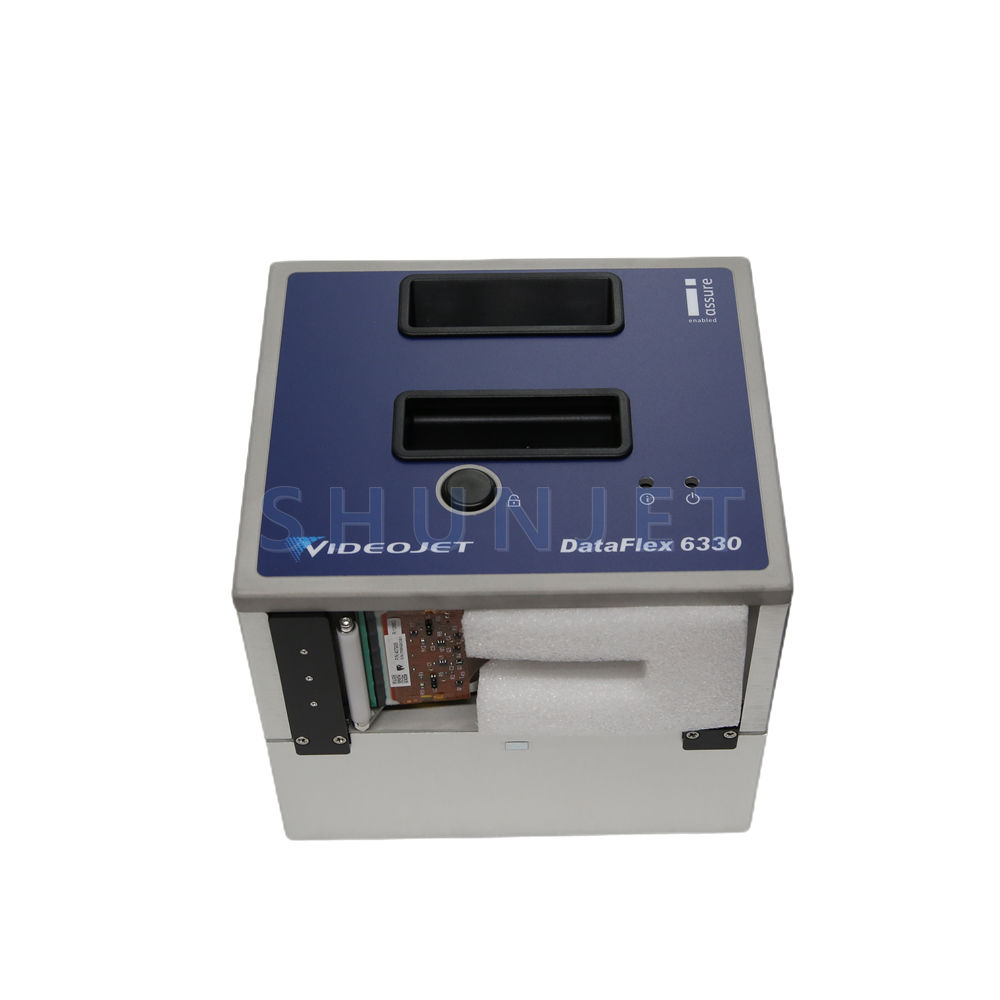

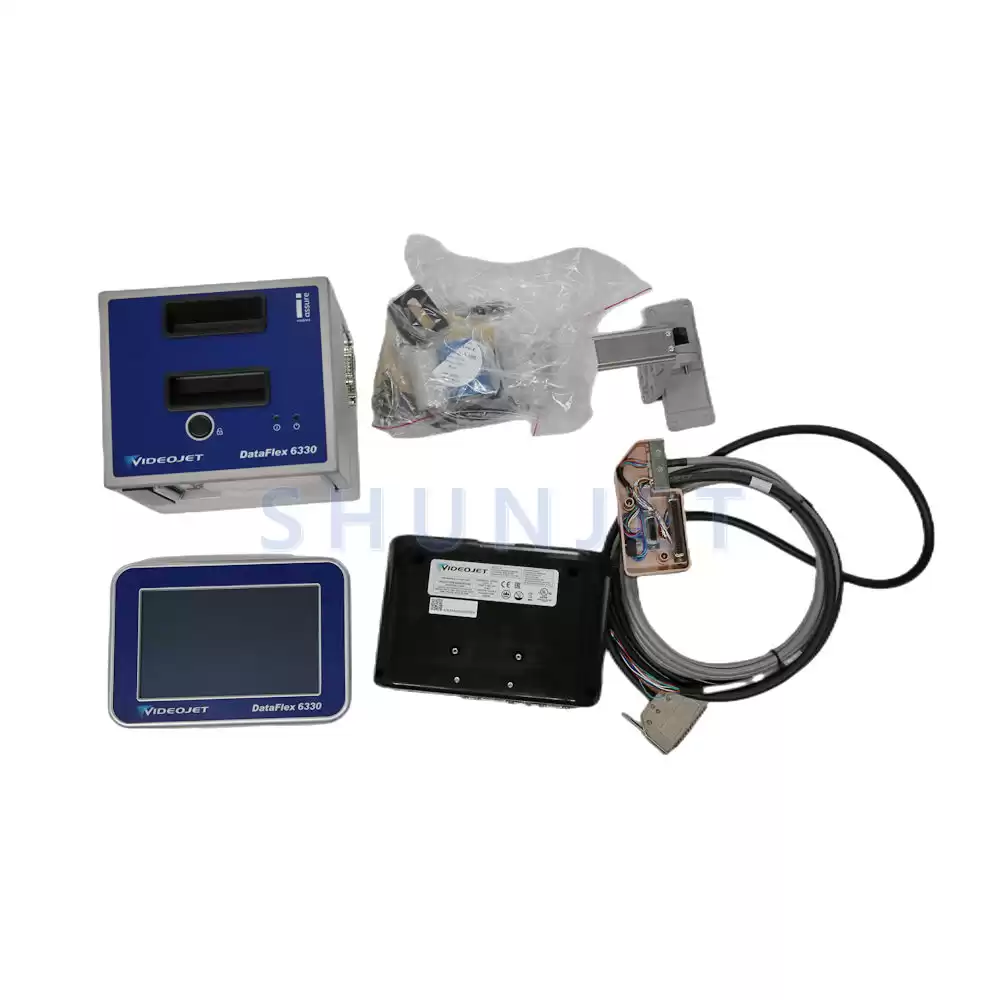

Product Name:Videojet DataFlex 6330 TTO Printer
Product Specifications:
Other benefits also include:
- iAssure™ technology driven built-in code quality checker.
- Maximised uptime advantage provided by a fast-change ribbon cassette, minimal wear to parts and an airless all-electronic operation.
- Print speeds of up to 250 ppm (application and substrate dependent).
- Available in two print widths, 32mm and 53mm, providing the best combination of printhead and ribbon width to deliver the most cost-effective solution for your application requirements.
|
Printer Mode
|
Intermittent and Continuous Motion
|
|
Print Gap
|
Consistent 0.020″ (0.5mm)
|
|
Ribbon Widths
|
6330(53mm) :0.8” (20mm), 2.2” (55mm) max 6330(32mm):0.8” (20mm), 1.3” (33mm) max
|
|
Bar Code Printing
|
EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request
|
|
Operator Interface
|

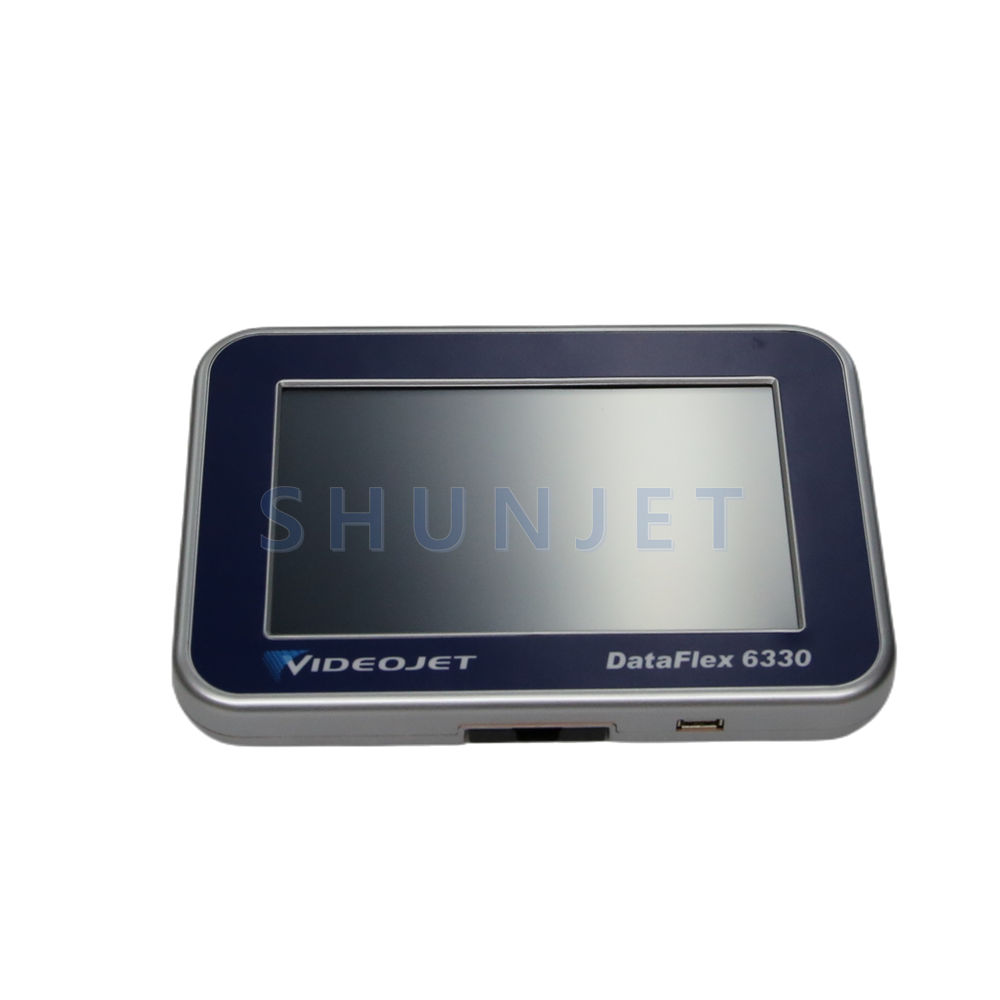

TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support
|
|
Leader/ Follower Capability ( Up to 4 Printers Controlled by One User Interface)
|
Up to four Videojet DataFlex® 6330 printers controlled via a single CLARiTY™ control unit
|
|
Standard Communication
|
RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows drivers ZPL and SATO emulations
|
|
Web Browser Capability
|
Yes
|
|
Continuous Mode
|
–
|
|
Maximum Print Area ( Width x Length)
|
6330(53mm) :2.1” (53mm) wide x 7.9” (200mm) long 6330(32mm):1.3” (32mm) wide x 7.9” (200mm) long
|
|
Maximum Print Speed
|
29.5 in./sec (750mm/sec)
|
|
Minimum Print Speed
|
0.04 in./sec (1mm/sec)
|
|
Estimated Maximum Throughput ( Single Line Code)
|
6330(53mm) : Up to 250 prints per minute 6330(32mm):Up to 250 prints per minute
|
|
Intermittent Mode
|
–
|
|
Maximum Print Area ( Width x Length)
|
6330(53mm) : 2.1” (53mm) wide x 2.95” (75mm) long 6330(32mm): 1.3” (32mm) wide x 2.95” (75mm) long
|
|
Maximum Print Speed
|
6330(53mm) : 29.5 in./sec (750mm/sec) 6330(32mm): 29.5 in./sec (750mm/sec)
|
|
Minimum Print Speed
|
1.6 in./sec (40mm/sec) full print quality; 0.4 in./ sec (10mm/sec) draft mode print quality
|
|
Note
|
**6330: The 6330 is a medium speed Thermal Transfer Overprinter
|
|
Secondary Low Inventory Warning
|
50
|
