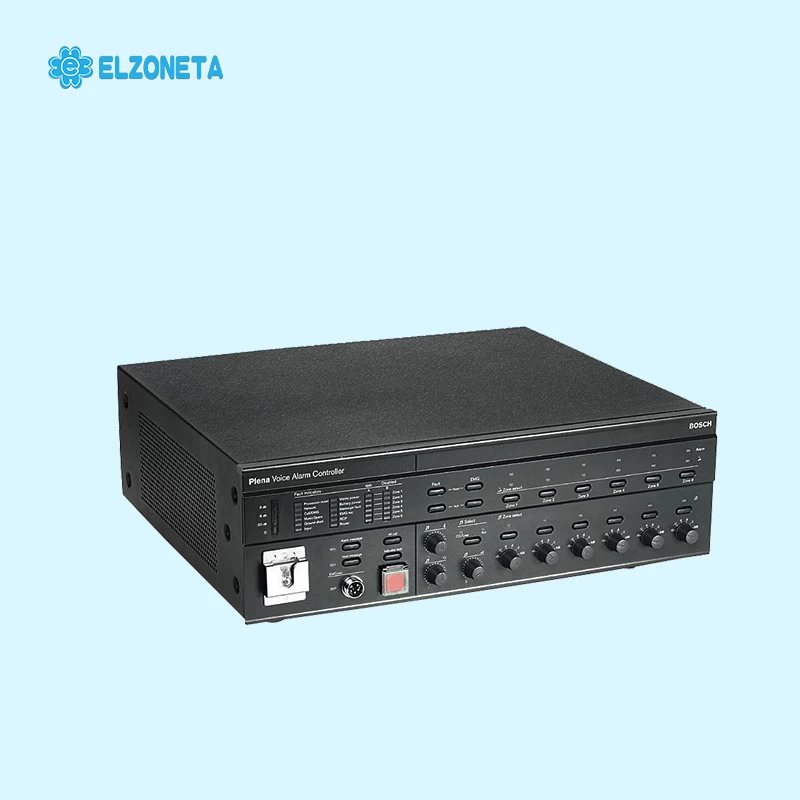

EC-PVS-CTR01 Public Broadcast System Controller
Feature
1. Heart of the Plena Voice Alarm System
2. EN 54 16 certified and EN 60849 compliant
3. Message manager and 240 W amplifier build in
4. Six zone outputs
5. 6 emergency and 6 business triggers
Specification
Mains power supply
Voltage: 230/115VAC, ±15%, 50/60 Hz
Current inrush: 8 A
Max power consumption: 600 VA
Battery power supply
Voltage : 24 VDC, +15% / -15%
Current max : 14 A
Performance
Output power (rms/maximum) : 240 W / 360 W
Power reduction on backup power : -1 dB
Frequency response : 60 Hz to 18 kHz (+1/-3 dB at -10 dB ref. rated output)
Distortion : <1% at rated output power, 1 kHz
Bass control : -8/+8 dB at 100 Hz
Treble control : -8/+8 dB at 10 kHz
Mic/line input : 1 x
Connector : XLR, 6.3 mm jack
Sensitivity : 1 mV (mic), 1 V (line)
Impedance : >1 kohm (mic); >5 kohm (line)
S/N (flat at max volume) : >63 dB (mic); >70 dB (line)
S/N (flat at min volme/muted) : >75 dB
CMRR : >40 dB (50 Hz – 20 kHz)
Headroom : >25 dB
Speech filter : -3 dB at 315 Hz, high-pass, 6 dB/oct
Phantom power supply : 12 V (mic mode only)
VOX trigger level : -20 dB (100 µV mic / 100 mV line) or via input contact
Limiter : Automatic
Line input : (BGM and PC call station)
Connector : Cinch, stereo converted to mono, unbalanced
Sensitivity : 200 mV
Impedance : 22 kohm
S/N (flat at max volume) : >70 dB
S/N (flat at min volume/muted) : >75 dB
Headroom : >25 dB
Trigger Inputs : 12 x (6 EMG, 6 business)
Connectors : MC1,5 / 14-ST-3,5
Activation Programmable
Supervision : On EMG inputs, programmable
Supervision method : Series / parallel resistor
100 V input
Connector : MSTB 2,5 /16-ST
Power handling capacity : 1000 W
Tape output : 1 x
Connector : Cinch, 2 x mono
Nominal level : 350 mV
Impedance : <1 kohm
Loudspeaker outputs
Connectors : MSTB 2,5 /16-ST, floating
100 V output : 700 W rated per zone
Volume override types : 3-wire, 4-wire (24 V), 4-wire failsafe
BGM zone output Attenuation : 70 / 50 /35 /25 / 18 / 13 V for0 / -3 / -6 / -9 / -12 / -15 dB120 / 60 / 30 / 15 / 8 /4 W
Output Contacts
Connector Type : MC 1,5/14-ST-3,5
Rating : 100 V, 2A, voltage free
Emergency active relay : NO / COM / NC
Call active relay : NO / COM / NC
Fault relay : NO / COM / NC normally energized (failsafe)
General purpose relays : NO / COM
Mains operation
Max power : 550 W
-3dB : 440 W
-6dB : 340 W
Pilot tone* : 136 W
Idle : 60 W
24 VDC operation
Max power : 14.0 A (336 W)
-3 dB : 12.5 A (300 W)
-6 dB : 9.5 A (228 W)
Pilot tone* : 2.5 A (60 W)
Idle : 0.9 A (22 W)
Data format : WAV-file, 16-bit PCM, mono
Supported sample rates (fs) : 24 / 22.05 / 16 / 12 / 11.025 / 8 kHz
Frequency response
at fs=24kHz : 100 Hz to 11 kHz (+1/-3 dB)
at fs=22.05kHz : 100 Hz to 10 kHz (+1/-3 dB )
at fs=16kHz : 100 Hz to 7.3 kHz (+1/-3 dB )
at fs=12kHz : 100 Hz to 5.5 kHz (+1/-3 dB)
at fs=11.025kHz : 100 Hz to 5 kHz (+1/-3 dB)
at fs=8kHz : 100 Hz to 3.6 kHz (+1/-3 dB)
Distortion : <0.1% at 1 kHz
S/N (flat at max volume) : >80 dB
Memory capacity : 16 MB Flash ROM
Recording / playback time : 1000 seconds at fs = 8 kHz333 seconds at fs = 24 kHz
Number of messages : 255 max
Supervision Flash ROM : Continuous checksum control
Supervision DAC : 1 Hz pilot tone
Data retention time : >10 years
Dimensions (H x W x D) : 144 x 430 x 370 mm (19" wide, 3U high)
Weight : Approx. 21.17 kg
Mounting : 19”rack
Color : Charcoal
Operating temperature : -10 ºC to +55 ºC (14 ºF to +131 ºF)
Storage and transport temperature : -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity : <95%
Acoustic noise level of fan : <48 dB SPL at 1 m (max output)
