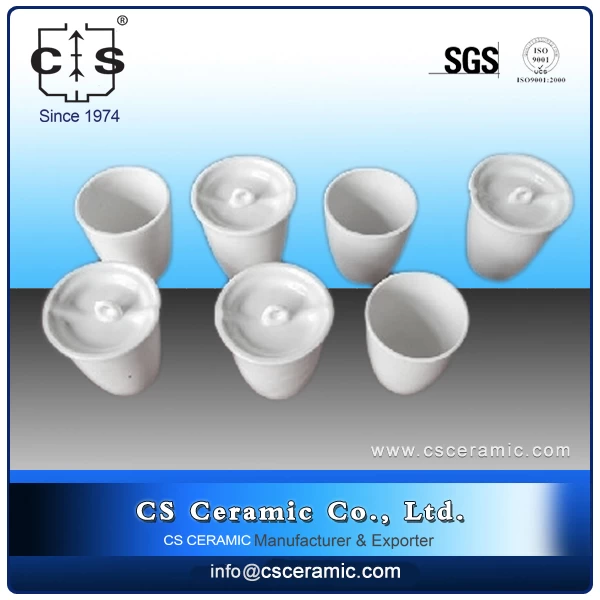

Volatile Porcelain Crucible with Tight Lid for Volatile Component Measurement

1.The materials used with high purity enable products to resist corrosion

2. Withstand sharp change in temperature.




  • Ship wayby express/air/sea
  • Materialceramic
  • Size15ml
  • DescriptiionVolatile Porcelain Ceramic Crucible

Volatile Porcelain Crucible with Tight Lid for Volatile Component Measurement

Product size:

Item NO. Capacity(ml) Rim diam.(mm) Bottom  diam.(mm) Height(mm)
CS-201 15 28 18 40


Product introduction
Crucible is an important part of the chemical instruments.It is melting and refining metal liquid and solid liquid heating, reaction vessel, is to ensure that the basis of chemical reactions proceed smoothly.Porcelain is made of kaolin clay firing a material, implements than hard pottery is meticulous.Porcelain crucible is generally cannot be used with NAOH, NA2O2, NA2CO3 alkaline substance, such as flux melting, in order to avoid corrosion porcelain crucible.Porcelain crucible can't contact with hydrofluoric acid.

More dimension of Volatile Porcelain Ceramic Crucible with Tight Lid for Volatile Component Measurement:

Item NO. Capacity(ml) Rim diam.(mm) Bottom  diam.(mm) Height(mm)
CS-201 15 28 18 40
CS-202 20 30 20 43
CS-203 30 40 24 50

Usage:
Under normal circumstances most of the material will be analyzed and used to bake saggar made from different materials within the system first and then placed into the crucible or analysis or fired for heating eequipment.

According to the speed and heating eequipment and temperature characteristics of the product with drawal, some are faster and some are slower.
Because of the crucible and saggar made from different materials with thermal expansion materials.

Crucible easily lead to excessive heating or cooling cracking so it is best to slow down and saggar made from different materials. This will extend the life of crucible and saggar made from different materials.


Special offer:      Most of our crucibles are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used
