Voltage Controlled Temperature Compensated Crystal Oscillators (VC-TCXO) PVC1612

Features

Low voltage operation

Low phase noise

Prevention of moisture packing is unnecessary

Moisture sensitivity level: LEVEL 1 (IPC/ JEDC J-STD-033)


Applications

Mobile phone (W-CDMA, CDMA2000, TD-SCDMA, GSM, GPRS, Mobile W-PHS)

Other wireless radio communications

GPS

Industrial radio communications

Wearable decices


Facebook Twitter Pinterest LinkedIn 分享

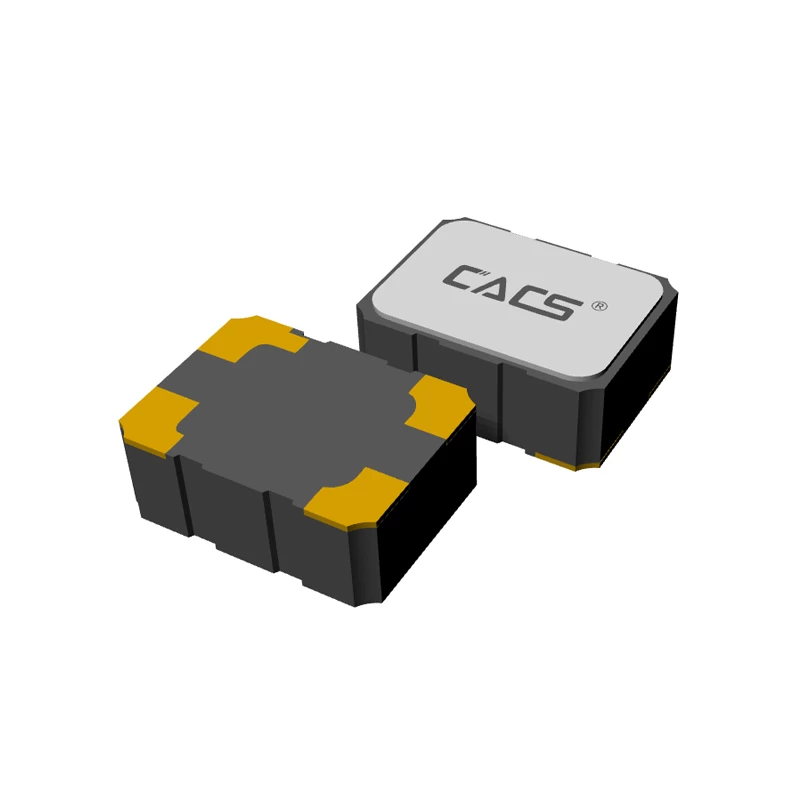

Voltage Controlled Temperature Compensated Crystal Oscillators PVC1612

VC-TCXO in ceramic seam seal SMD packages - HCMOS/ LVCMOS output

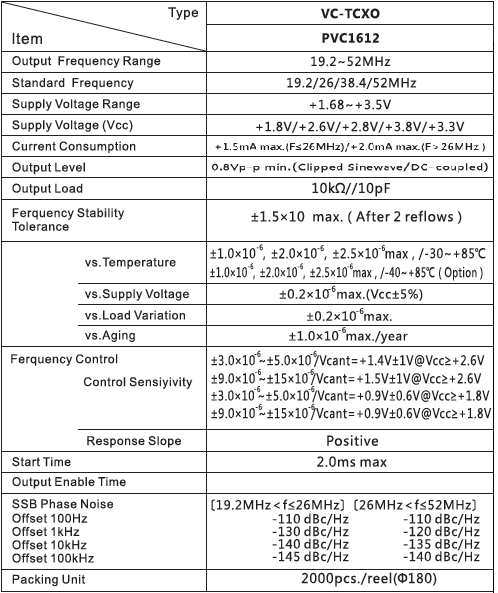

Electrical Parameters

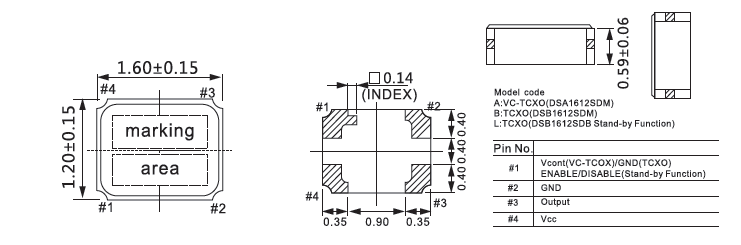

Dimensions


Reflow

Profiles Feature Pb-Free Assembly
Average Ramp-up Rate (Ts max to Tp) 3℃/second max.
Preheat
■  Temperature Min (Ts min)
■  Temperature Max (Ts max)
■  Time (ts min to ts max) 		125℃
200℃
60~180 seconds
Time maintained above
■  Temperature (TL)
■  Time (tL) 		217℃
60~150 seconds
Peak/Classification Temperature (Tp) 260℃
Time within 5℃ of actual Peak
Temperature (tp) 		20~40 seconds
Ramp-down rate 6℃/second max.
Time 25℃ to Peak Temperature 8 minutes max.
Suggest reflow times 3 Times max
