Volumetric piston cold water meter

The rotary piston water meter utilizes a rotary piston measuring mechanism, and the measuring accuracy is accurate. The technical mechanism is special liquid sealed, which has clear readings, light appearance, and the inlet valve is equipped with a check valve to prevent backflow, and the water meter can be installed horizontally ,vertically or inclined . According to the user's request, the conversion electric signal output can be increased to achieve the purpose of remote reading. And the plastic case LXH-15B-40B, using excellent engineering materials, high strength, good toughness, light and beautiful appearance is a more economical and environmentally friendly high-performance water meter.



Application:

Measuring the volume of cold potable water passing through the pipeline

Quality:

Volumetric rotary piston principle of measurement
Completely plastic shell, solid and robust design, long service guaranteed.
LXH-15-20 is no location limitation for installation. Accuracy is not to be affected Wherever installed at a horizontal, vertical or inclined pipeline
Register is sealed with a special liquid to keep a clear reading in long term service
Accurate measurement with conformity to ISO 4064 class C.
High quality materials fiberglass reinforced polymerization amine, corrosion resistance.
Plastic thread connecting fitting.
Durable tamperproof structure;

Working condition:
temperature:≤40℃
Pressure:≤1Mpa

ACCESSORIES

one meter with 2 pcs tubes,2 pcs nuts and 2 pcs gastkets for coupling.

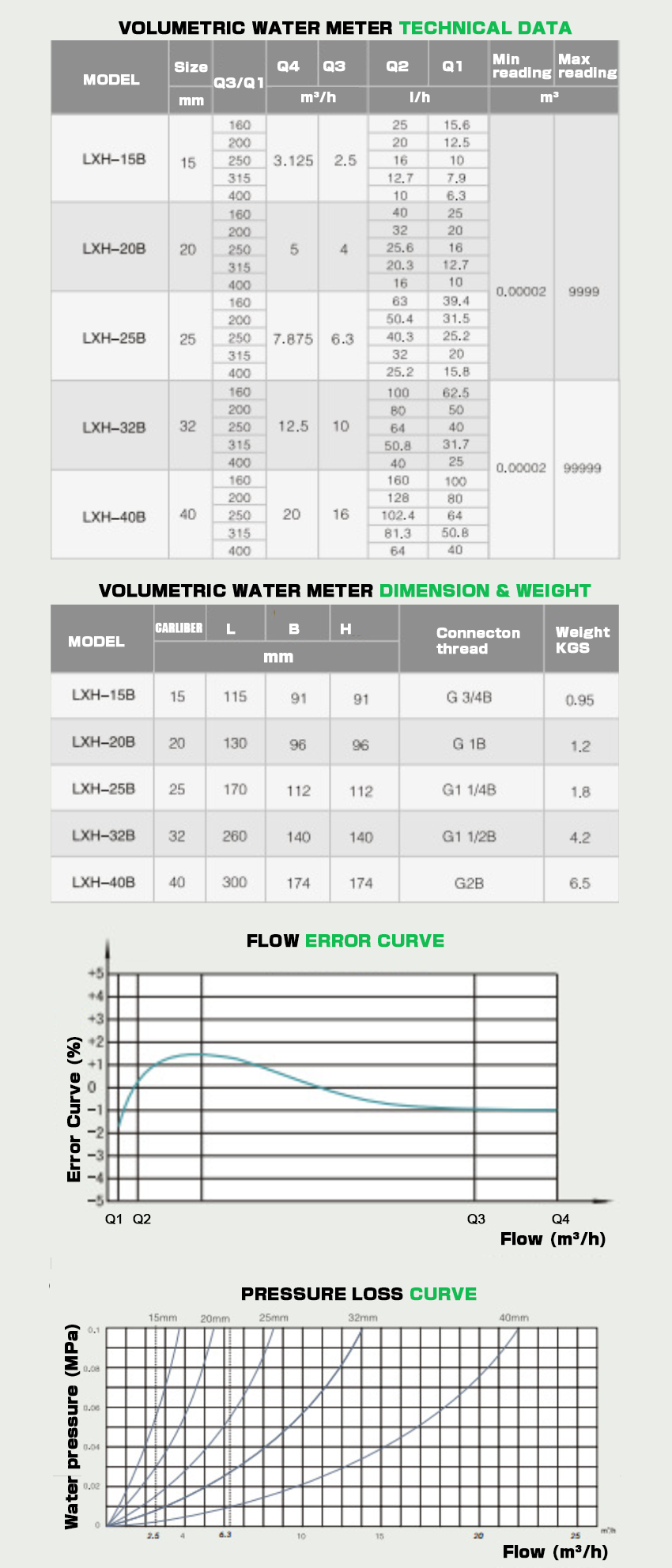

Maximum Permissible Error
Q1→Q2(ex Q2)=±5%;
Q2→Q4(both included)=±2% or ±3%(hot water)Volumetric rotary piston water meter
