VOLVO excavator final drive bearings VOE14599923 for D85A-12

VOE14599923 Ball bearing Volvo.Heavy parts fit: EC300D, EC250D,EC250E,EC300E.



VOLVO excavator bearings VOE14599923

P/N VOE14599923 Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:

Angular contact bearing

Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

Production Process






Product Photos

VOE14599923VOLVO VOE14599923Bearing VOE14599923

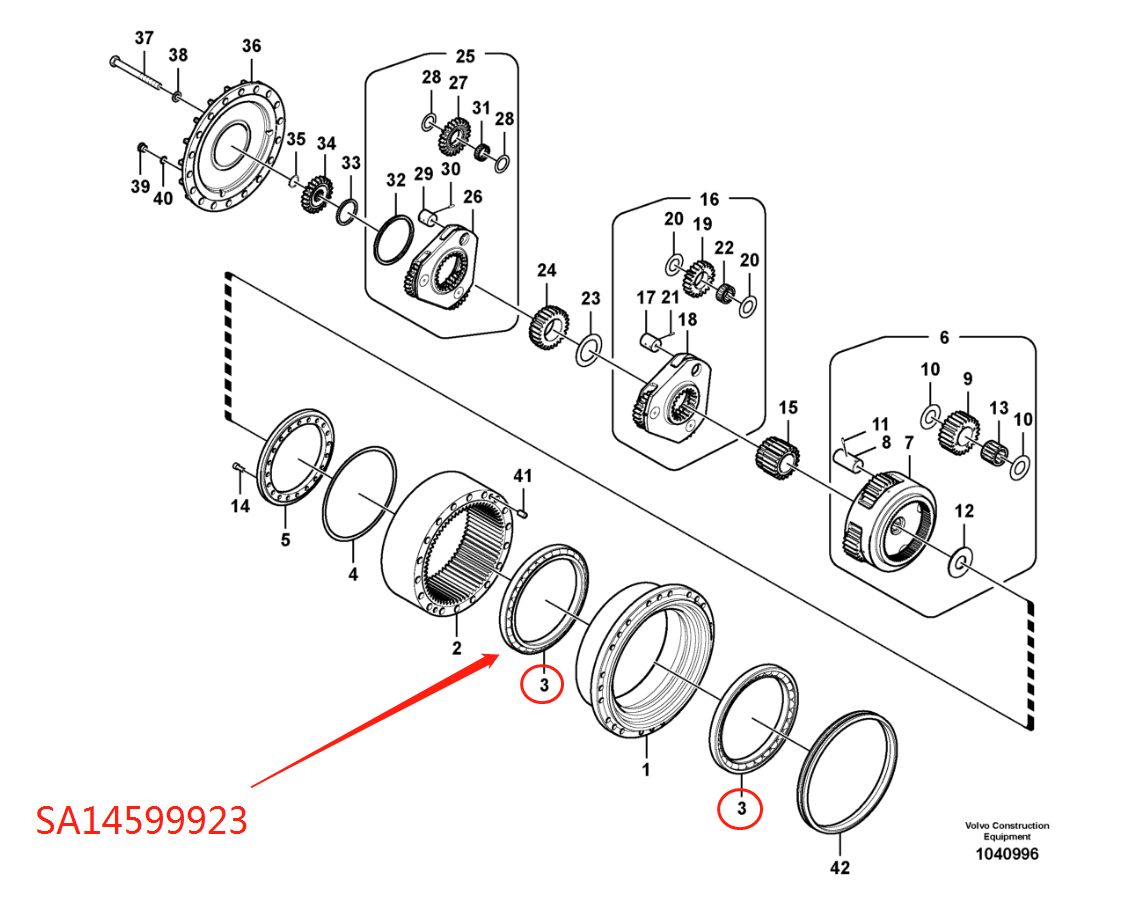

Any other parts for the system you need , pls search from below picture and form list then mark to me , we will quote to you.

VOLVO PARTS




Pos.

Part No

Qty

Parts name

Comments



  VOE14599921

  [1]

  Travel gearbox



1.

  VOE14599922

  [1]

  Housing



2.

  VOE14599932

  [1]

  Gear



3.

  SA14599923

  [2]

  Bearing



4.

  VOE14599927

  [1]

  Shim

  THICK = 0,6 MM

4.

  VOE14599928

  [1]

  Shim

  THICK = 0,8 MM

4.

  VOE14599929

  [1]

  Shim

  THICK = 1,0 MM

4.

  VOE14599930

  [1]

  Shim

  THICK = 0,7 MM

4.

  VOE14599931

  [1]

  Shim

  THICK = 0,9 MM

4.

  VOE14607977

  [1]

  Shim

  THICK = 1,1 MM

5.

  VOE14599926

  [1]

  Retainer



6.

  VOE14599933

  [1]

  Planet carrier



7.

  None14599934

  [1]

  Carrier



8.

  VOE14566415

  [4]

  Pin



9.

  VOE14599935

  [4]

  Planetary Gear



10.

  VOE14566414

  [8]

  Washer



11.

  SA9325-06012

  [4]

  Spring pin



12.

  SA1036-00300

  [1]

  Ring



13.

  VOE14566412

  [4]

  Needle bearing



14.

  VOE983919

  [16]

  Hex. socket screw



15.

  VOE14599938

  [1]

  Gear



16.

  VOE14599939

  [0001]

  Planet carrier



17.

  VOE14599944

  [3]

  Pin



18.

  None14599940

  [1]

  Carrier



19.

  VOE14599941

  [3]

  Planetary Gear



20.

  VOE14599943

  [6]

  Washer



21.

  SA9325-06012

  [3]

  Spring pin



22.

  VOE14599942

  [3]

  Needle Bearing



23.

  VOE14566433

  [1]

  Thrust washer



24.

  VOE14599945

  [1]

  Gear



25.

  VOE14599946

  [1]

  Planet carrier



26.

  None14599947

  [1]

  Carrier



27.

  VOE14599948

  [3]

  Planetary Gear



28.

  VOE14599950

  [6]

  Washer



29.

  VOE14599951

  [3]

  Pin



30.

  VOE951955

  [3]

  Spring pin



31.

  VOE14599949

  [3]

  Needle Bearing



32.

  VOE14569232

  [1]

  Ring



33.

  VOE14566417

  [1]

  Ring



34.

  VOE14599952

  [1]

  Gear



35.

  VOE9541-01038

  [1]

  Snap Ring



36.

  VOE14599953

  [1]

  Cover



37.

  VOE982211

  [18]

  Hexagon screw



38.

  SA9213-20000

  [18]

  Spring washer



39.

  VOE14883847

  [2]

  Plug



40.

  VOE990557

  [2]

  O-ring



41.

  VOE9324-21617

  [4]

  Pin



42.

  VOE14599925

  [1]

  Seal



Company

ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!

ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!





Packaging



Delivery:

1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.



Why choose us?

  ✬1.Trusted Product


  ✬2.Advanced Technology


  ✬3.Reliable Service


  ✬4.Competitive price
