VOLVO Final drive bearing VOE14704141,VOE 14704141 for EC290B

VOLVO excavator travel gearbox bearing VOE14704141

VOE14704141 Ball bearing Volvo.Heavy parts fit: EC290B, ECR355E



VOLVO excavator travel bearing VOE14704141

P/N

VOE14704141

Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Angular contact bearings

Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

Production Process






Product Photos

VOE14704141VOLVO VOE14704141Bearing VOE14704141

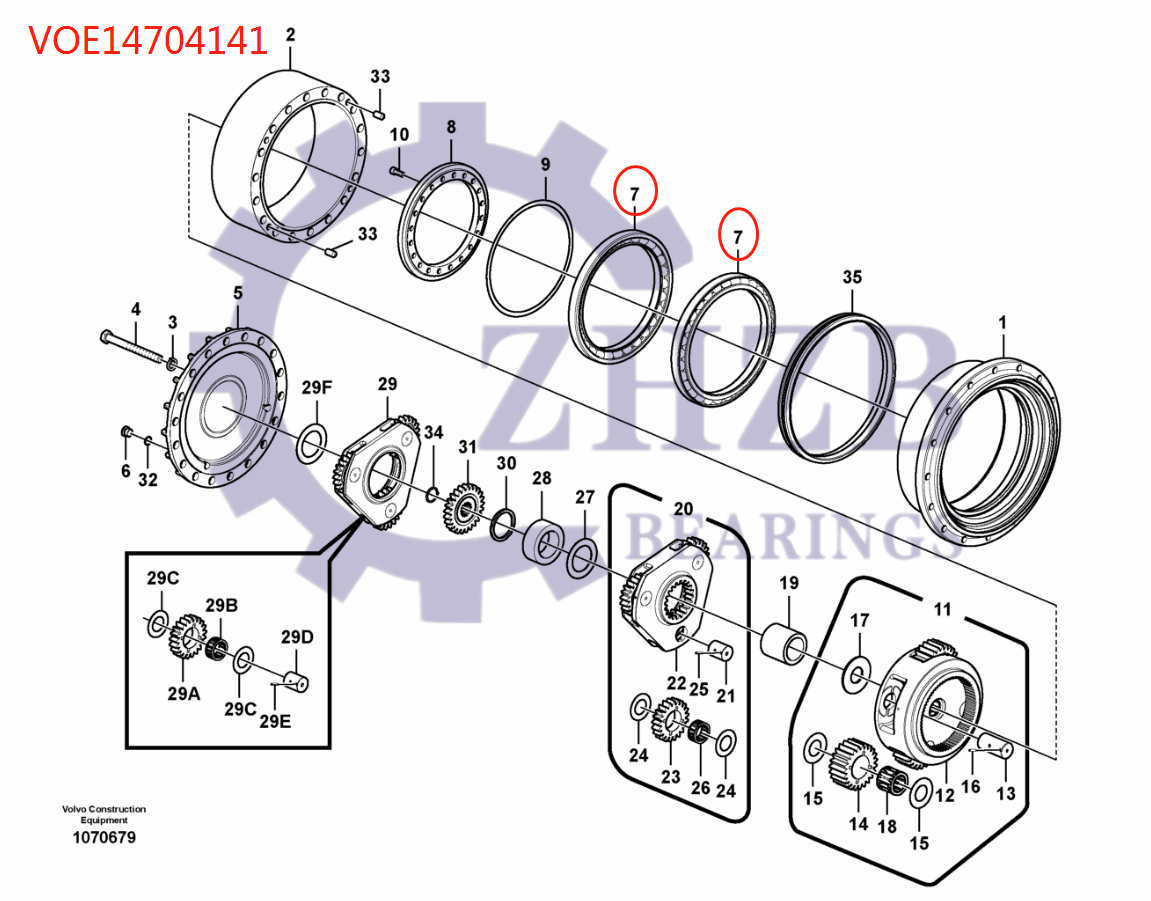

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

VOLVO PARTS

Pos.

Part No

Qty

Parts name



  VOE14569763

  [1]

  Gearbox



  VOE14704139

  [1]

  Travel gearbox

1.

  VOE14570930

  [1]

  Housing

2.

  VOE14566409

  [1]

  Gear

3.

  SA9213-20000

  [18]

  Spring washer

4.

  VOE60110006

  [19]

  Hexagon screw

5.

  VOE14566432

  [1]

  Cover

6.

  VOE14883847

  [2]

  Plug

7.

  SA7117-38230

  [2]

  Bearing

7.

  VOE14704141

  [2]

  Bearing

8.

  VOE14566403

  [1]

  Retainer

9.

  VOE14566404

  [REQ]

  Shim

9.

  VOE14566405

  [REQ]

  Shim

9.

  VOE14566406

  [REQ]

  Shim

9.

  VOE14566407

  [REQ]

  Shim

9.

  VOE14566408

  [REQ]

  Shim

10.

  VOE984088

  [20]

  Hex. socket screw

11.

  VOE14566410

  [1]

  Planet carrier

12.

  VOE14566411

  [1]

  Planet carrier

13.

  VOE14566415

  [5]

  Pin

14.

  VOE14566413

  [4]

  Planetary gear

15.

  VOE14566414

  [8]

  Washer

16.

  SA9325-06012

  [4]

  Spring pin

17.

  SA8230-21020

  [1]

  Thrust ring

18.

  VOE14566412

  [4]

  Needle bearing

19.

  VOE14566416

  [1]

  Gear

20.

  VOE14566418

  [1]

  Planet carrier

21.

  VOE14566423

  [3]

  Pin

22.

  VOE14566419

  [1]

  Planet carrier

23.

  VOE14566421

  [3]

  Planetary gear

24.

  VOE14566422

  [6]

  Washer

25.

  SA9325-06012

  [3]

  Spring pin

26.

  VOE14566420

  [3]

  Needle bearing

27.

  VOE14566433

  [1]

  Thrust washer

28.

  VOE14566424

  [1]

  Gear

29.

  VOE14570931

  [1]

  Planet carrier

29A.

  VOE14570933

  [3]

  Gear

29B.

  VOE14566427

  [3]

  Needle bearing

29C.

  VOE14566429

  [6]

  Washer

29D.

  VOE14566430

  [3]

  Pin

29E.

  SA9325-06012

  [3]

  Spring pin

29F.

  VOE14569232

  [1]

  Ring

30.

  VOE14566417

  [1]

  Ring

31.

  VOE14570934

  [1]

  Gear

32.

  VOE990557

  [2]

  O-ring

33.

  VOE950677

  [2]

  Pin

34.

  VOE914467

  [1]

  Retaining ring

35.

  VOE14667679

  [1]

  Seal

Pos.

Part No

Qty

Parts name

Comments



  VOE14250820

  [1]

  Swg Gearbox



1.

  VOE14250819

  [1]

  Swg Pin Shaft



2.

  VOE14048756

  [1]

  Gear



3.

  VOE6241672

  [1]

  Roller bearing



4.

  VOE14233061

  [1]

  Gear housing



5.

  VOE14023409

  [3]

  Plug



6.

  VOE14250818

  [1]

  Bearing housing



7.

  VOE14023278

  [6]

  Allen Hd Screw



8.

  VOE955785

  [6]

  Hexagon nut



9.

  VOE13955295

  [4]

  Screw



10.

  VOE14250821

  [1]

  Tube



11.

  VOE14013571

  [1]

  Roller bearing



12.

  VOE925268

  [1]

  O-ring



13.

  VOE14250823

  [1]

  Cover



14.

  VOE940132

  [6]

  Hexagon screw



15.

  VOE14214434

  [1]

  Face Sealing



16.

  VOE14250822

  [1]

  Spacer



17.

  VOE925079

  [1]

  O-ring



18.

  VOE14250719

  [1]

  Gear



19.

  VOE14251432

  [1]

  Washer



20.

  VOE14014695

  [2]

  Screw



21.

  VOE14024293

  [REQ]

  Locking fluid



22.

  VOE14040086

  [1]

  Gear



23.

  VOE14013568

  [1]

  Roller bearing



24.

  VOE14040091

  [1]

  Spacer



25.

  VOE14040083

  [1]

  Gear



26.

  VOE14013633

  [1]

  Roller bearing



27.

  VOE14233060

  [1]

  Gear housing



28.

  VOE970980

  [8]

  Hexagon screw



29.

  VOE14024151

  [REQ]

  Sealant



Company

ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!

ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!





Packaging



Delivery:

1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.



Why choose us?

  ✬1.Trusted Product


  ✬2.Advanced Technology


  ✬3.Reliable Service


  ✬4.Competitive price




FAQ

Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.

Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.

Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send lpc for quality testing if we have the item you need in stock
