VOLVO excavator travel bearing PJ7417224
|
P/N
|
PJ7417224
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Angular contact bearing
|
Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience
Production Process
Product Photos

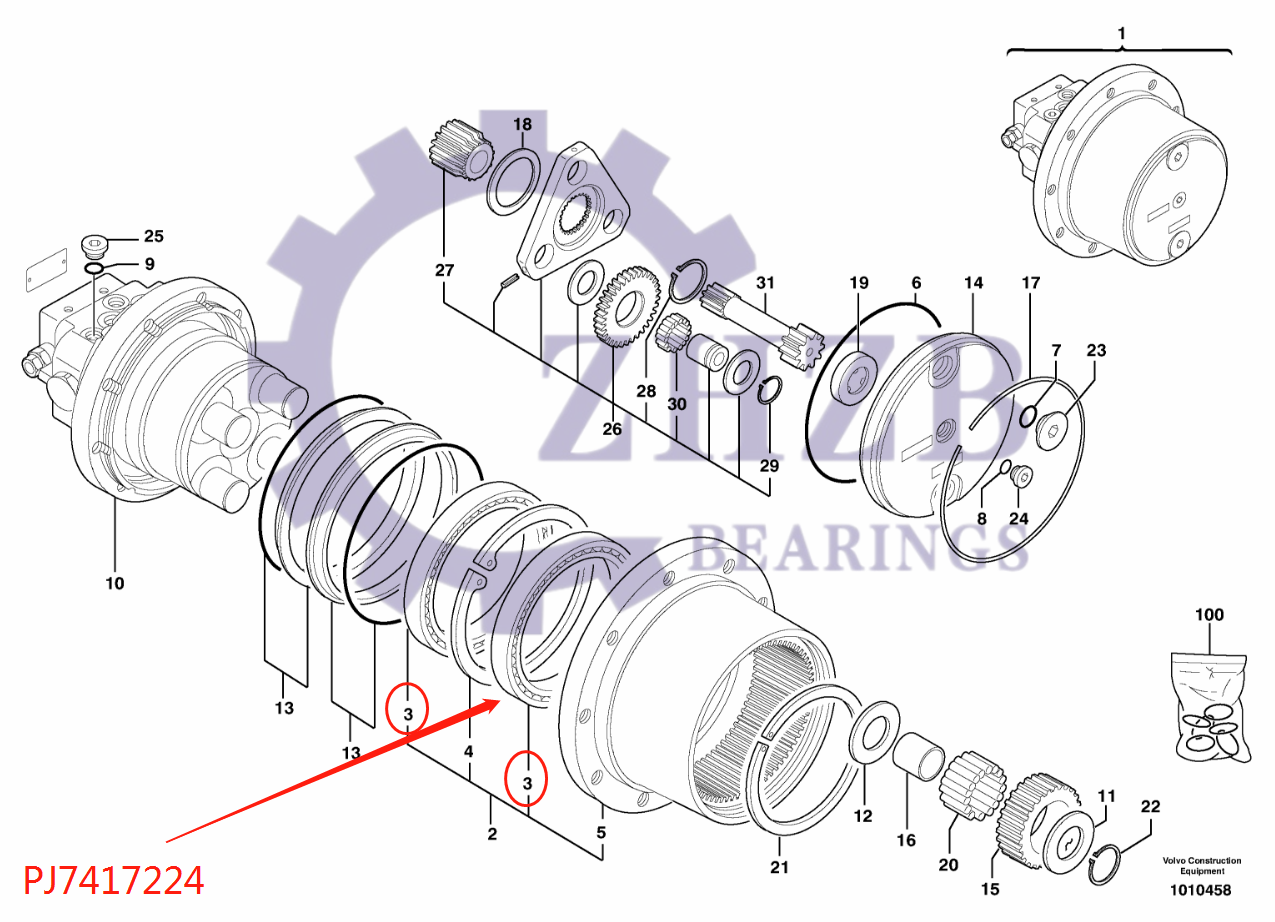

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
1.
|
PJ4890101
|
[2]
|
Gear-motor
|
S/N - 281.10304
|
|
1.
|
PJ4890106
|
[2]
|
Drive unit
|
S/N 281.10305 - 15302
|
|
1.
|
VOE11802600
|
[2]
|
Gear-motor
|
S/N 281.15303 -
|
|
2.
|
PJ7417247
|
[1]
|
Body
|
S/N - 281.10304
|
|
2.
|
PJ7417756
|
[1]
|
Body
|
S/N 281.10305 -
|
|
3.
|
PJ7417224
|
[2]
|
Ball bearing
|
|
|
4.
|
PJ7417235
|
[1]
|
Snap Ring
|
|
|
5.
|
|
[1]
|
Body
|
ORDER ITEM NO 2
|
|
6.
|
PJ7417261
|
[1]
|
O-ring
|
|
|
7.
|
PJ7417266
|
[2]
|
O-ring
|
|
|
8.
|
PJ7416887
|
[1]
|
O-ring
|
|
|
9.
|
PJ7417263
|
[2]
|
O-ring
|
|
|
10.
|
|
[1]
|
Hydraulic motor
|
|
|
11.
|
PJ7417237
|
[4]
|
Washer
|
|
|
12.
|
PJ7417236
|
[4]
|
Washer
|
|
|
13.
|
PJ7417225
|
[2]
|
Seg Retainer
|
|
|
14.
|
PJ7417231
|
[1]
|
Cover
|
|
|
15.
|
PJ7417240
|
[4]
|
Pinion
|
|
|
16.
|
PJ7417232
|
[4]
|
Bushing
|
|
|
17.
|
VOE15092661
|
[1]
|
Snap ring
|
|
|
18.
|
PJ7417233
|
[1]
|
Washer
|
|
|
19.
|
PJ7417238
|
[1]
|
Spacer
|
|
|
20.
|
VOE15092707
|
[92]
|
Needle
|
|
|
21.
|
PJ7417228
|
[1]
|
Snap Ring
|
|
|
22.
|
PJ7417260
|
[4]
|
Snap Ring
|
|
|
23.
|
VOE15045609
|
[2]
|
Plug
|
|
|
24.
|
PJ7415927
|
[1]
|
Plug
|
|
|
25.
|
PJ7414585
|
[2]
|
Plug
|
|
|
26.
|
PJ7417248
|
[1]
|
Planet Gear
|
S/N - 281.10304
|
|
26.
|
PJ7417757
|
[1]
|
Planet Gear
|
S/N 281.10305 -
|
|
27.
|
PJ7417241
|
[1]
|
Pinion
|
|
|
28.
|
PJ7414632
|
[1]
|
Snap Ring
|
|
|
29.
|
PJ7414631
|
[3]
|
Snap Ring
|
|
|
30.
|
VOE11713047
|
[48]
|
Needle bearing
|
|
|
31.
|
PJ7417371
|
[1]
|
Gear
|
S/N - 281.10304
|
|
31.
|
PJ7417755
|
[1]
|
Pinion shaft
|
S/N 281.10305 -
|
|
100.
|
PJ7417249
|
[1]
|
O-ring kit
|
KIT
|
