VOLVO Travel bearing SA14599923 for EC300D

VOLVO excavator travel gearbox bearing SA14599923

SA14599923 Ball bearing Volvo.Heavy parts fit: EC300D, EC250D,EC250E,EC300E.




VOLVO excavator travel bearing SA14599923

P/N

SA14599923

Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Angular contact bearing

Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

Production Process






Product Photos

SA14599923VOLVO SA14599923Bearing SA14599923

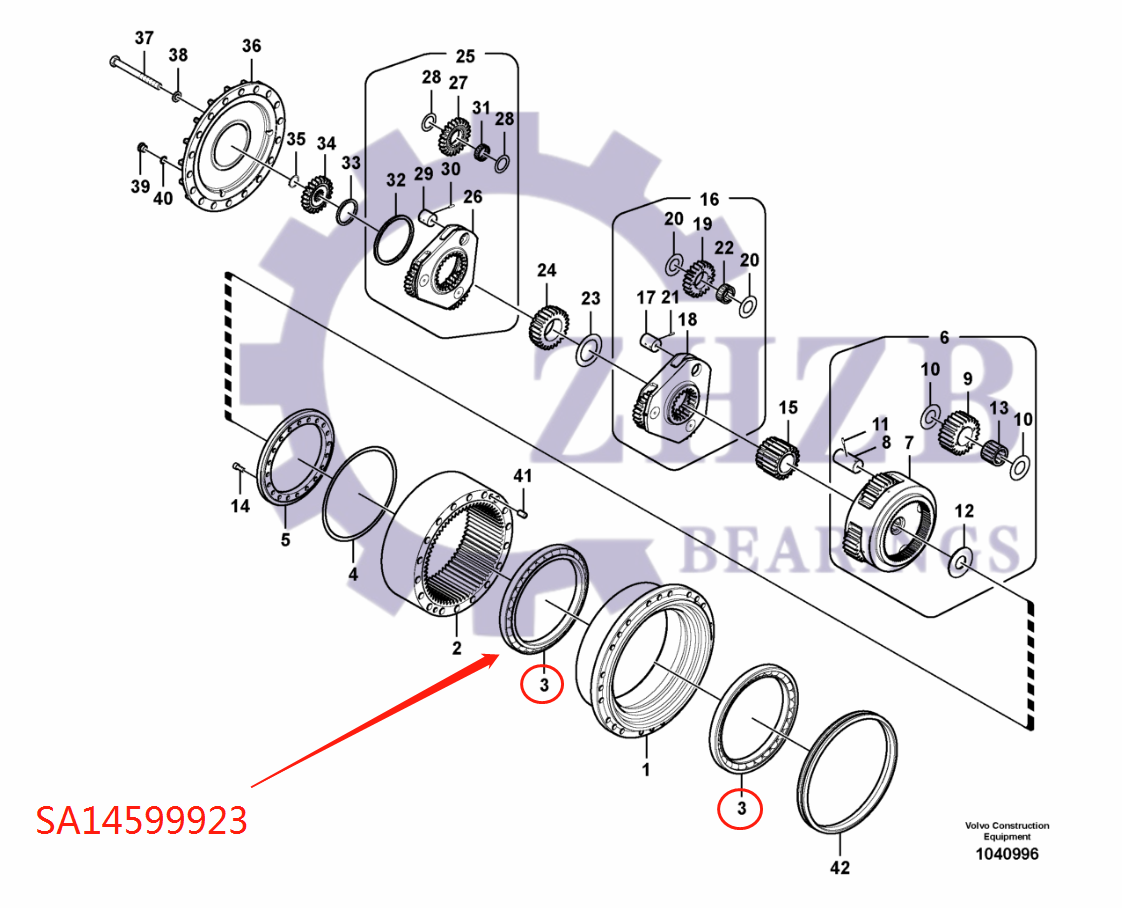

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

VOLVO PARTS

Pos.

Part No

Qty

Parts name

Comments



  VOE14599921

  [1]

  Travel gearbox



1.

  VOE14599922

  [1]

  Housing



2.

  VOE14599932

  [1]

  Gear



3.

  SA14599923

  [2]

  Bearing



4.

  VOE14599927

  [1]

  Shim

  THICK = 0,6 MM

4.

  VOE14599928

  [1]

  Shim

  THICK = 0,8 MM

4.

  VOE14599929

  [1]

  Shim

  THICK = 1,0 MM

4.

  VOE14599930

  [1]

  Shim

  THICK = 0,7 MM

4.

  VOE14599931

  [1]

  Shim

  THICK = 0,9 MM

4.

  VOE14607977

  [1]

  Shim

  THICK = 1,1 MM

5.

  VOE14599926

  [1]

  Retainer



6.

  VOE14599933

  [1]

  Planet carrier



7.

  None14599934

  [1]

  Carrier



8.

  VOE14566415

  [4]

  Pin



9.

  VOE14599935

  [4]

  Planetary Gear



10.

  VOE14566414

  [8]

  Washer



11.

  SA9325-06012

  [4]

  Spring pin



12.

  SA1036-00300

  [1]

  Ring



13.

  VOE14566412

  [4]

  Needle bearing



14.

  VOE983919

  [16]

  Hex. socket screw



15.

  VOE14599938

  [1]

  Gear



16.

  VOE14599939

  [0001]

  Planet carrier



17.

  VOE14599944

  [3]

  Pin



18.

  None14599940

  [1]

  Carrier



19.

  VOE14599941

  [3]

  Planetary Gear



20.

  VOE14599943

  [6]

  Washer



21.

  SA9325-06012

  [3]

  Spring pin



22.

  VOE14599942

  [3]

  Needle Bearing



23.

  VOE14566433

  [1]

  Thrust washer



24.

  VOE14599945

  [1]

  Gear



25.

  VOE14599946

  [1]

  Planet carrier



26.

  None14599947

  [1]

  Carrier



27.

  VOE14599948

  [3]

  Planetary Gear



28.

  VOE14599950

  [6]

  Washer



29.

  VOE14599951

  [3]

  Pin



30.

  VOE951955

  [3]

  Spring pin



31.

  VOE14599949

  [3]

  Needle Bearing



32.

  VOE14569232

  [1]

  Ring



33.

  VOE14566417

  [1]

  Ring



34.

  VOE14599952

  [1]

  Gear



35.

  VOE9541-01038

  [1]

  Snap Ring



36.

  VOE14599953

  [1]

  Cover



37.

  VOE982211

  [18]

  Hexagon screw



38.

  SA9213-20000

  [18]

  Spring washer



39.

  VOE14883847

  [2]

  Plug



40.

  VOE990557

  [2]

  O-ring



41.

  VOE9324-21617

  [4]

  Pin



42.

  VOE14599925

  [1]

  Seal
