VOLVO excavator travel bearing VOE14556703
|
P/N
|
VOE14556703
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Angular contact bearings
|
Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience
Production Process
Product Photos

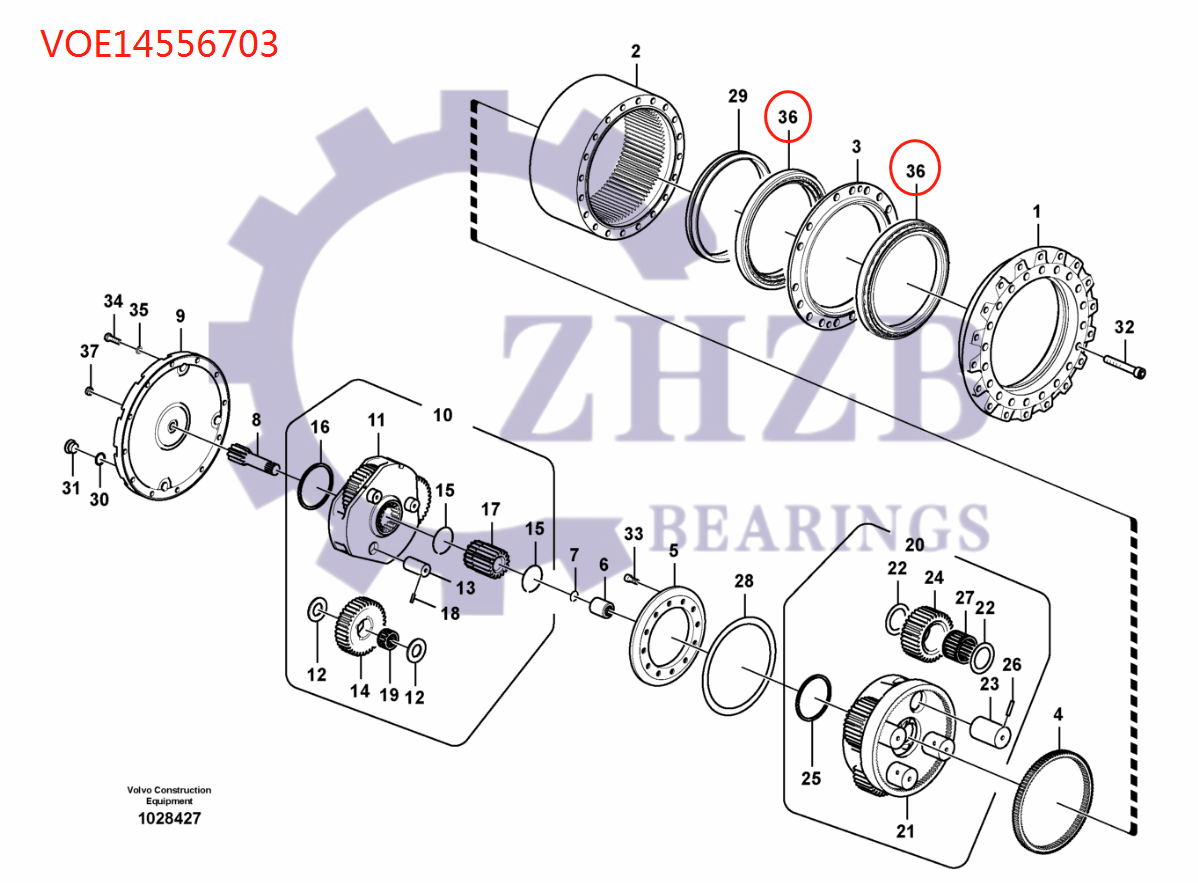

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
|
VOE14621718
|
|
Travel gearbox
|
|
|
|
VOE14621718
|
[1]
|
Travel gearbox
|
S/N -230428/ -240159 S/N -270667
|
|
|
VOE14693059
|
[1]
|
Travel gearbox
|
S/N 270668-270930 S/N 280027-280308
|
|
|
VOE14735901
|
[1]
|
Travel gearbox
|
S/N 270931-/ 280309-
|
|
1.
|
VOE14505739
|
|
Housing
|
|
|
|
VOE14505739
|
[1]
|
Housing
|
S/N -230428/ -240159 S/N -270667
|
|
|
VOE14693060
|
[1]
|
Housing
|
S/N 230429-/ 240160- S/N 270668
|
|
2.
|
VOE14621719
|
[1]
|
Gear
|
|
|
3.
|
VOE14505742
|
[1]
|
Seal
|
|
|
4.
|
VOE14505744
|
[1]
|
Gear
|
|
|
5.
|
VOE14505745
|
[1]
|
Retainer
|
|
|
6.
|
VOE14575734
|
[1]
|
Flexible coupling
|
|
|
7.
|
VOE14506421
|
[1]
|
Ring retainer
|
|
|
8.
|
VOE14575733
|
[1]
|
Gear
|
|
|
9.
|
VOE14621720
|
[1]
|
Cover
|
|
|
10.
|
VOE14505737
|
[1]
|
Planet carrier
|
|
|
11.
|
VOE14505751
|
[1]
|
Planet carrier
|
|
|
12.
|
VOE14505756
|
[6]
|
Washer
|
|
|
13.
|
VOE14505757
|
[3]
|
Pin
|
|
|
14.
|
VOE14505755
|
[3]
|
Planetary gear
|
|
|
15.
|
VOE14505754
|
[2]
|
Ring retainer
|
|
|
16.
|
VOE14505753
|
[1]
|
Ring
|
|
|
17.
|
VOE14505752
|
[1]
|
Gear
|
|
|
18.
|
SA9325-06012
|
[3]
|
Spring pin
|
|
|
19.
|
SA7117-30320
|
[3]
|
Needle bearing
|
|
|
20.
|
VOE14505738
|
[1]
|
Planet carrier
|
|
|
21.
|
VOE14505746
|
[1]
|
Planet carrier
|
|
|
22.
|
VOE14505748
|
[8]
|
Washer
|
|
|
23.
|
VOE14505749
|
[4]
|
Pin
|
|
|
24.
|
VOE14505747
|
[4]
|
Planetary gear
|
|
|
25.
|
VOE14505753
|
[1]
|
Ring
|
|
|
26.
|
VOE951993
|
[4]
|
Spring pin
|
|
|
27.
|
SA7117-38520
|
[4]
|
Needle bearing
|
|
|
28.
|
VOE14507345
|
[1]
|
Shim
|
THICK = 1 MM
|
|
28.
|
VOE14507346
|
[1]
|
Shim
|
THICK = 0,7 MM
|
|
28.
|
VOE14507347
|
[1]
|
Shim
|
THICK = 0,5 MM
|
|
28.
|
VOE14507348
|
[1]
|
Shim
|
THICK = 0,1 MM
|
|
29.
|
VOE14505743
|
[1]
|
Seal
|
S/N 230001-/ 240001- S/N -270930
|
|
29.
|
VOE14565060
|
[1]
|
Seal
|
S/N 270931-/ 280309-
|
|
29.
|
VOE14505743
|
|
Seal
|
|
|
30.
|
VOE983524
|
[2]
|
O-ring
|
|
|
31.
|
VOE14577793
|
[2]
|
Plug
|
|
|
32.
|
VOE984370
|
[20]
|
Hex. socket screw
|
|
|
33.
|
VOE983919
|
[12]
|
Hex. socket screw
|
|
|
34.
|
VOE997963
|
[20]
|
Hexagon screw
|
|
|
35.
|
VOE955926
|
[20]
|
Spring washer
|
S/N 230001-/ 240001- S/N -270930
|
|
35.
|
VOE60110237
|
[20]
|
Washer
|
S/N 270931-/ 280309-
|
|
35.
|
VOE955926
|
|
Spring washer
|
|
|
36.
|
VOE14556703
|
[2]
|
Bearing
|
|
|
37.
|
SA7117-15230
|
[1]
|
Pad
|
|
