VOLVO Travel bearing VOE14693033,VOE 14693033 for EC200E

VOLVO excavator travel gearbox bearing VOE14693033

VOE14693033 Ball bearing Volvo.Heavy parts fit: EC200D,EC200E.



VOLVO excavator travel bearing VOE14693033

P/N

VOE14693033

Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Angular contact bearings

Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

Production Process






Product Photos

VOE14693033VOLVO VOE14693033Bearing VOE14693033

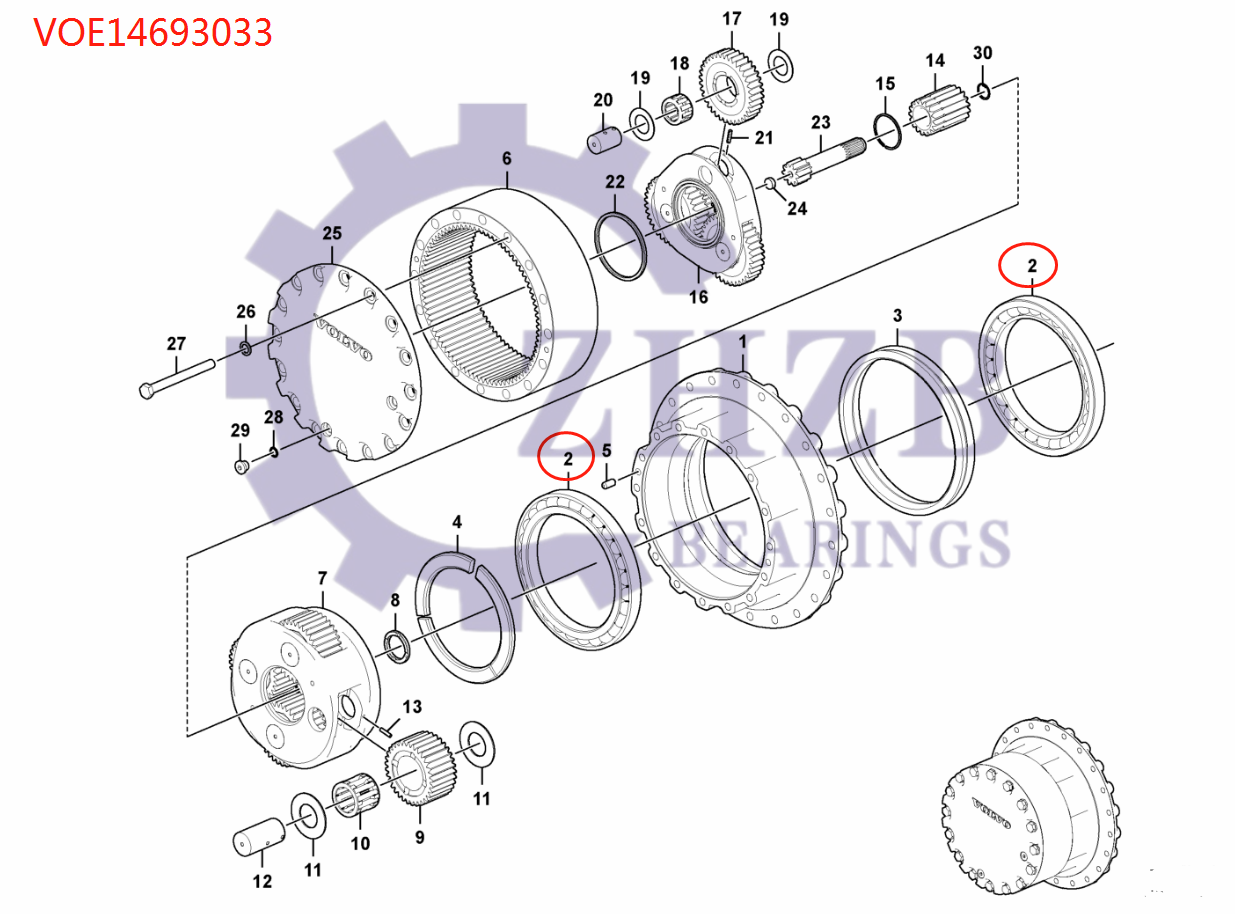

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

VOLVO PARTS

Pos.

Part No

Qty

Parts name

Comments



  VOE14713821

  [2]

  Travel gearbox



1.

  VOE14713822

  [1]

  Housing



2.

  VOE14693033

  [2]

  Bearing



3.

  VOE14713823

  [1]

  Seal





  VOE14730966

  [2]

  Sealing ring





  VOE14730967

  [2]

  O-ring



4.

  VOE14712551

  [3]

  Collar

  THICK = 10,8 mm

4.

  VOE14726582

  [3]

  Collar

  THICK = 10,9 mm

4.

  VOE14726583

  [3]

  Collar

  THICK = 11,0 mm

4.

  VOE14726584

  [3]

  Collar

  THICK = 11,1mm

4.

  VOE14726585

  [3]

  Collar

  THICK = 11,2 mm

4.

  VOE14726586

  [3]

  Collar

  THICK = 11,3 mm

4.

  VOE14732107

  [3]

  Collar

  THICK = 11,4 mm

5.

  SA9324-21212

  [2]

  Pin



6.

  VOE14713825

  [1]

  Gear





  VOE14713826

  [1]

  Planet carrier



7.

  VOE14713827

  [1]

  Planet carrier



8.

  SA1036-00290

  [1]

  Thrust ring



9.

  VOE14713828

  [4]

  Gear



10.

  VOE14713829

  [4]

  Needle roller bearing



11.

  VOE14718296

  [8]

  Thrust washer



12.

  VOE14713830

  [4]

  Pin



13.

  SA9325-06012

  [4]

  Spring pin



14.

  VOE14713831

  [1]

  Gear



15.

  VOE948341

  [1]

  Snap ring





  VOE14713832

  [1]

  Planet carrier



16.

  VOE14713833

  [1]

  Planet carrier



17.

  VOE14713834

  [3]

  Gear



18.

  VOE14713835

  [3]

  Needle roller bearing



19.

  VOE14713836

  [6]

  Thrust washer



20.

  VOE14713837

  [3]

  Pin



21.

  SA9325-06012

  [3]

  Spring pin



22.

  VOE14505753

  [1]

  Ring



23.

  VOE14713838

  [1]

  Gear



24.

  SA7117-15230

  [1]

  Pad



25.

  VOE14713839

  [1]

  Cover



26.

  VOE60113872

  [16]

  Plain washer



27.

  VOE997473

  [16]

  Hexagon screw



28.

  VOE983505

  [2]

  O-ring



29.

  VOE14577793

  [2]

  Plug



30.

  VOE914515

  [1]

  Retaining ring
