VOLVO VOE14506955 for EC250D

VOE14506955 bearings are used in the final drive motor Bearing system of VOLVO heavy machinery equipment：

VOE14506955 BEARING Volvo parts


VOE14506955 Bearing Volvo.Heavy parts EC235C, EC240B, EC240C, EC250D, EC250E, EC290, EC290B, EC290C, EC300D, EC300E, EC330B, EC330C, EC340D, EC350D, EC350E, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC380E, EC380EHR, ECR305C





Facebook Twitter Pinterest LinkedIn 分享

VOLVO excavator final drive bearing VOE14506955

P/N

VOE14506955

Material:
 GCR15
i/d mm
 O/D
 mm
H mm
 Brand： ZHZB
Precision
 P0 , P6 , P5
 Structure:
 Needle bearing


Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

Production Process




Product Photos

VOE14506955VOLVO VOE14506955Bearing VOE14506955

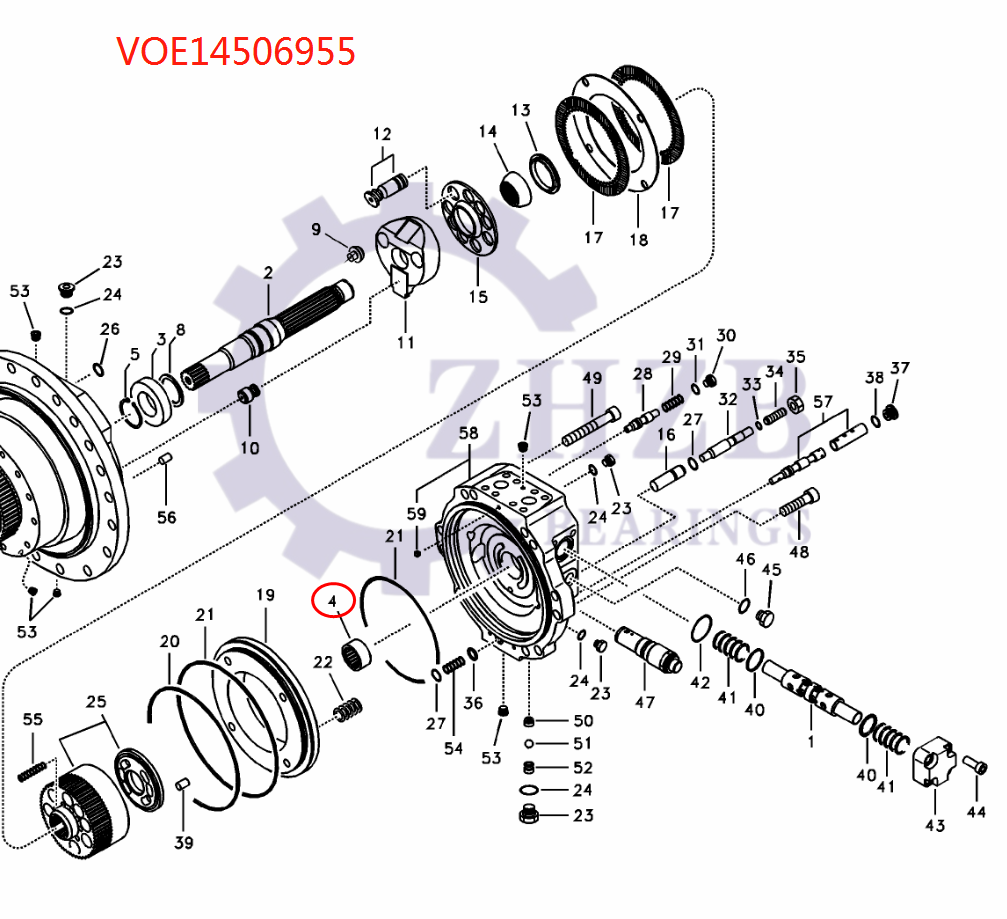

Any other parts for the final drive gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

HITACHI PARTS



Pos.

Part No

Qty

Parts name

Comments



  VOE14528281

  [1]

  Travel motor



1.

  VOE14506950

  [1]

  Spool



2.

  VOE14506954

  [1]

  Shaft



3.

  VOE14640025

  [1]

  Roller bearing



4.

  VOE14506955

  [1]

  Bearing



5.

  VOE914472

  [1]

  Snap ring



6.

  VOE14528283

  [1]

  Casing



7.

  SA7242-10590

  [1]

  Seal



8.

  SA9541-02090

  [1]

  Retaining ring



9.

  VOE14506958

  [2]

  Pivot



10.

  VOE14506959

  [1]

  Piston



11.

  VOE14508608

  [1]

  Plate



12.

  VOE14506974

  [9]

  Piston



13.

  VOE14506968

  [1]

  Spacer



14.

  VOE14506970

  [1]

  Guide



15.

  VOE14506972

  [1]

  Plate



16.

  VOE14506980

  [1]

  Pin



17.

  VOE14506982

  [2]

  Plate



18.

  VOE14506984

  [1]

  Plate



19.

  VOE14506986

  [1]

  Piston



20.

  VOE14529784

  [1]

  O-ring



21.

  VOE990849

  [2]

  O-ring



22.

  VOE14565167

  [10]

  Spring



23.

  VOE14883837

  [7]

  Plug



24.

  VOE983502

  [7]

  O-ring



25.

  VOE14552644

  [1]

  Cylinder



26.

  VOE983497

  [2]

  O-ring



27.

  VOE983507

  [2]

  O-ring



28.

  VOE14506993

  [1]

  Spool



29.

  VOE14506994

  [1]

  Spring



30.

  VOE14506995

  [1]

  Plug



31.

  VOE983505

  [1]

  O-ring



32.

  SA7242-10680

  [1]

  Piston rod



33.

  SA9511-1210A

  [1]

  O-ring



34.

  VOE14528296

  [1]

  Screw



35.

  VOE997410

  [1]

  Hexagon nut



36.

  VOE14507000

  [1]

  Spacer



37.

  SA7242-11290

  [1]

  Plug



38.

  VOE983509

  [1]

  O-ring



39.

  SA7242-10560

  [1]

  Pin



40.

  SA7242-10520

  [2]

  Washer



41.

  SA7242-10530

  [2]

  Spring



42.

  VOE990585

  [2]

  O-ring



43.

  SA7242-10540

  [2]

  Cover



44.

  SA9016-11209

  [8]

  Hex. socket screw



45.

  SA9415-11041

  [2]

  Plug



46.

  VOE990557

  [2]

  O-ring



47.

  SA7242-11580

  [2]

  Relief valve



48.

  SA9016-12010

  [4]

  Hex. socket screw



49.

  SA9016-22019

  [2]

  Hex. socket screw



50.

  SA7242-10710

  [2]

  Clamping plate



51.

  VOE14880998

  [2]

  Ball



52.

  SA7242-10720

  [2]

  Guard



53.

  VOE14560637

  [9]

  Plug



54.

  SA7242-11560

  [1]

  Spring



55.

  VOE14506967

  [9]

  Spring



56.

  VOE14551526

  [5]

  Pin



57.

  VOE14509997

  [1]

  Spool



58.

  VOE14529840

  [1]

  Casing



59.

  SA7242-10750

  [1]

  Screw



100.

  VOE14513325

  [1]

  Sealing Kit
