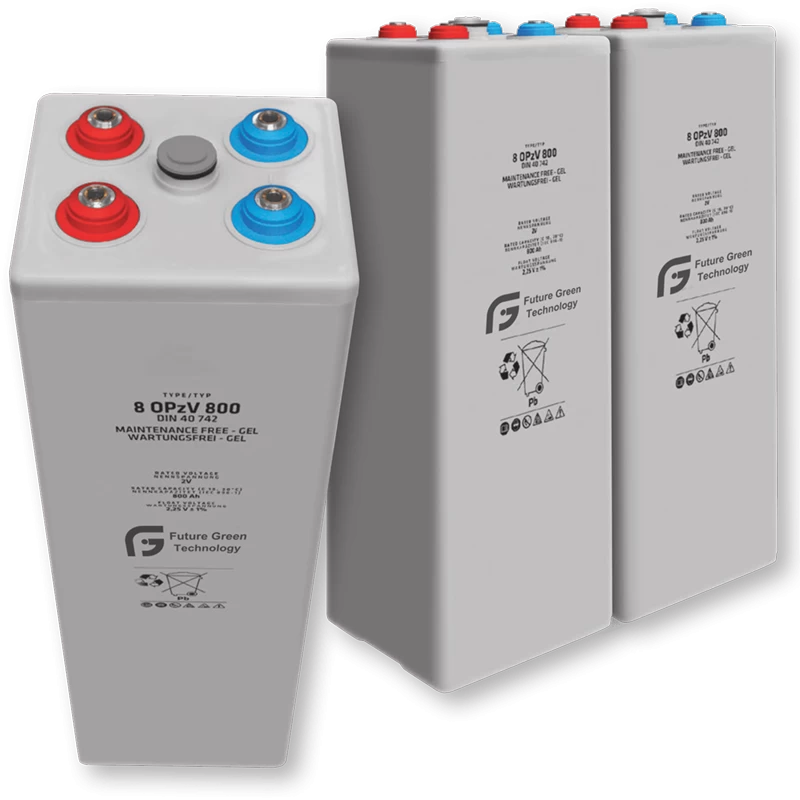

OPzV Tubular Gel Batteries
OPzV batteries are sealed lead acid based.
They have gelled electrolytes and tubular positive plates, which work together
to deliver a superior cycle count. OPzV batteries are maintenance free and
spill-proof, just like all other VRLA batteries. However, one of the most
important differences between OPzV and other lead acid batteries is that, OPzV
technology utilizes a very high design life of 20 years. This is thanks to
the unique battery construction, which is enhanced with a positive tubular
plate and a higher lead density. Other lead acid batteries are designed with
flat plates, which deliver a good cycle count, but not nearly close to the
cycle counts offered by OPzV. This makes them ideal for applications requiring
reliable batteries that deliver many years of maintenance-free and
headache-free operations.
OPzV Tubular Gel Batteries Features
High capacity density and cyclic
performance
Fast recharging
Designed by FGET and tested to IEC 60
896-21
Robust tubular positive electrode design,
compliant with DIN 40742
>1500 cycles according to IEC 60 896-21
IEC 61427 solar compliant
Reliable maintenance-free and leakage-free
construction
Low self-discharge <2% @ 20ºC (68ºF)
allows for 24 months shelf life
Operating temperature -20°C to +45°C (-4ºF
to +113ºF)
20 year float life @ 20ºC (68ºF)
EUROBAT design life definition: Very Long
Life (12+ years)
OPzV Batteries- Tubular Gel - 2 Volts:
|
Model
|
Voltage
|
Capacity
|
Dimensions (mm)
|
Total
|
Weight
|
Terminal
|
|
|
(V)
|
(Ah)
|
Length
|
Width
|
Height
|
Height
|
(Kg)
|
|
|
CZV200-2
|
2
|
200
|
103
|
206
|
355
|
390
|
18
|
T11
|
|
CZV250-2
|
2
|
250
|
124
|
206
|
354
|
390
|
22
|
T11
|
|
CZV300-2
|
2
|
300
|
145
|
206
|
355
|
390
|
26
|
T11
|
|
CZV350-2
|
2
|
350
|
124
|
206
|
471
|
506
|
29
|
T11
|
|
CZV420-2
|
2
|
420
|
145
|
206
|
471
|
506
|
34
|
T11
|
|
CZV490-2
|
2
|
490
|
166
|
206
|
471
|
506
|
39
|
T11
|
|
CZV500-2
|
2
|
500
|
166
|
206
|
471
|
506
|
35.5
|
T11
|
|
CZV600-2
|
2
|
600
|
145
|
206
|
646
|
681
|
46
|
T11
|
|
CZV800-2
|
2
|
800
|
191
|
210
|
646
|
681
|
64.5
|
T11
|
|
CZV1000-2
|
2
|
1000
|
233
|
210
|
646
|
681
|
78.5
|
T11
|
|
CZV1200-2
|
2
|
1200
|
275
|
210
|
646
|
681
|
93
|
T11
|
|
CZV1500-2
|
2
|
1460
|
275
|
210
|
796
|
831
|
115
|
T11
|
|
CZV2000-2
|
2
|
2000
|
399
|
210
|
772
|
807
|
155
|
T11
|
|
CZV2500-2
|
2
|
2500
|
487
|
212
|
772
|
807
|
196
|
T11
|
|
CZV3000-2
|
2
|
3000
|
576
|
212
|
772
|
807
|
232
|
T11
|
|
Work Shop
|
|
View More
|
|
Main Workshop
FGET, it is highly resistant to battery acid, oxidation and heat, and can maintain its shape and strength after prolonged exposure to sever environmental conditions. Customized specifications are available.
|
Battery Charging
In the fully charged state, the negative plate consists of lead, and the positive plate lead dioxide, with the electrolyte of concentrated sulfuric acid.
|
Produce line
FGET have 3 produce lines for AGM battery from 2V to 12V, GEL battery and OPzV battery.
|
|
Packing & Delivery
|
|
View More
|
|
Carton Packing
20, 10 or 4 pieces in one carton for batteries smaller than 12V24AH,one in one carton for larger batteries.
|
Batteries Layer
Load Lead acid batteries 3-5 layers high with cardboard between each layer, and stretch wrap. Make sure to catch the top of the pallet to help anchor it.
|
20' Container
As Lead Acid batteries are very heavy, we all use fumigation free tray to transport them
|
|
Our Certification
|
|
View More
|
|
Company Certificate
Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market.
|
ISO Certificate
SGS ISO9001 quality management system certificate, ISO14001 environment system certificate
|
MSDS & Transport
Our batteries have UL and CE approvals. MSDS and Report for Safe Transport of Goods.
|
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
-
OEM Welcomed
-
Warranty: 2 Year
-
After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
