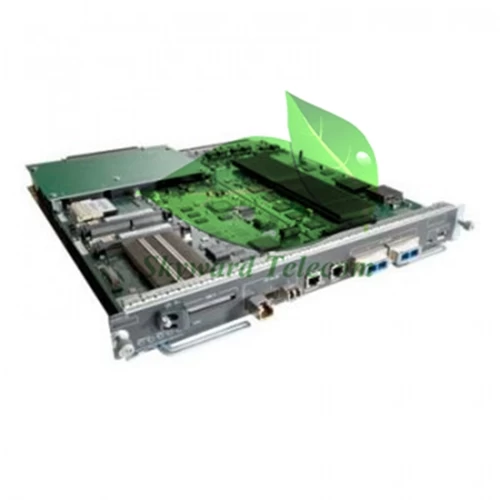

VS-S2T-10G Cat 6500 Sup 2T with 2 x 10GbE and 3 x 1GbE with MSFC5 PFC4

VS-S2T-10G is Cisco Catalyst 6500 Series Supervisor Engine 2T. The Supervisor Engine 2T is designed to deliver higher performance, better scalability, and enhanced hardware-enabled features. Supervisor Engine 2T integrates a high-performance 2-Terabit crossbar switch fabric that enables 80 Gbps switching capacity per slot on all Cisco Catalyst 6500 E-Series Chassis. This VS-S2T-10G is similar with the VS-S2T-10G=. The VS-S2T-10G= is a spare one.

Facebook Twitter Pinterest LinkedIn 分享
VS-S2T-10G Overview


VS-S2T-10G is Cisco Catalyst 6500 Series Supervisor Engine 2T. The Supervisor Engine 2T is designed to deliver higher performance, better scalability, and enhanced hardware-enabled features. Supervisor Engine 2T integrates a high-performance 2-Terabit crossbar switch fabric that enables 80 Gbps switching capacity per slot on all Cisco Catalyst 6500 E-Series Chassis. This VS-S2T-10G is similar with the VS-S2T-10G=. The VS-S2T-10G= is a spare one.


VS-S2T-10G Specification


Brand Cisco
Part number  VS-S2T-10G
Product Description Cat 6500 Sup 2T with 2 x 10GbE and 3 x 1GbE with MSFC5 PFC4
Chassis compatibility  Supported on all Catalyst 6500 E-series chassis and Catalyst 6807-XL chassis
Switch fabric 2.08 Tbps Crossbar Switch Fabric with 26 Fabric Channels
Software compatibility 12.2(50)SY
Uplink ports (PORT 1 through PORT 5) ·Supervisor Engine 2T has five uplink ports:
  ·Two 10GBASE-X ports
  ·Three 1000BASE-X ports
·Each uplink port has a link LED associated with it.
Console ports One console port (RJ-45)
Compact Flash 1GB
DRAM  2GB for Lite and XL (4GB upgrade with 2GB memory upgrade (2+2)
NVRAM 4 MB
switching capacity up to 80 Gbps per slot of switching capacity on E-Series chassis
Routes 256K(IPv4)
128K (IPv6)
Netflow entries 512K
Layer-3 classification and marking access control entries (ACEs) 64K shared for QOS / Security
Layer 2 rate limiters 20 ingress/6 egress
Security ACL entries 64K shared for QOS / Security
Power requirement (at 42 VDC) 10.36 A
Dimensions (H x W x D) 4.4 x 36.6 x 40.6 cm. Occupies one slot in the chassis
Weight 5.44 kg
Warranty One year
Lead time 2-3 business days
Shipment DHL, Fedex, Aramex, EMS or per request
