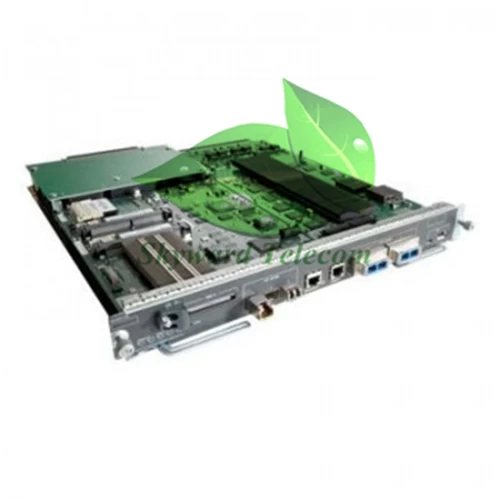

VS-S2T-10G-XL Overview
VS-S2T-10G-XL is Cisco Catalyst 6500 Series Supervisor Engine 2T XL. The Supervisor Engine 2T is designed to deliver higher performance, better scalability, and enhanced hardware-enabled features. Supervisor Engine 2T integrates a high-performance 2-Terabit crossbar switch fabric that enables 80 Gbps switching capacity per slot on all Cisco Catalyst 6500 E-Series Chassis. This VS-S2T-10G-XL is similar with the VS-S2T-10G-XL=. The VS-S2T-10G-XL= is a spare one.
VS-S2T-10G-XL Specification
|
Brand
|
Cisco
|
|
Part
number
|
VS-S2T-10G-XL
|
|
Product
Description
|
Cat 6500 Sup 2T with 2x10GbE and
3 x 1GbE with MSFC5 PFC4XL
|
|
Chassis
compatibility
|
Supported
on all Catalyst 6500 E-series chassis and Catalyst 6807-XL chassis
|
|
Switch fabric
|
2.08 Tbps
Crossbar Switch Fabric with 26 Fabric Channels
|
|
Software compatibility
|
12.2(50)SY
|
|
Uplink ports (PORT 1 through PORT 5)
|
·Five
uplink ports:
|
|
·Two 10GBASE-X ports
|
|
·Three 1000BASE-X ports
|
|
·Each
uplink port has a link LED associated with it.
|
|
Console ports
|
One
console port (RJ-45)
|
|
Compact Flash
|
1GB
|
|
DRAM
|
2GB
for Lite and XL (4GB upgrade with 2GB memory upgrade (2+2)
|
|
NVRAM
|
4 MB
|
|
switching capacity
|
up to 80
Gbps per slot of switching capacity on E-Series chassis
|
|
Routes
|
1024K
(IPv4)
|
|
512K
(IPv6)
|
|
Netflow entries
|
512K
|
|
Layer-3 classification and marking access control
entries (ACEs)
|
256K
shared for QOS/Security
|
|
Layer 2 rate limiters
|
20
ingress/6 egress
|
|
Security ACL entries
|
256K
shared for QOS/Security
|
|
Power requirement (at 42 VDC)
|
10.71 A
|
|
Dimensions (H x W x D)
|
4.4 x
36.6 x 40.6 cm. Occupies one slot in the chassis
|
|
Weight
|
5.44 kg
|
|
Warranty
|
One year
|
|
Lead
time
|
2-3 business days
|
|
Shipment
|
DHL, Fedex, Aramex, EMS or per
request
|
